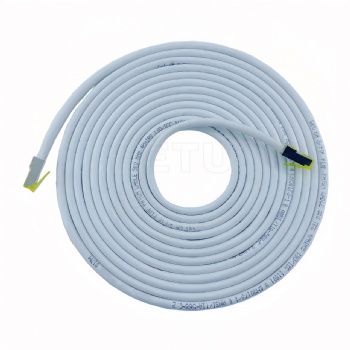

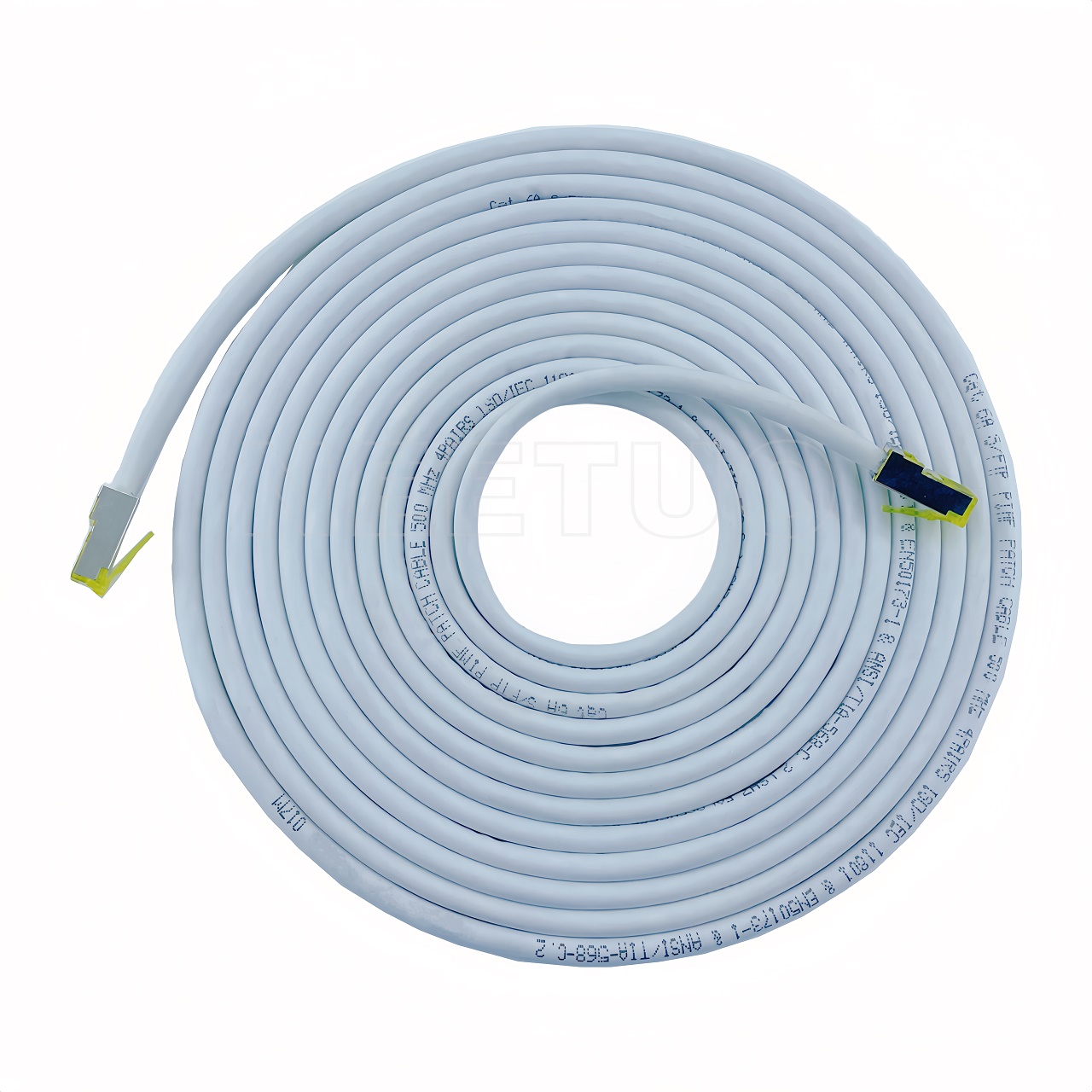

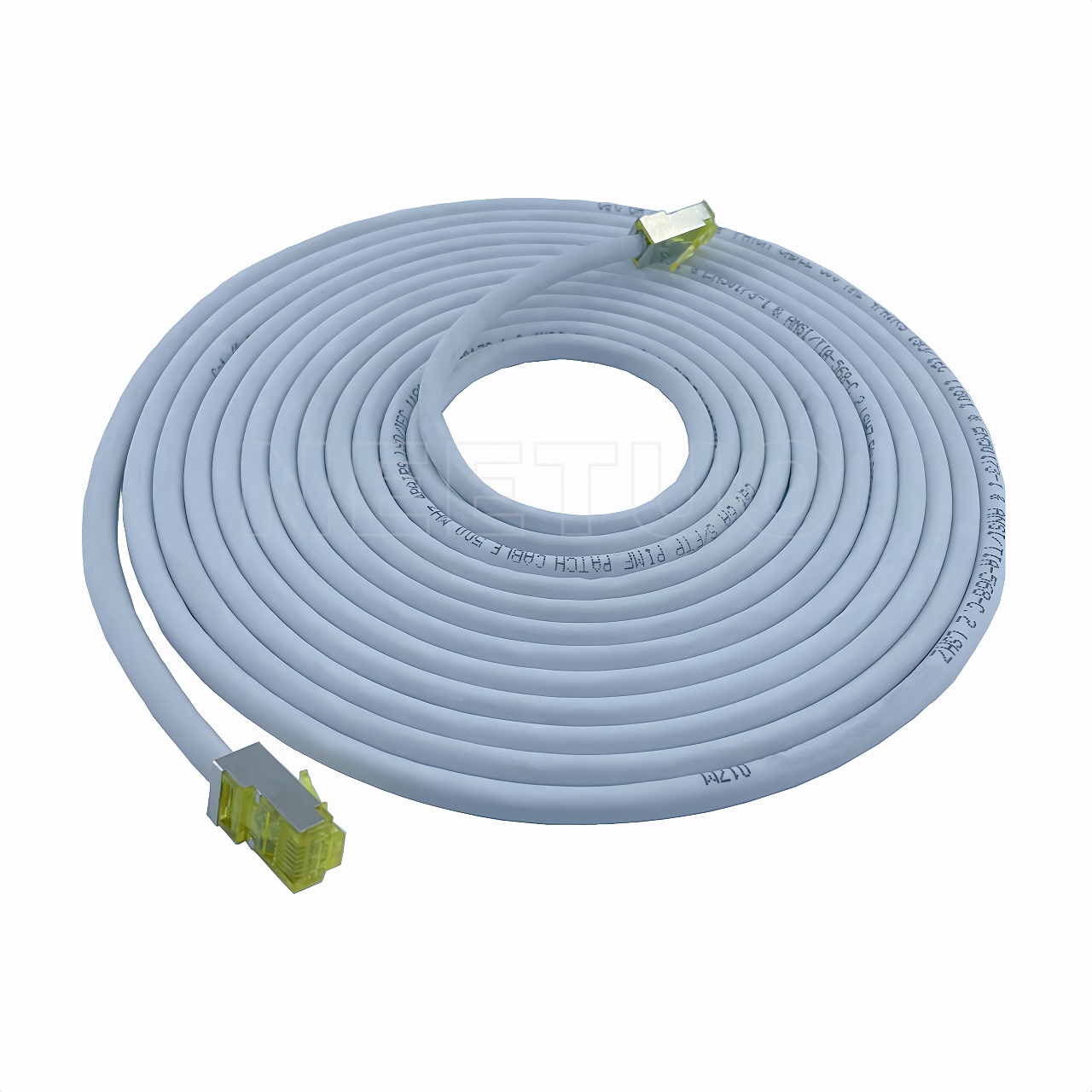

CAT6a SFTP Patch Cable Snagless Molded Boot 26AWG Pure Copper

NEETUO premium CAT6a SFTP Patch Cable is made of 26AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Overview

NEETUO premium CAT6a SFTP Patch Cable is made of 26AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Features:

Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards

Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Performance Tested with Fluke and Wired T568B

SFTP Cable Minimizes EMI and RFI Interference

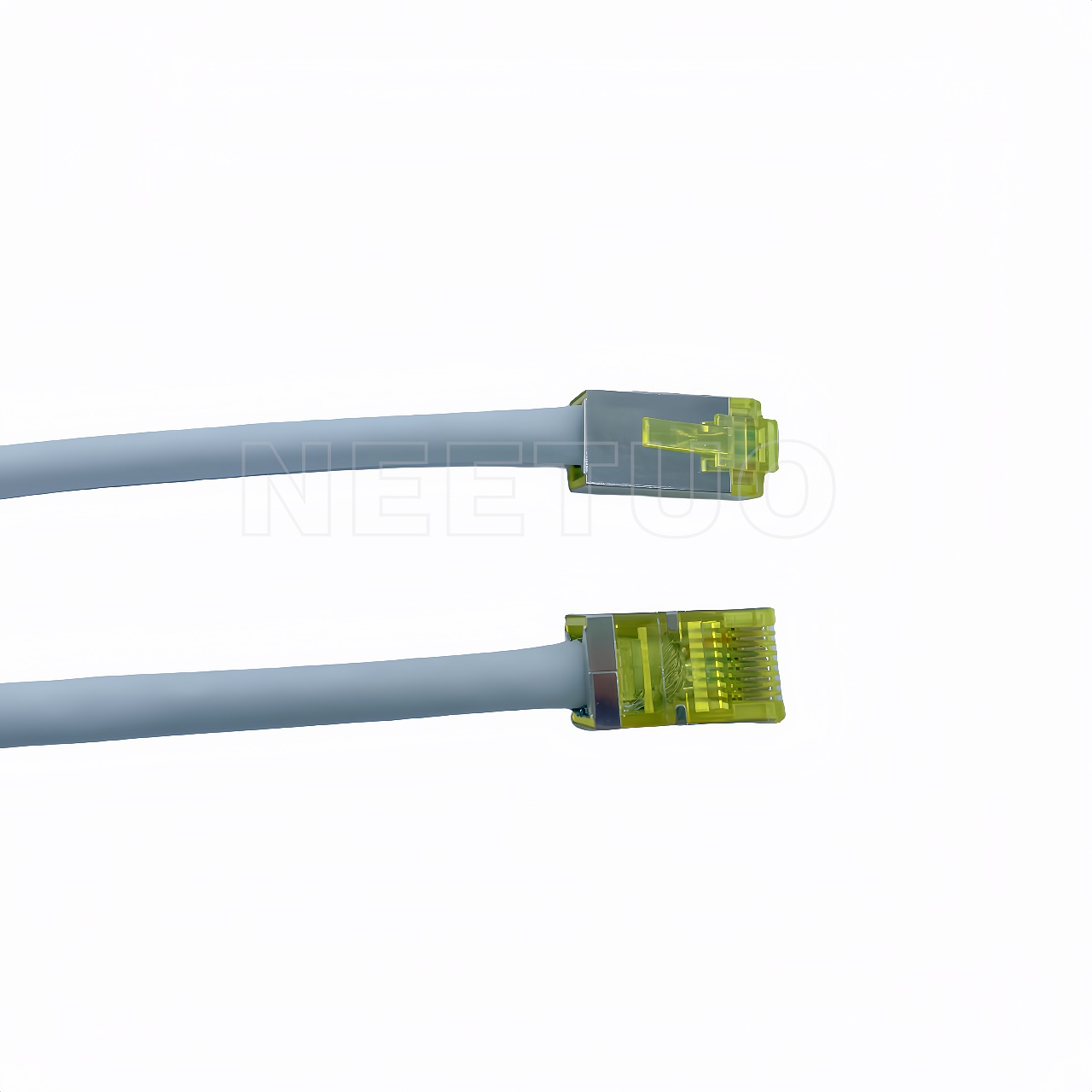

Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Provide superior electromagnetic interference protection and Maintain signal integrity over long distances

Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center

 Specification:

印字Printing Mark

NEETUO LAN   CABLE CAT6a S/FTP 26AWG Stranded COPPER TIA/EIA568.B  xx/xx/xxxx     xxxxm

规格Category

CAT6a

屏蔽类型Shielding

双屏蔽SFTP

导体Conductor

26AWG多股 纯铜 26AWG Stranded Pure Copper

绝缘Insulation

HDPE

地线Grouding Wire

纯铜/铝镁合金丝  Copper/Al-Mg Alloy Wire

撕裂线Rip Cord

Polymeter

护套Jacket

PVC CM(圆形Round

外径OD

5.8mm±0.2

接头Connector

RJ45水晶头注塑RJ45 Crystal Molded Boot 50μ''

线序Wire Scheme

T568B,Straight

Operation   Temperature

-20 to +75°C

Installation   Temperature

-10 to +50°C

Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)

Compliant Network Standards:

10BASE-T                 100BASE-TX             100BASE-T4

1000BASE-T             5GBASE-T                 10GBASE-T

ATM-25                    ATM-51                    ATM-155

100VG-AnyLan         TR-4                          TR-16 Active

TR-16 Passive



Packing demo:





Network Patch Cord samples photos:


Sample photos 小 JPEG.jpg
