CAT6A F/UTP 23AWG Pure Copper PVC/LSZH

Part#: NT- LANCAT6AFTP-23CU-PVC Part#: NT- LANCAT6AFTP-23CU-LSZH Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The frequence bandwidth is up to 500Mzh, transmission speed is up to 10 Gigabit.

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568,  however,Neetuo is not UL listed, we didn’t pay for the certification.


Product Brief Introduction:

Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, it was developed to achieve maximum distance of 100 meters for full 10-Gigabit network speeds. This robust spec will afford you the extra headroom across your network that Cat6 can not. The 500 Mhz performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. The extra performance is ideal for Power over Ethernet (PoE) and Voice Over Internet Protocol (VoIP) applications where data loss is audibly and visually seen and heard. The latest draft declares a new measurement for Power-Sum Alien Crosstalk to ensure neighboring pairs do not cause disturbance to the other cables. The cable center isolator maintains strict pair separation optimizing NEXT performance.



Neetuo Cat6a bulk cable tested for compliance with all ANSI/TIA-568.2-D Category 6a specifications.All materials are RoHS compliant, we can offer the CAT6A cables with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.


Printing Mark

NEETUO LAN CABLE CAT6A F/UTP 23AWG COPPER

Packing

305m in roll in easy-pull box or in drum



Standard:

ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568

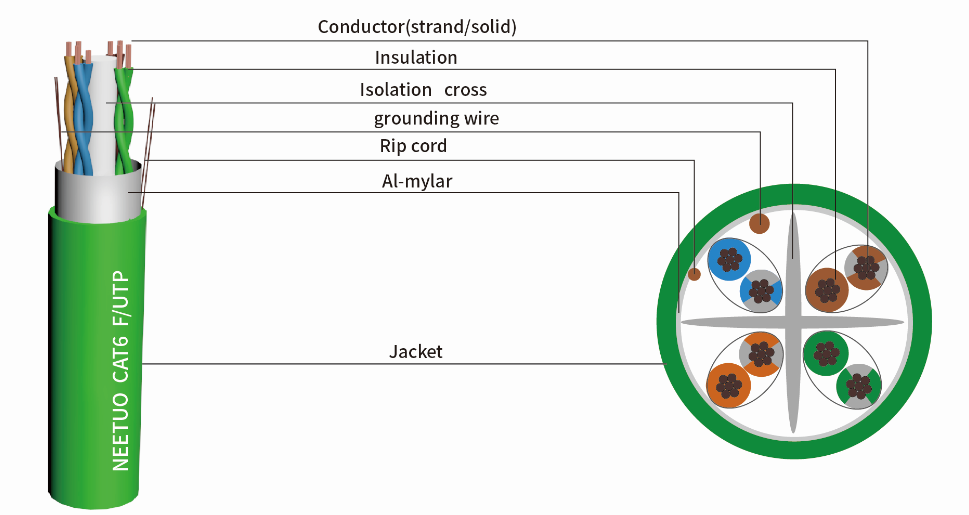

Construction

Conductor

Conductor   material

Oxgen free copper (99.97%   purity)

Conductor   structure

Solid 0.575mm±0.02mm

Insulation

Insulation   material

HDPE

Average   insulation thickness

0.22

Insulation   OD     ±0.0mm

0.98

Color

(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)

Grounding Wire

Material

Oxgen free copper (99.97% purity)

Size

0.45

Shielding

Pair   shielding

/

Overall   Foil

Al-mylar

Braiding

/

Rip Cord

Material

Polymeter

Size

500D

Sheath

Sheath material

PVC

Average   thickness of sheath

1.0mm

Overall outer diameter

6.8mm±0.2mm

Color

Differrent colores are available

Electrical Characteristics

SingleConductor resistance

9.38Ω/100m

Min Insulation Resistance

5000MΩ.KM

Max DCR Unbulance

3%

Max Mutual Capacitance

5.8PF/M

Max Capacitance Unbalance

30 PF/100M

Characteristic   Impedance@1-100MHZ

100±Ω

Max Propagation delay skew

18NS/100M

Max DC ResistanceUnbalance

2%(pair intra),4%(pair inter)

Dielectric Strength

No breakdown with 1kv DC for 1min

Rated voltage

30V

Withstand voltage

500V

Temperature

80

Mechanical

Tensile strength

Jacket17MPaInsulation16MPa

Elongation at Break

Sheath150%,Insulation300%

Installation Bending Radius

>8times of OD

Conductor Elongation at   Break

10%

Transmission

Characteristics Impedance

100±15Ω

Near End Cross Talk

≥34.82dB/500 m@500MHZ

Max Attenuation

≤42.7dB/500 m@500MHZ

Return Lose

≥17.3dB/500 m@500MHZ

Temperature

Operation Temperature

-20 to + 60

Installation Temperature

0 to + 50

Storage Temperature

-10 to + 40
