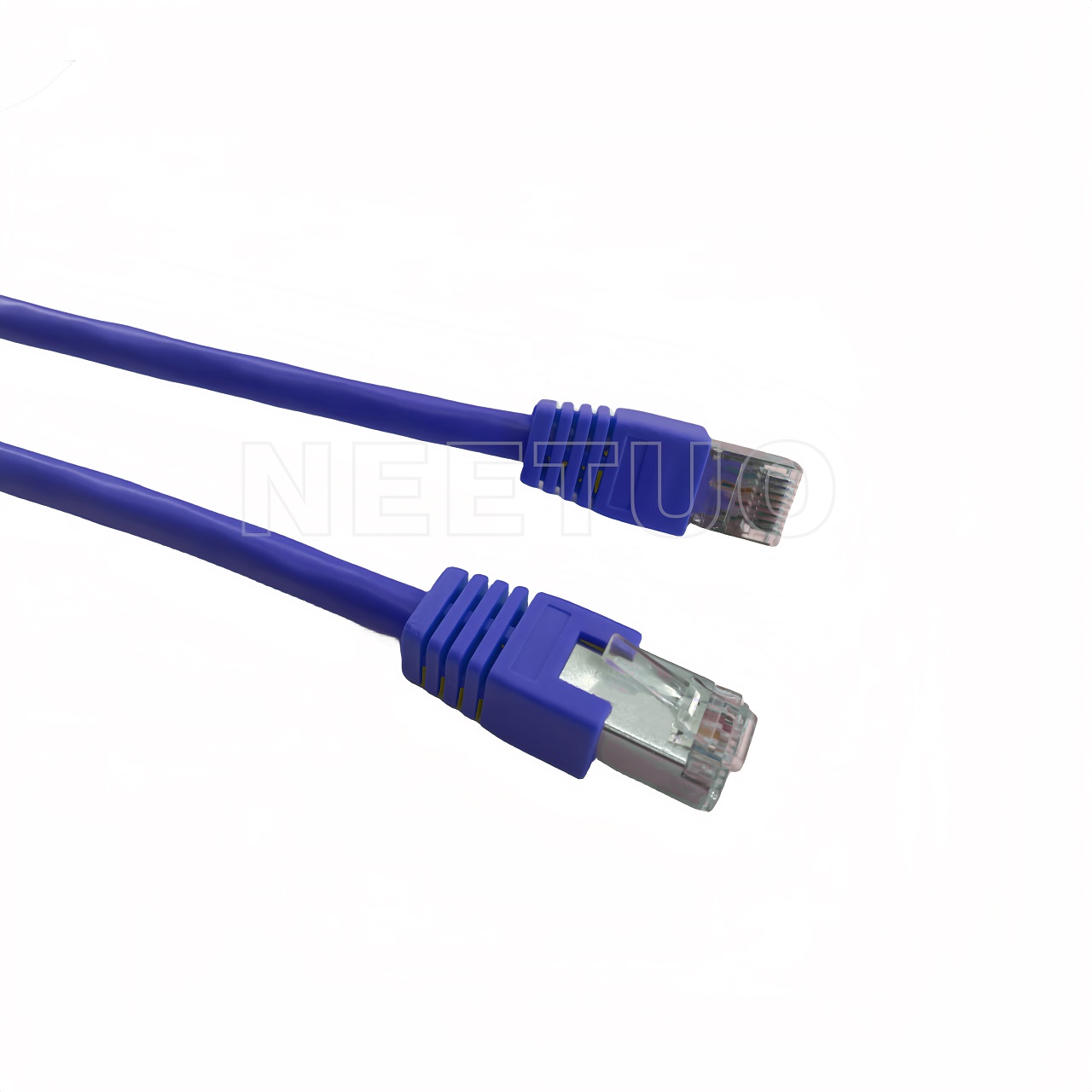

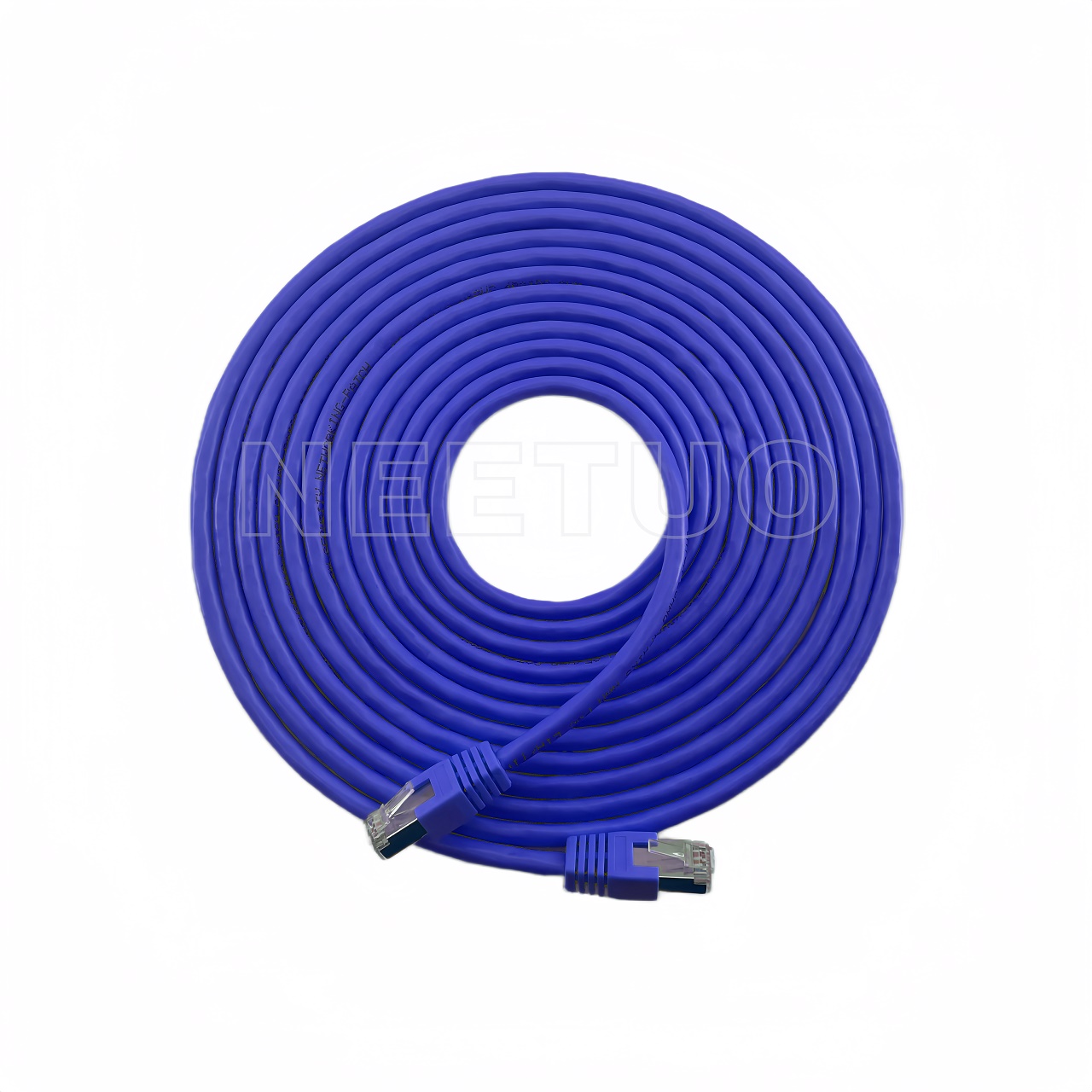

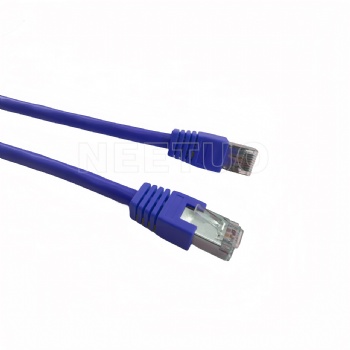

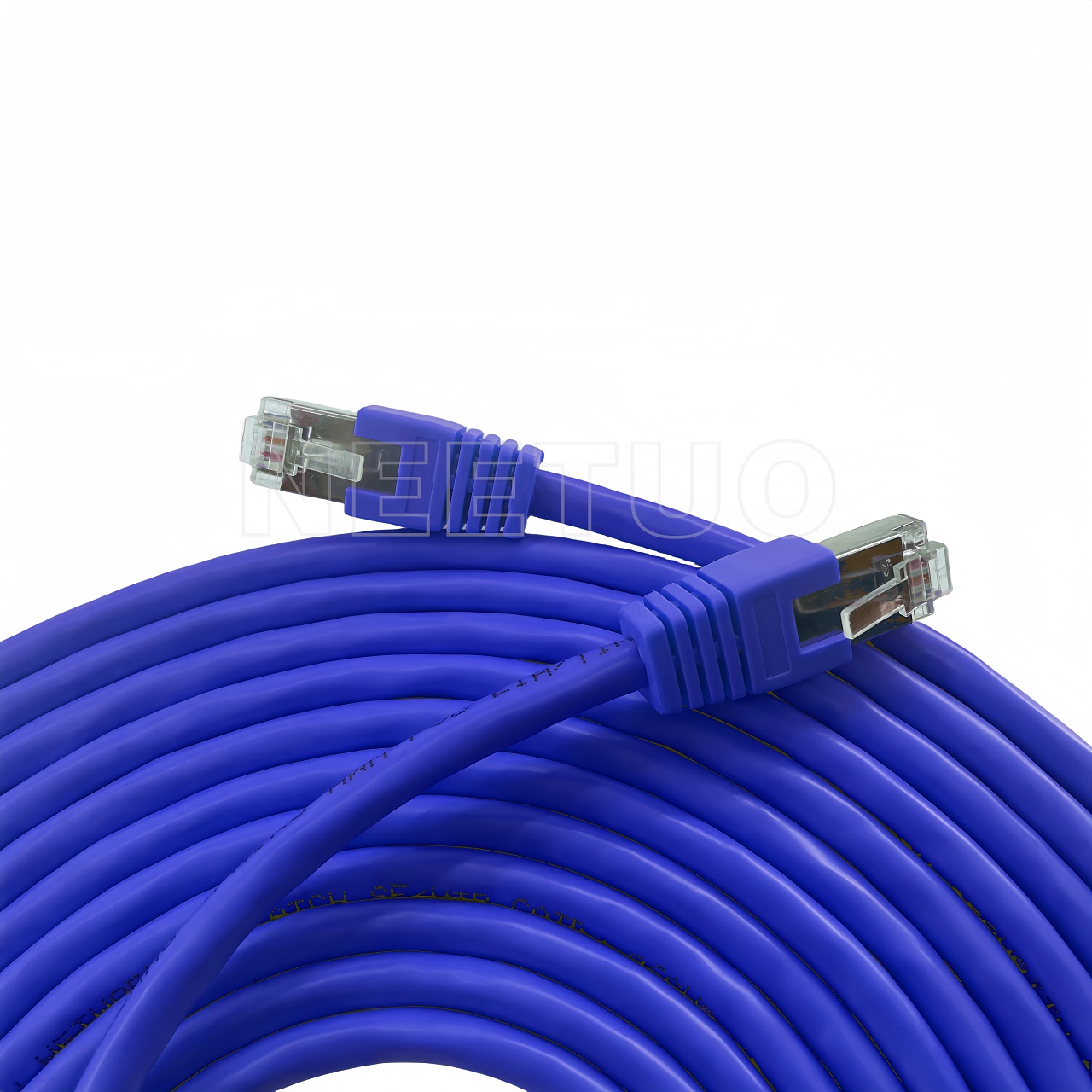

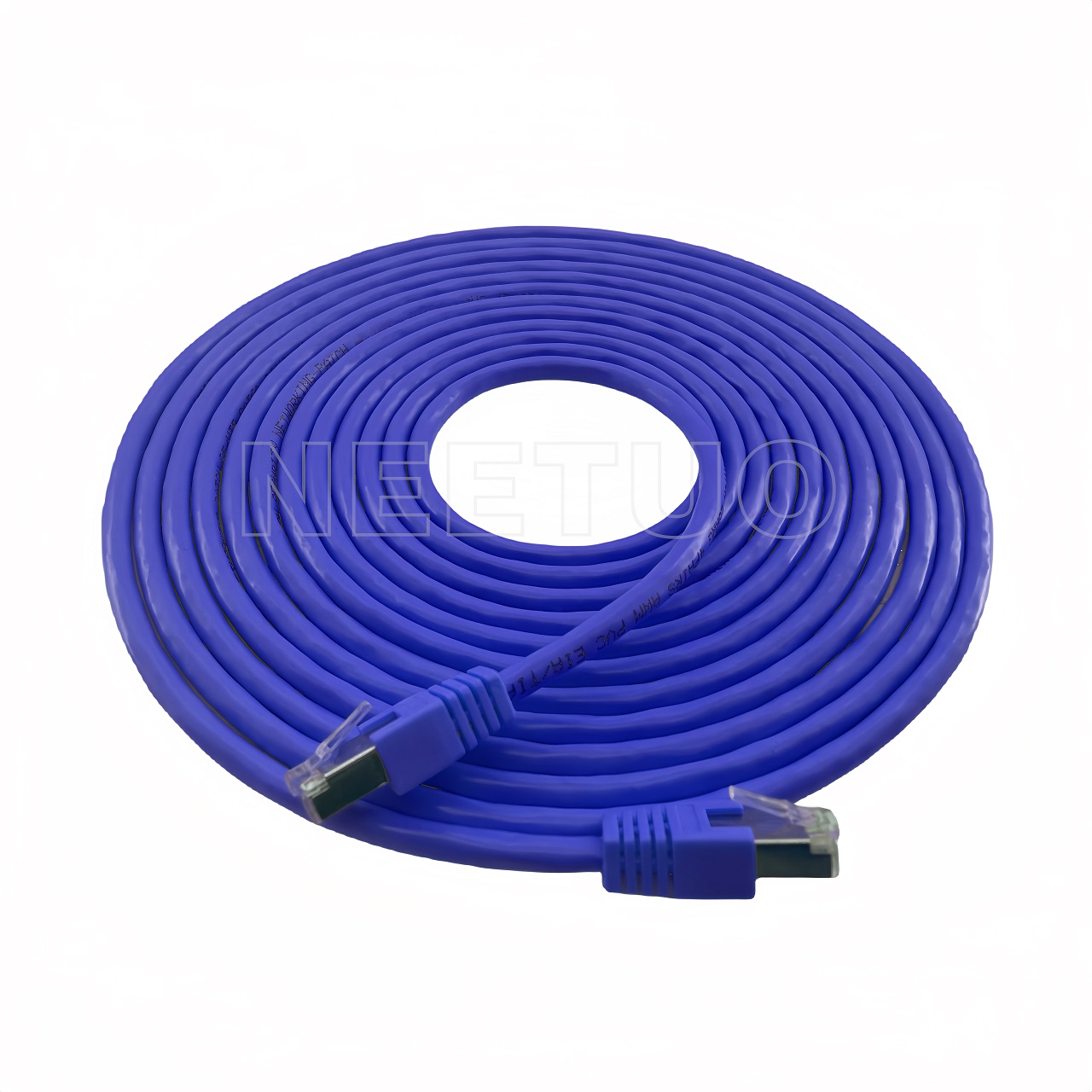

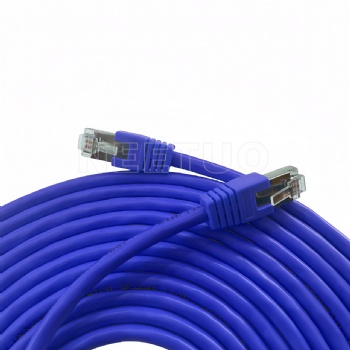

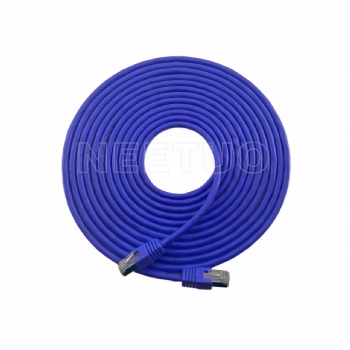

CAT7 SFTP Patch Cable 26AWG Snagless Molded Boot Pure Copper

NEETUO premium CAT7 SFTP Patch Cable is made of 28AWG stranded pure copper conductor with shielded foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Description
Inquiry

Overview

NEETUO premium CAT7 SFTP Patch Cable is made of 26AWG stranded pure copper conductor with shielded foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Features:

●Exceed ANSI/TIA-568-D.2 Category 7 and ISO 11801 Class F Standards

●Up to 800MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●SFTP Cable Minimizes EMI and RFI Interference

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Use in Demanding, High‑bandwidth Environments

●Support Current and Future Category 7/6a/6/5e/5 Applications

Specification:

印字Printing Mark	NEETUO LAN CABLE CAT7 S/FTP 26AWG Stranded COPPER TIA/EIA568.B xx/xx/xxxx xxxxm
规格Category	CAT7	屏蔽类型Shielding	双屏蔽SFTP
导体Conductor	26AWG多股纯铜 26AWG Stranded Copper Wire	绝缘Insulation	HDPE
地线Grouding Wire	纯铜/铝镁合金丝 Copper / Al-Mg Alloy Wire	撕裂线Rip Cord	Polymeter
护套Jacket	PVC CM（圆形Round）	外径OD	6.2mm±0.3
接头Connector	RJ45水晶头注塑RJ45 crystal Molded Boot 50μ''	线序Wire Scheme	T568B, Straight
Operation Temperature	-20 to +75°C	Installation Temperature	-10 to +50°C
