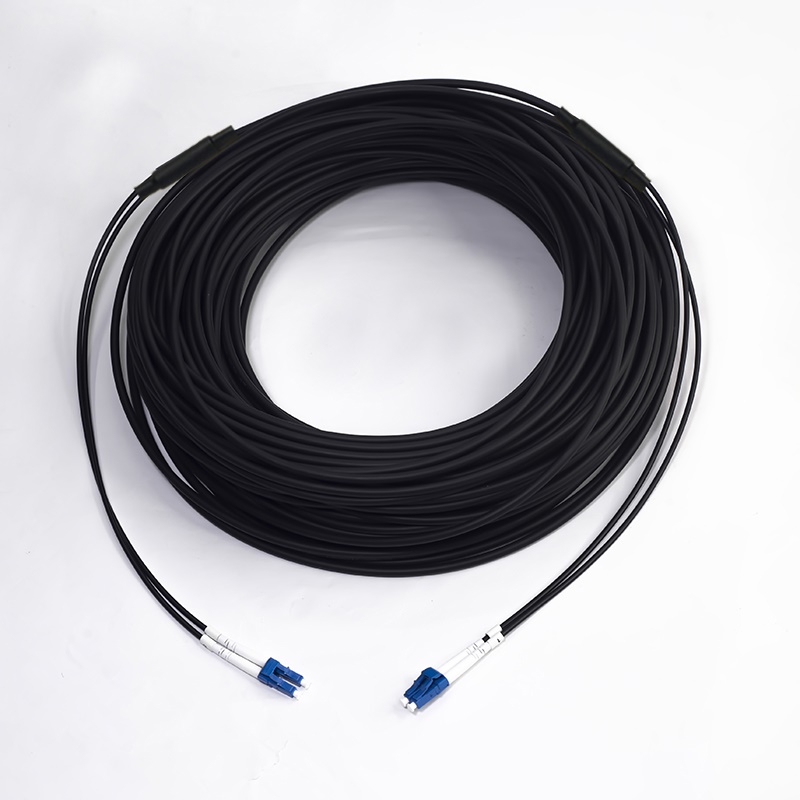

5.0mm Armored Fiber Optic Patch Cord 2FO Bend Insensitive G657A1
5.0mm Armored Fiber Optic Patch Cord 2FO Bend Insensitive G657A1

5.0mm Armored Fiber Optic Patch Cord 2FO Bend Insensitive G657A1

5.0mm Spiral Stainless Steel Wire Armored ,LSZH/TPU Jacket, 2F G657A1 Bend insensitive .

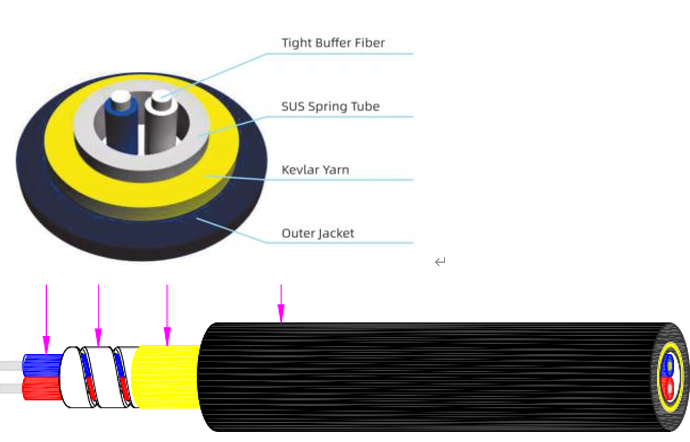

1,Cable Structure


2. Structure Description

Cable   Structure

Material/Model

Specs

1

Optical   Fiber

G657A1   buffer

2   * 0.85±0.05mm

2

Armored

Spiral   Stainless Steel

2.8±0.1mm

3

Reinforcement

Kevlar   Aramid Yarn


4

Jacket

LSZH/TPU

5.0±0.2mm



3. Specification:

Tension   Strength（short term）

800N

Crush Resistance

2000N

Minimum Bending Radius

Dynamic

20D

Static

10D

Operation Temperature

-40℃-70℃

Connector

Type

LC/UPC Duplex

IL(dB)

RL(dB)

≤0.3

≥55
