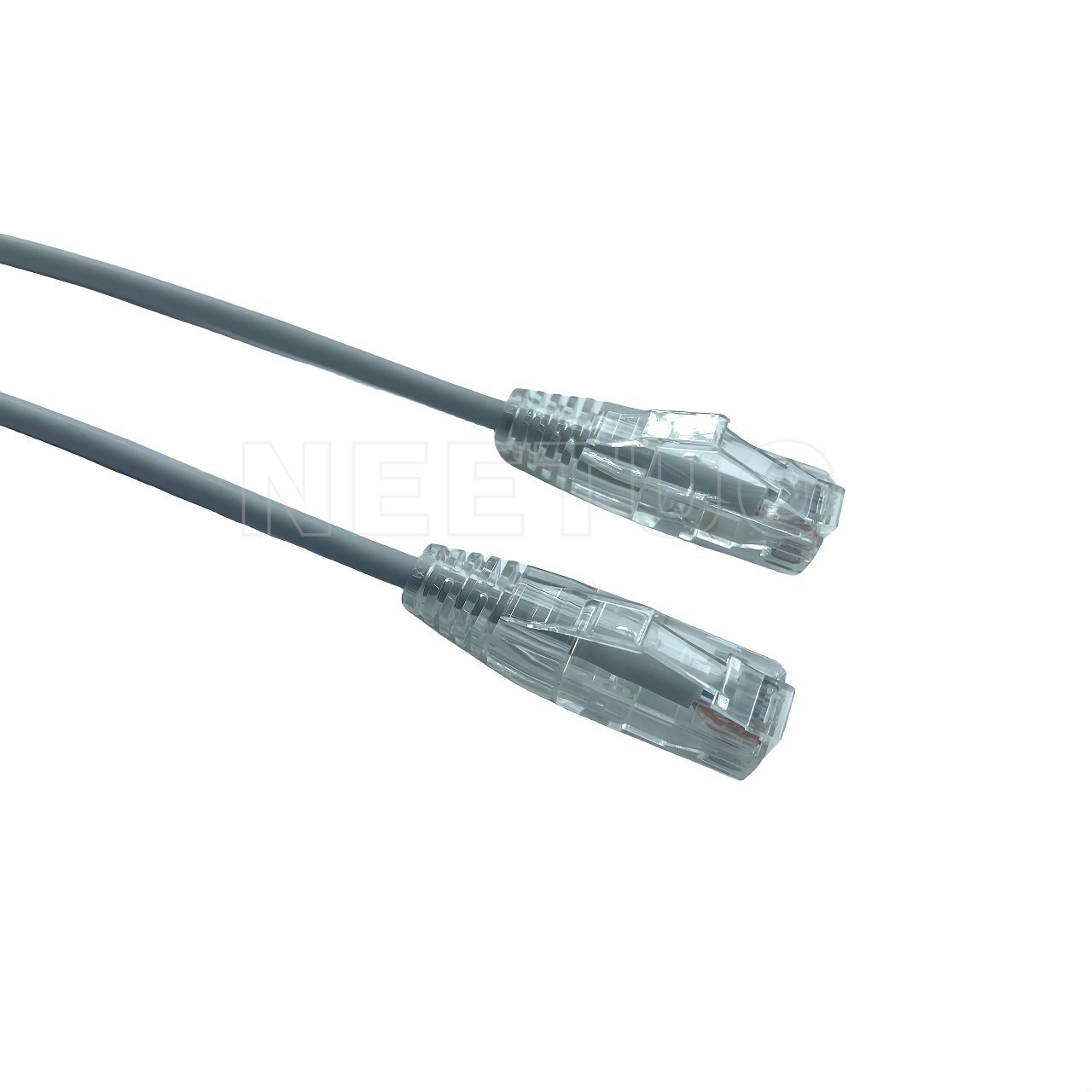

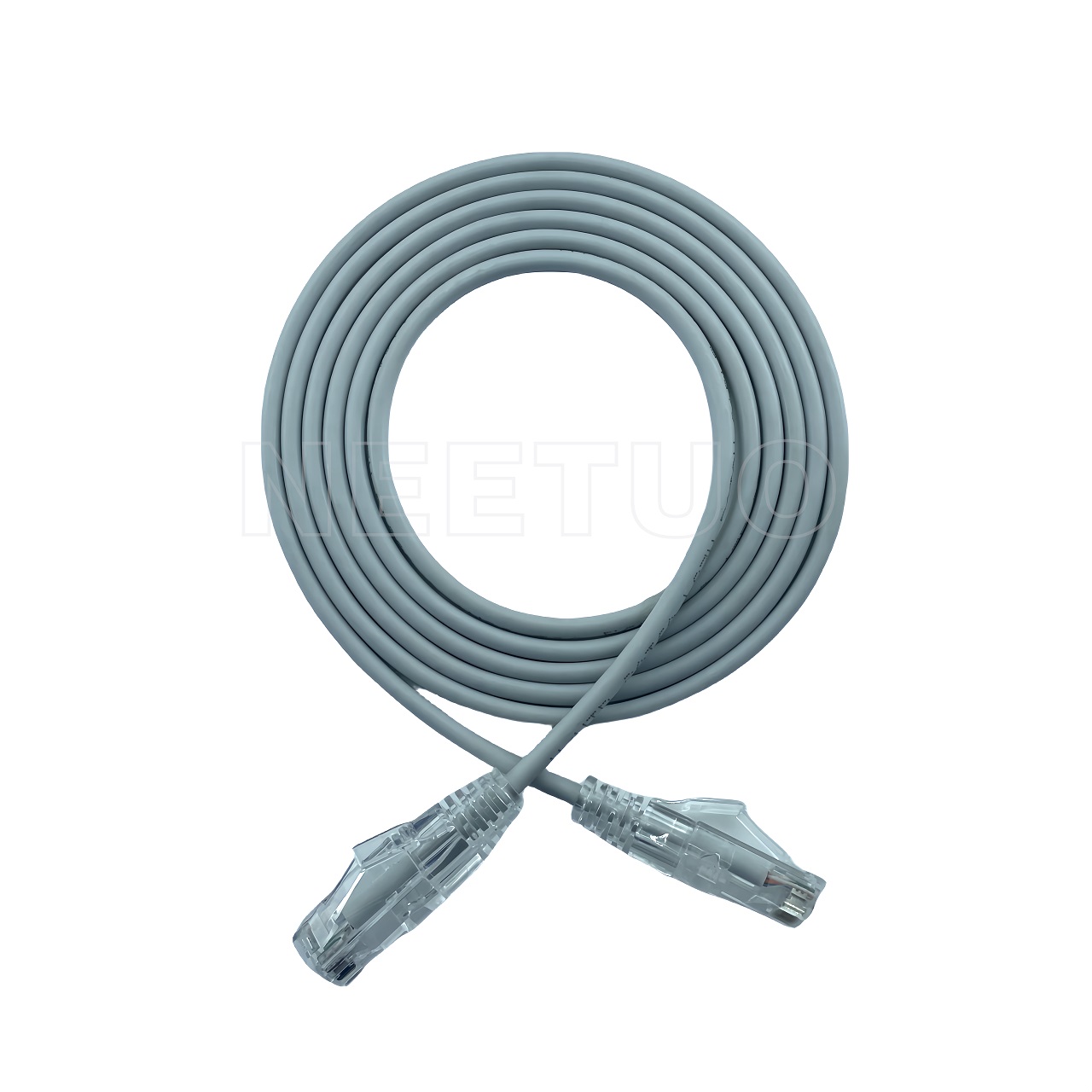

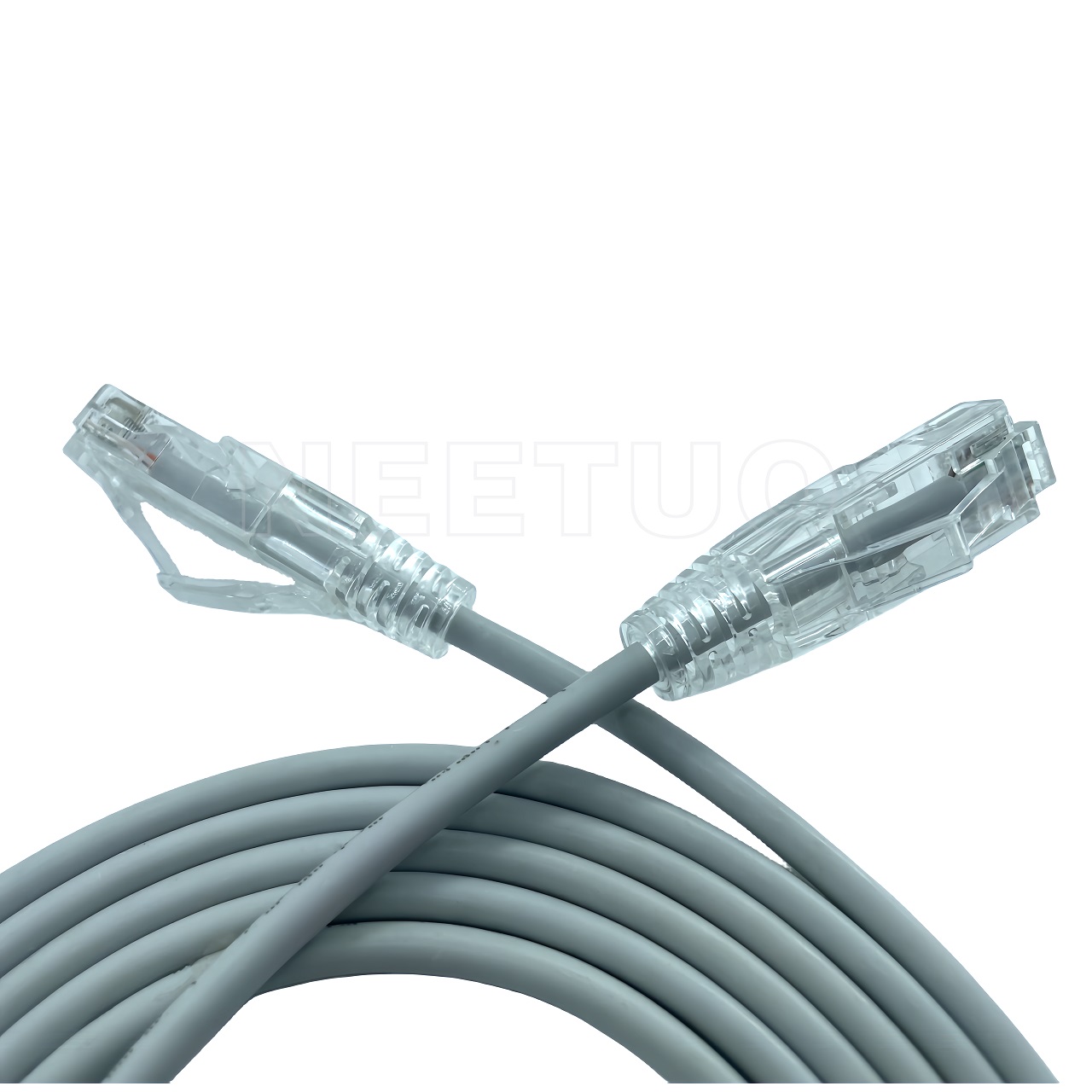

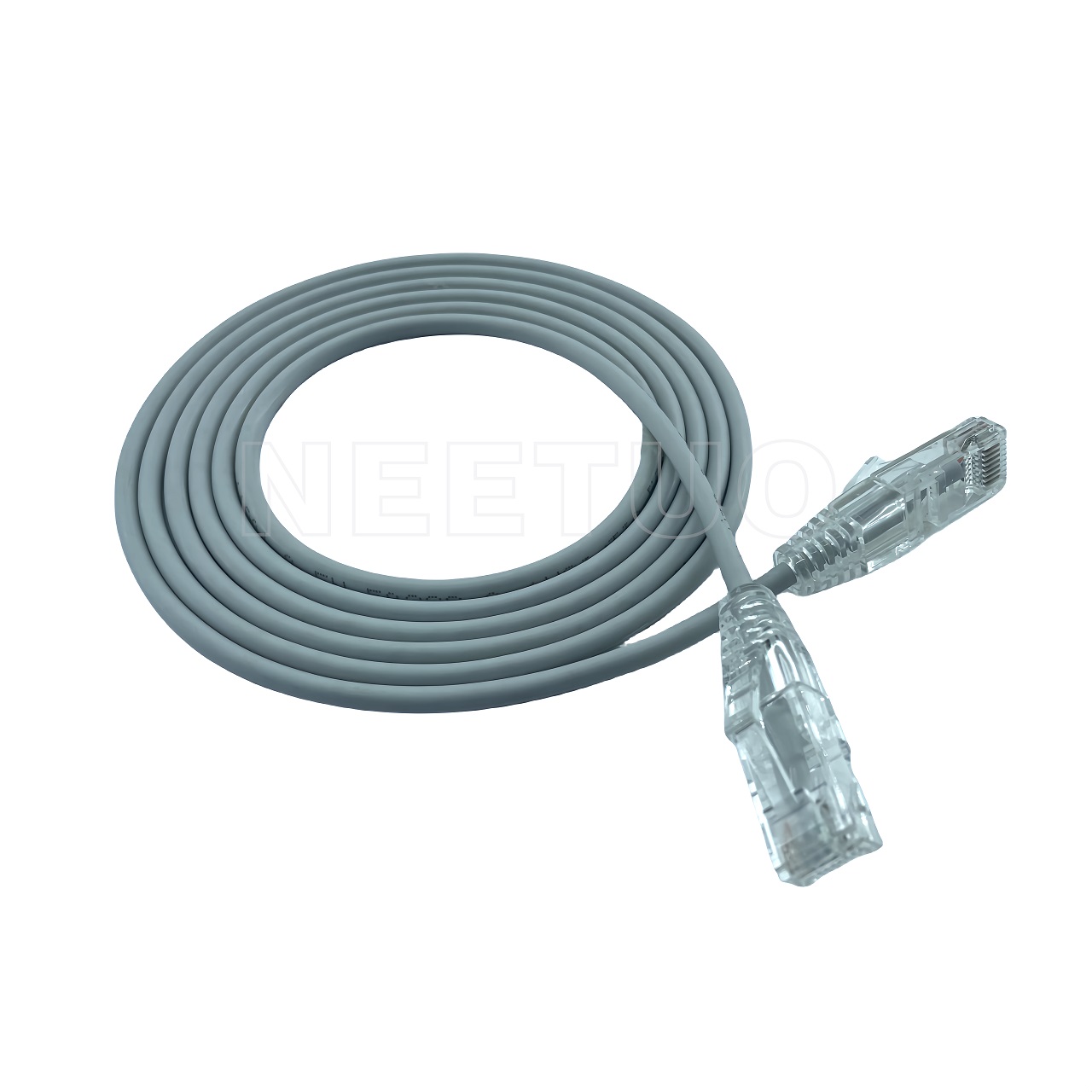

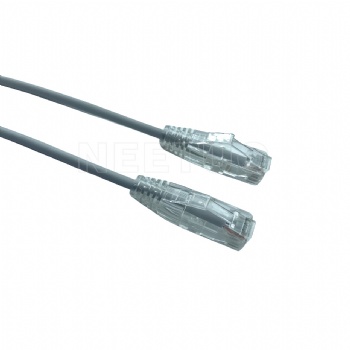

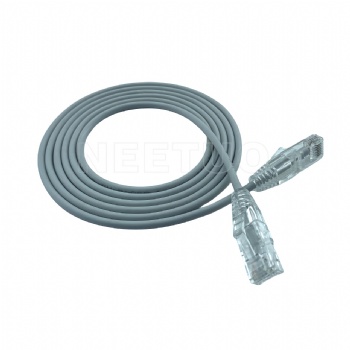

NEETUO premium CAT6a UTP Slim Patch Cable is made of 28AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Overview
NEETUO premium CAT6a UTP Slim Patch Cable is made of 28AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Features:
●28AWG Cable and Snagless Narrow Boot Design Takes Less Space
●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards
●Up to 500MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
●Performance Tested with Fluke and Wired T568B
●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
●Reduce Congestion in High‑density Data Centers and Telecommunications Rooms
Specification:
印字Printing Mark | NEETUO LAN CABLE CAT6a UTP 28AWG Stranded COPPER TIA/EIA568.B xx/xx/xxxx xxxxm | ||
规格Category | CAT6a | 屏蔽类型Shielding | 非屏蔽Unshielded |
导体Conductor | 28AWG多股 纯铜 28AWG Stranded Copper Wire | 绝缘Insulation | HDPE |
地线Grouding Wire | / | 撕裂线Rip Cord | / |
护套Jacket | PVC CM(圆形Round) | 外径OD | 4.0mm±0.4 |
接头Connector | RJ45水晶头注塑RJ45 crystal Molded Boot 50μ'' | 线序Wire Scheme | T568B, Straight |
Operation Temperature | -20 to +75°C | Installation Temperature | -10 to +50°C |
符合标准:
ANSI/TIA-568-D.2
ISO/IEC 11801
ANSI/TIA-1096-A (FCC Part 68)
EN50173-1:2011
UL1863
EU Directive 2011/65/EU (RoHS-2)
Compatible Network:
10BASE-T 100BASE-TX 100BASE-T4
1000BASE-T 5GBASE-T 10GBASE-T
ATM-25 ATM-51 ATM-155
100VG-AnyLan TR-4 TR-16 Active
TR-16 Passive
Packing demo:
