Overview

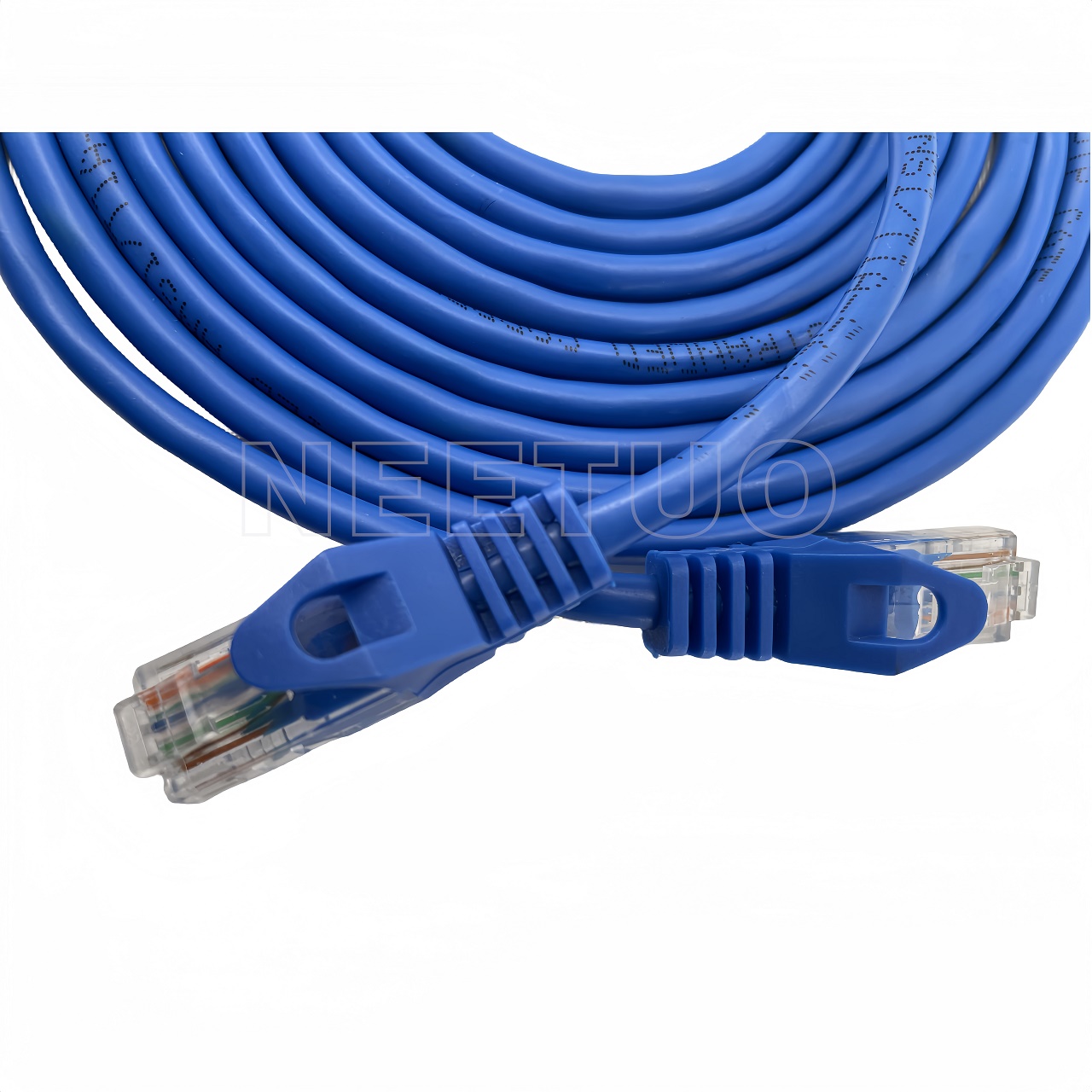

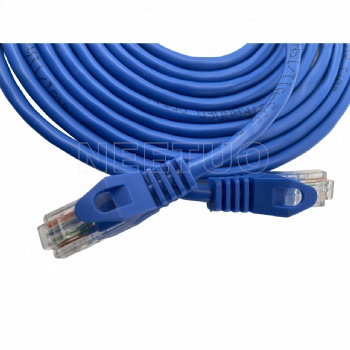

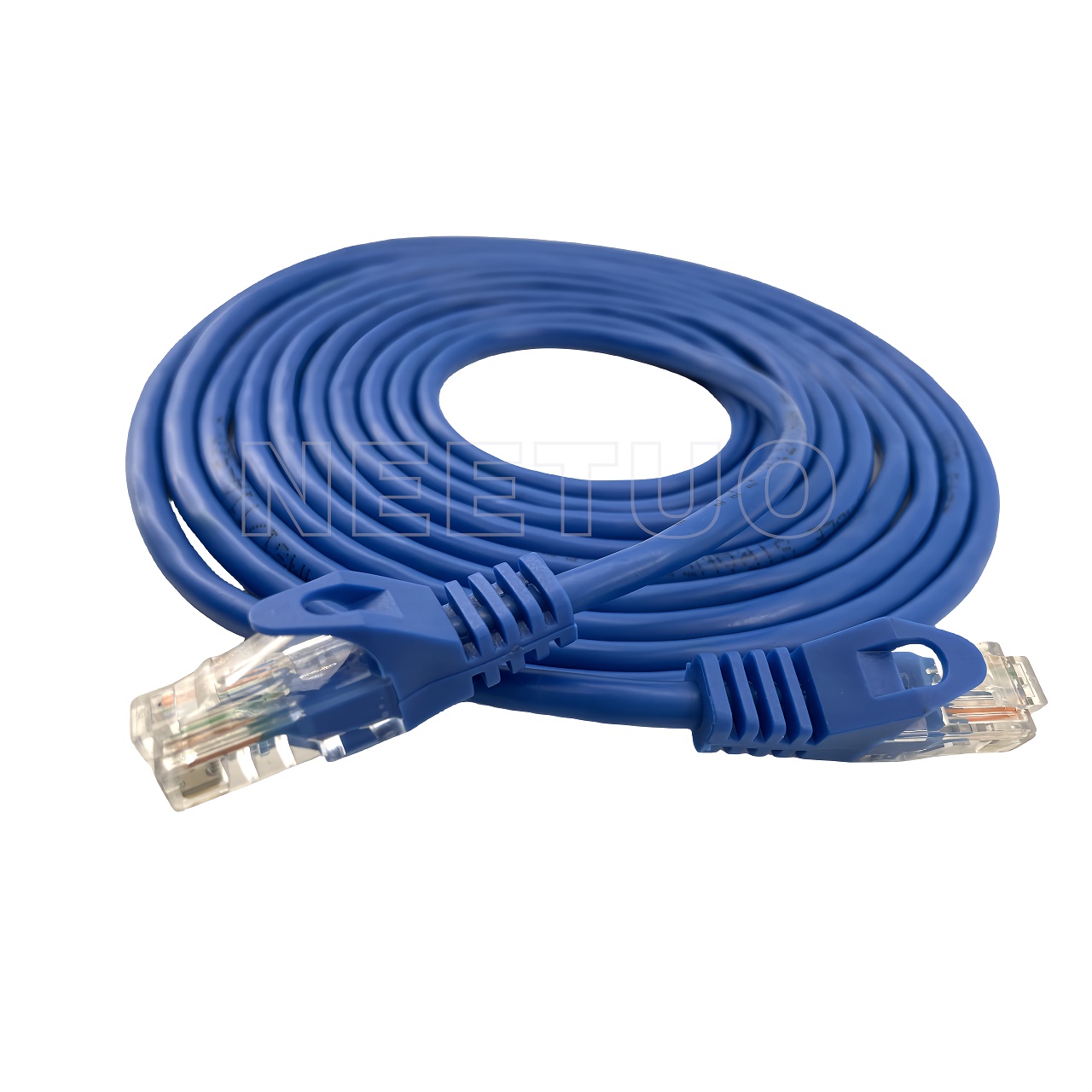

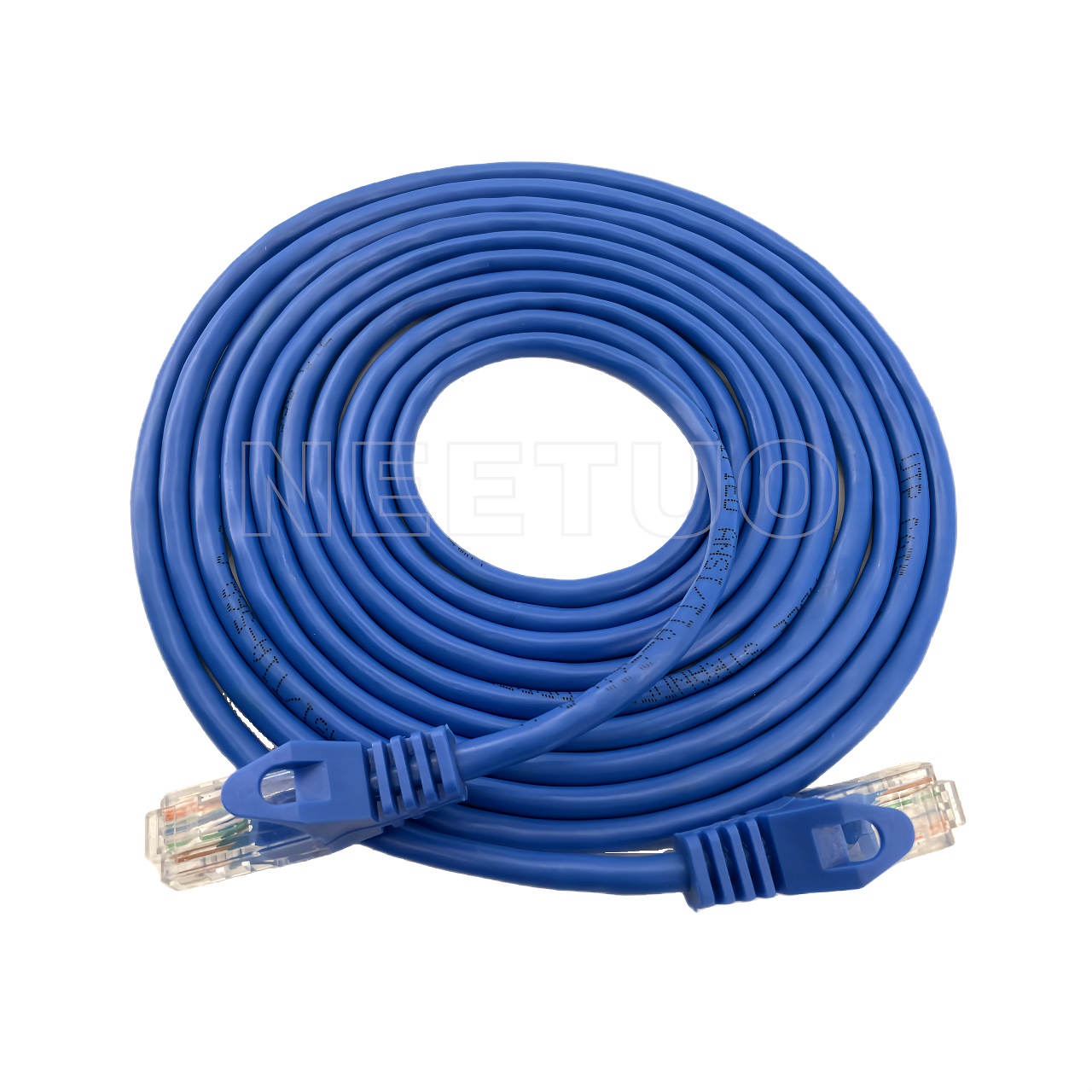

NEETUO premium CAT5e UTP Patch Cable is made of 24AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Features:

●Exceed ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class D Standards

●Up to 250MHz with 1G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Use in Voice/Video/VoIP Systems in Local Area Network

●Support Current and Future Category 5e/5 Applications

 Specification:

Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)

Compliant Network Standards:

10BASE-T     100BASE-TX        100BASE-T4

1000BASE-T  2.5GBASE-T         ATM-25

ATM-51        ATM-155             100VG-AnyLan

TR-4             TR-16 Active        TR-16 Passive

Packing demo：
