Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The frequence bandwidth is up to 500Mzh, transmission speed is up to 10 Gigabit.
Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, however,Neetuo is not UL listed, we didn’t pay for the certification.
Product Brief Introduction:
Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The frequence bandwidth is up to 500Mzh, transmission speed is up to 10 Gigabit.
Neetuo CAT6A is RoHS compliant, we can offer the CAT6A cables with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

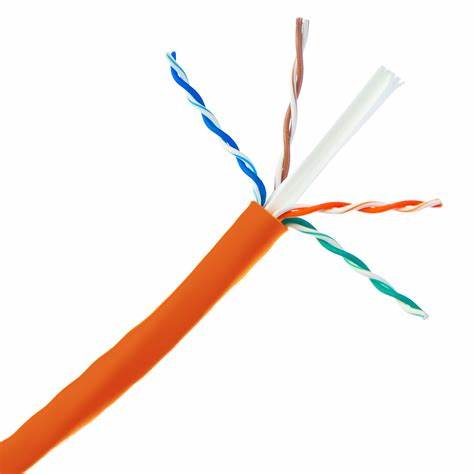

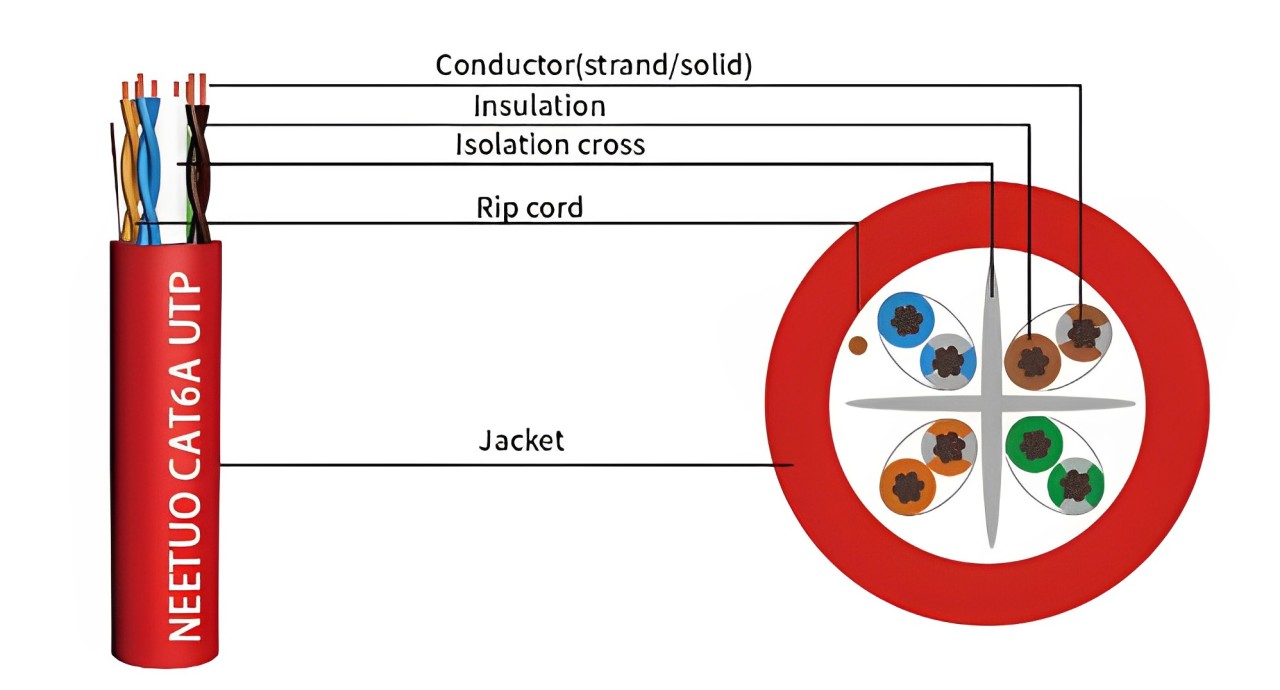

Printing Mark | NEETUO LAN CABLE CAT6A U/UTP 23AWG COPPER |
Packing | 305m in roll in easy-pull box or in drum |
Standard:
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
Construction | |
Conductor | |
Conductor material | Oxgen free copper (99.97% purity) |
Conductor structure | Solid 0.565mm±0.02mm |
Insulation | |
Insulation material | HDPE |
Average insulation thickness | 0.22 |
Insulation OD ±0.0mm | 0.98 |
Color | (Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown) |
Grounding Wire | |
Material | / |
Size | / |
Shielding | |
Pair shielding | / |
Overall Foil | / |
Braiding | / |
Rip Cord | |
Material | Polymeter |
Size | 500D |
Sheath | |
Sheath material | PVC |
Average thickness of sheath | 1.0mm |
Overall outer diameter | 6.3mm±0.2mm |
Color | Differrent colores are available |
Electrical Characteristics | |
SingleConductor resistance | ≤9.38Ω/100m |
Min Insulation Resistance | 5000MΩ.KM |
Max DCR Unbulance | 3% |
Max Mutual Capacitance | 5.8PF/M |
Max Capacitance Unbalance | 30 PF/100M |
Characteristic Impedance@1-100MHZ | 100±Ω |
Max Propagation delay skew | 18NS/100M |
Max DC ResistanceUnbalance | 2%(pair intra),4%(pair inter) |
Dielectric Strength | No breakdown with 1kv DC for 1min |
Rated voltage | 30V |
Withstand voltage | 500V |
Temperature | 80℃ |
Mechanical | |
Tensile strength | Jacket≥17MPa,Insulation≥16MPa |
Elongation at Break | Sheath≥150%,Insulation≥300% |
Installation Bending Radius | >8times of OD |
Conductor Elongation at Break | ≥10% |
Transmission | |
Characteristics Impedance | 100±15Ω |
Near End Cross Talk | ≥34.82dB/500 m@500MHZ |
Max Attenuation | ≤42.7dB/500 m@500MHZ |
Return Lose | ≥17.3dB/500 m@500MHZ |
Temperature | |
Operation Temperature | -20℃ to + 60℃ |
Installation Temperature | 0℃ to + 50℃ |
Storage Temperature | -10℃ to + 40℃ |
