CAT5e UTP 24AWG Pure Copper PVC CM

Part#: NT- LANCAT5E-24CU-PVC Cat5e UTP Cable is an ideal option for high-speed data transmission in both residential and commercial Ethernet networking applications. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH jacket. Neetuo cables are all RoHS compliant, The transmission speed of this cable is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.

Description
Inquiry

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, however,Neetuo is not UL listed, we didn’t pay for the certification.

Product Brief Introduction:

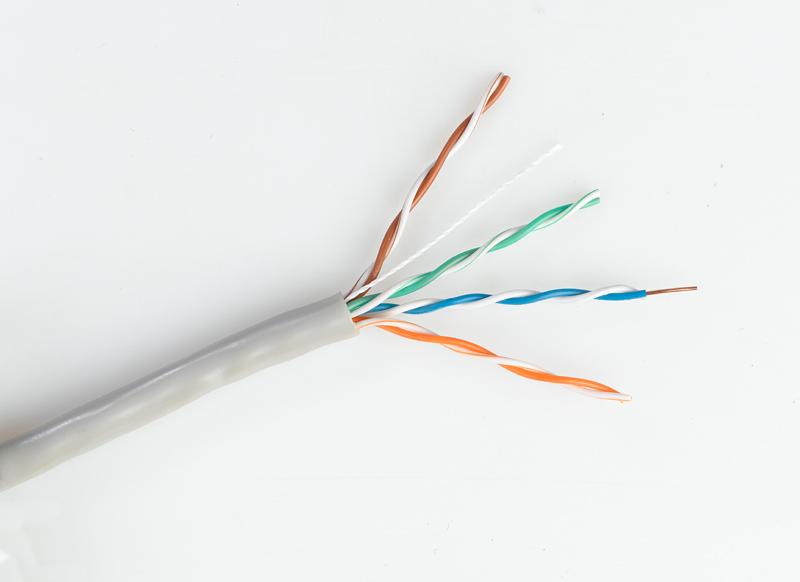

Cat5e UTP Cable is an ideal option for high-speed data transmission in both residential and commercial Ethernet networking applications. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH jacket. Neetuo cables are all RoHS compliant, The transmission speed of this cable is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.

Printing Mark	NEETUO LAN CABLE CAT5E U/UTP 24AWG COPPER
Packing	305m in roll in easy-pull box

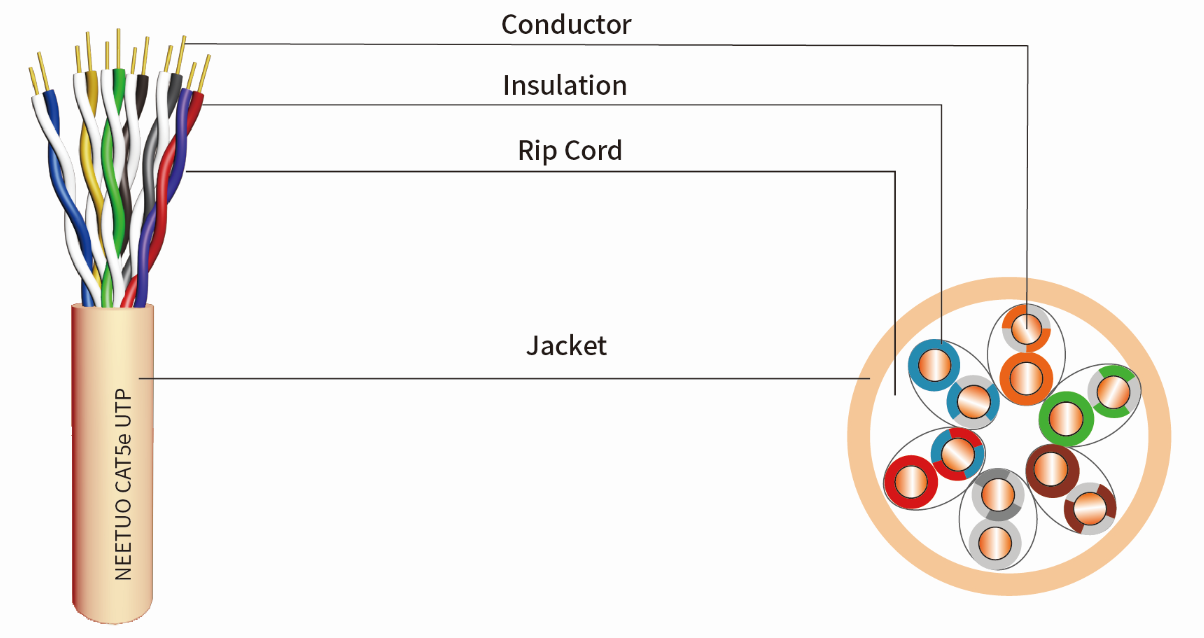

Conductor
Material	Oxgen free copper
Size	0.5mm24
Insulation
Material	HDPE
OD	0.9±0.02mm
Color	(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)
Rip Cord	Polymeter
Jacket
Material	PVC/LSZH/PE
Thickness	0.6mm
OD	5.0mm+0.2mm
Performance
Frequency	100Mhz
Speed	10/100/1000Base-T
Remarks: Copper could be replaced by CCA/CCS,or half Copper Half CCA/CCS;24AWG solid copper could be replaced by 26AWG stranded copper, please discuss the details with our sales
