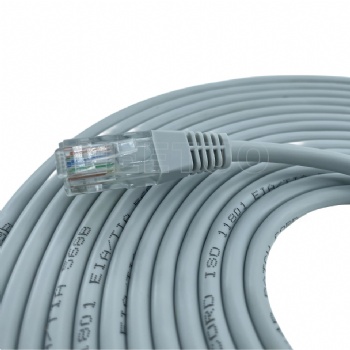

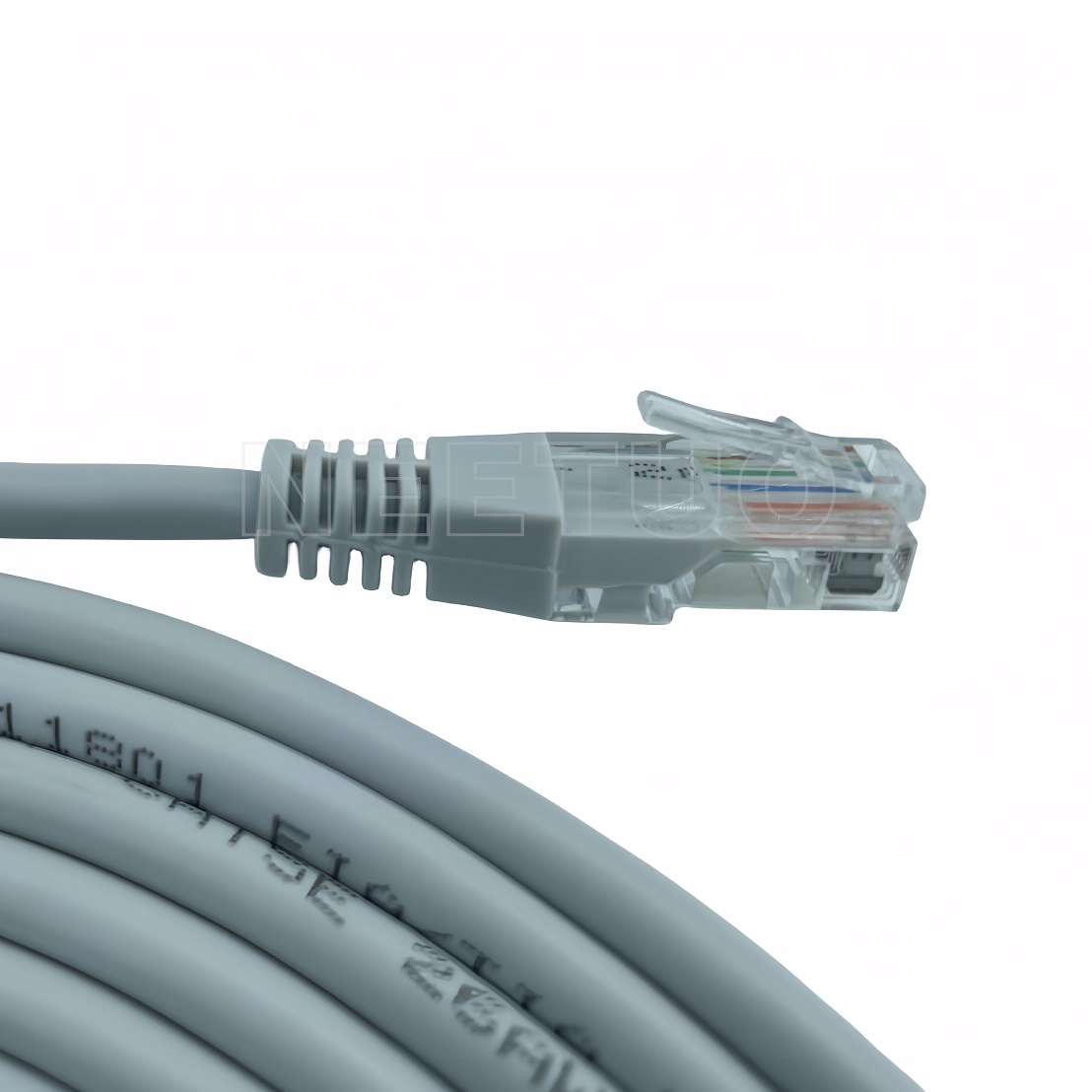

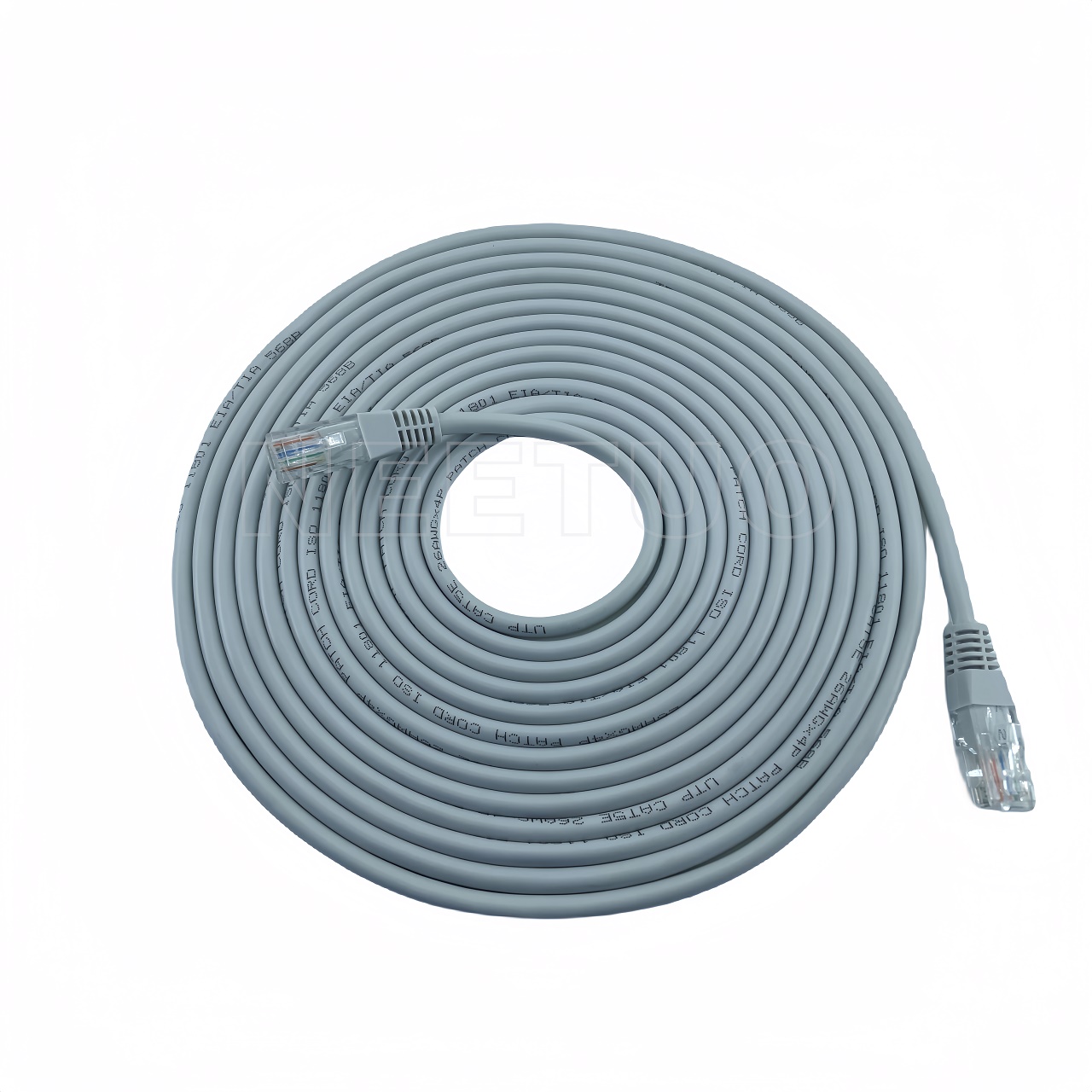

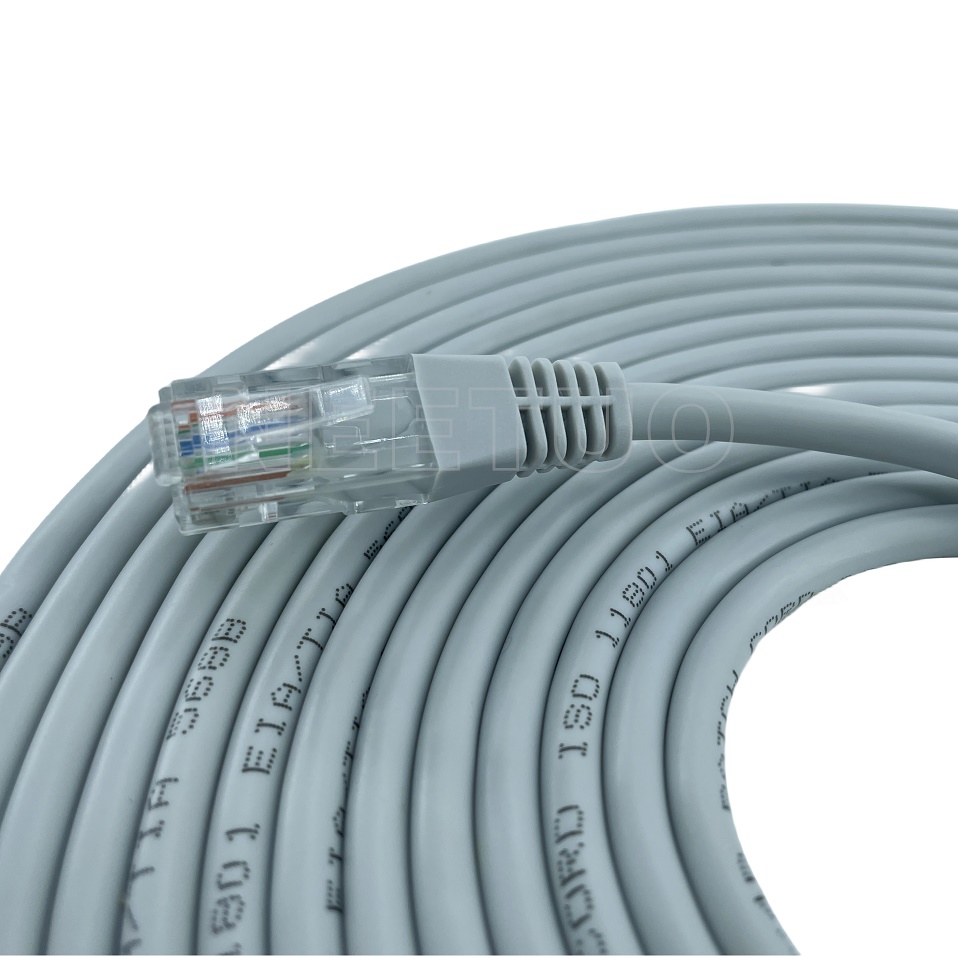

NEETUO premium CAT5e UTP Patch Cable is made of 24AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Overview
NEETUO premium CAT5e UTP Patch Cable is made of 24AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Features:
●Exceed ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class D Standards
●Up to 250MHz with 1G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
●Performance Tested with Fluke and Wired T568B
●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
●Use in Voice/Video/VoIP Systems in Local Area Network
●Support Current and Future Category 5e/5 Applications
Specification:
Printing Mark | NEETUO LAN CABLE CAT5E UTP 24AWG Stranded COPPER TIA/EIA568.B xxxx/xx/xx xxxxm | ||
Category | CAT5e | Shielding | Unshielded |
Conductor | 24AWG Stranded Copper Wire | Insulation | HDPE |
Grouding Wire | / | Rip Cord | / |
Jacket | PVC CM(Round) | OD | 5.6mm±0.2 |
Connector | RJ45 crystal Molded Boot 50μ'' | Wire Scheme | T568B,Straight |
Operation Temperature | -20 to +75°C | Installation Temperature | -10 to +50°C |
Standards:
ANSI/TIA-568-D.2
ISO/IEC 11801
ANSI/TIA-1096-A (FCC Part 68)
EN50173-1:2011
UL1863
EU Directive 2011/65/EU (RoHS-2)
Compliant Network Standards:
10BASE-T 100BASE-TX 100BASE-T4
1000BASE-T 2.5GBASE-T ATM-25
ATM-51 ATM-155 100VG-AnyLan
TR-4 TR-16 Active TR-16 Passive
Packing demo:
