NEETUO premium CAT6a UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. Cat6a network patch cable is the cost-effective solution for data center and SMB applications. Design for computers, hubs,switches, routers, DSL/cable modems and patch panels in Gigabit datacenter applications. With fast transmission and excellent signal quality, it ensures peak performance through your LAN.
Overview
NEETUO premium CAT6a UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Cat6a network patch cable is the cost-effective solution for data center and SMB applications. Design for computers, hubs,switches, routers, DSL/cable modems and patch panels in Gigabit datacenter applications. With fast transmission and excellent signal quality, it ensures peak performance through your LAN.
Features:
●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards
●Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
●Performance Tested with Fluke and Wired T568B
●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
●Use in Voice/Video/VoIP Systems in Local Area Network
●Support Current and Future Category 6a/6/5e/5 Applications
Specification:
印字Printing Mark | NEETUO LAN CABLE CAT6a UTP 24AWG Stranded COPPER TIA/EIA568.B xx/xx/xxxx xxxxm | ||
规格Category | CAT6a | 屏蔽类型Shielding | 非屏蔽Unshielded |
导体Conductor | 26AWG多股 纯铜 24AWG Stranded Copper Wire | 绝缘Insulation | HDPE |
地线Grouding Wire | / | 撕裂线Rip Cord | / |
护套Jacket | PVC / LSZH(圆形Round) | 外径OD | 5.8mm±0.4 |
接头Connector | RJ45水晶头注塑RJ45 crystal Molded Boot 50μ'' | 线序Wire Scheme | T568B, Straight |
Operation Temperature | -20 to +75°C | Installation Temperature | -10 to +50°C |
Standards:
ANSI/TIA-568-D.2
ISO/IEC 11801
ANSI/TIA-1096-A (FCC Part 68)
EN50173-1:2011
UL1863
EU Directive 2011/65/EU (RoHS-2)

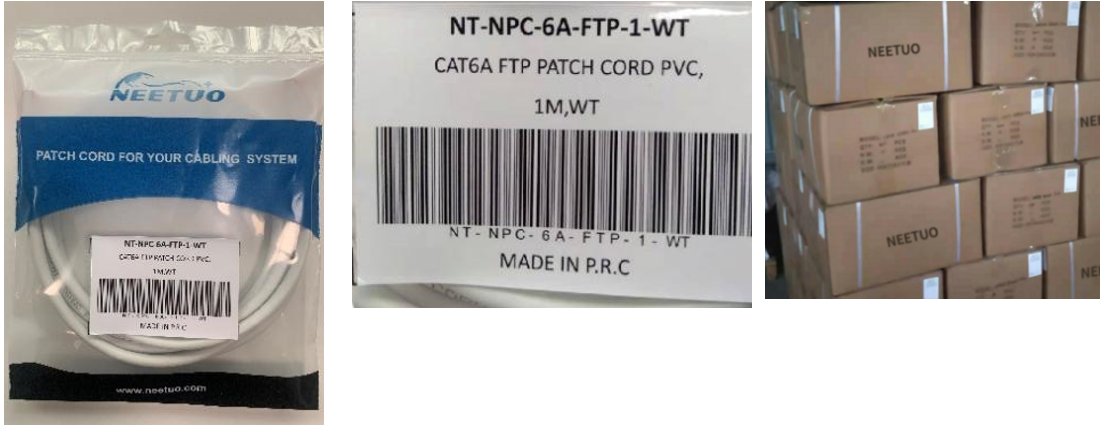

Packing Demo:
