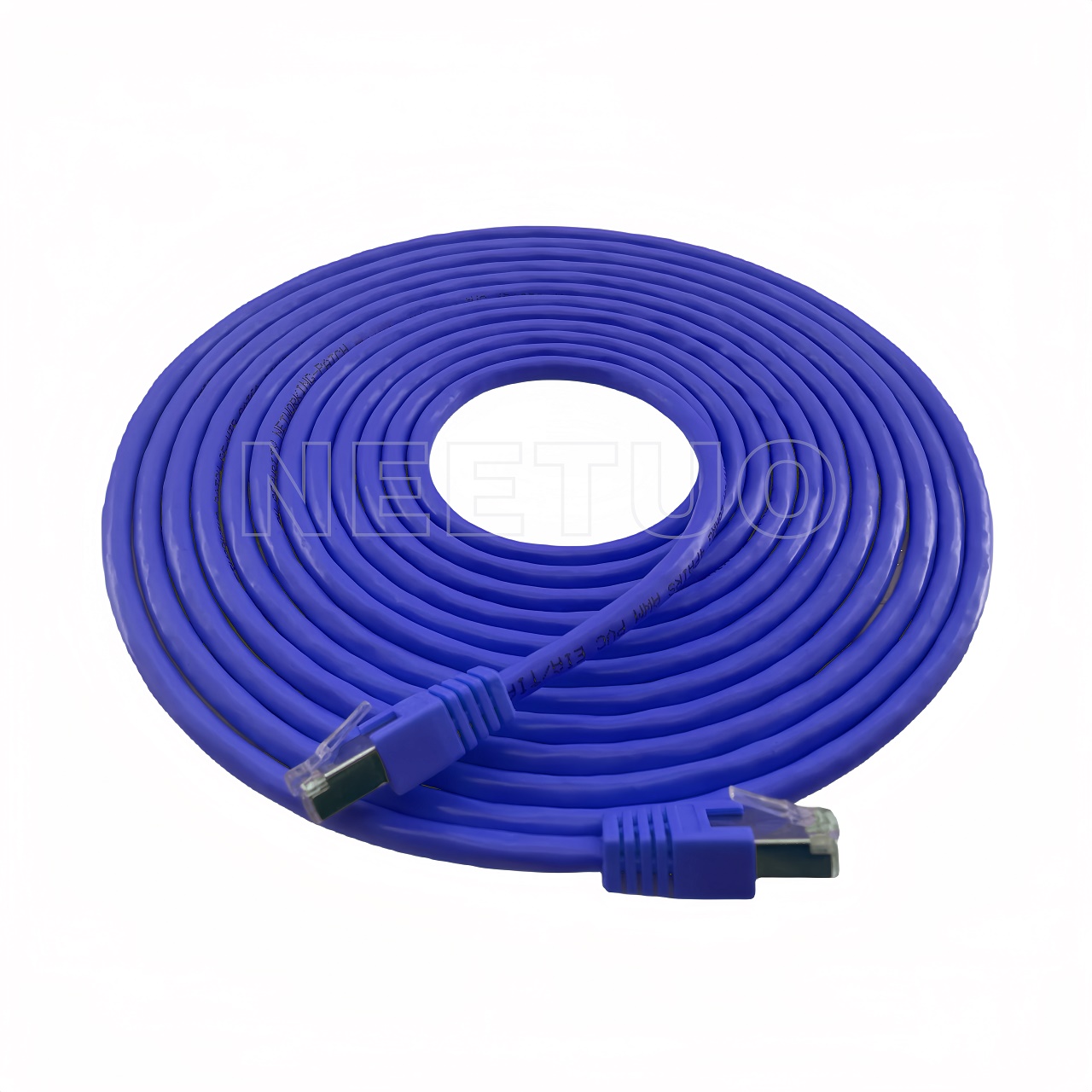

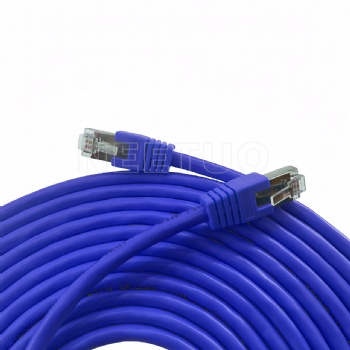

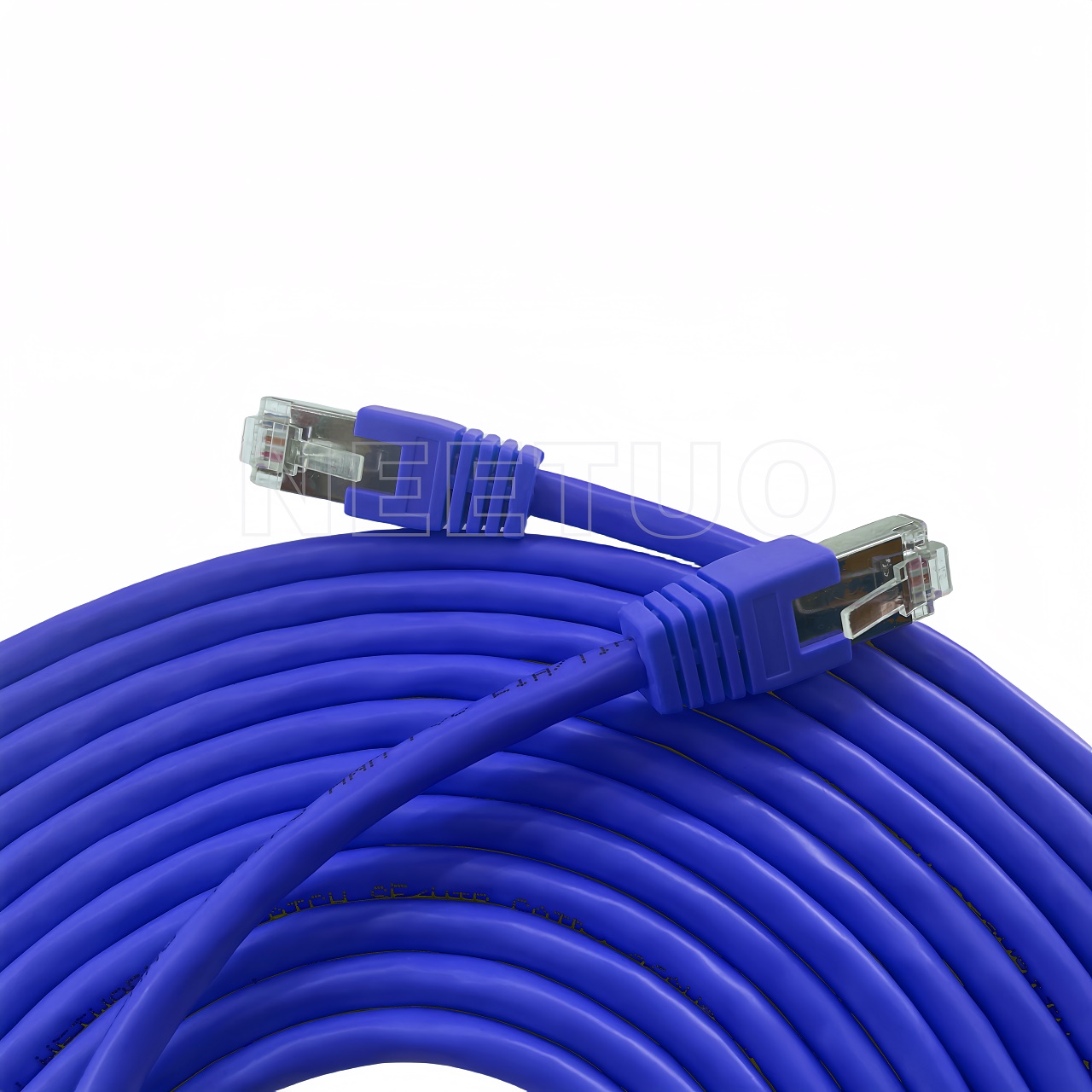

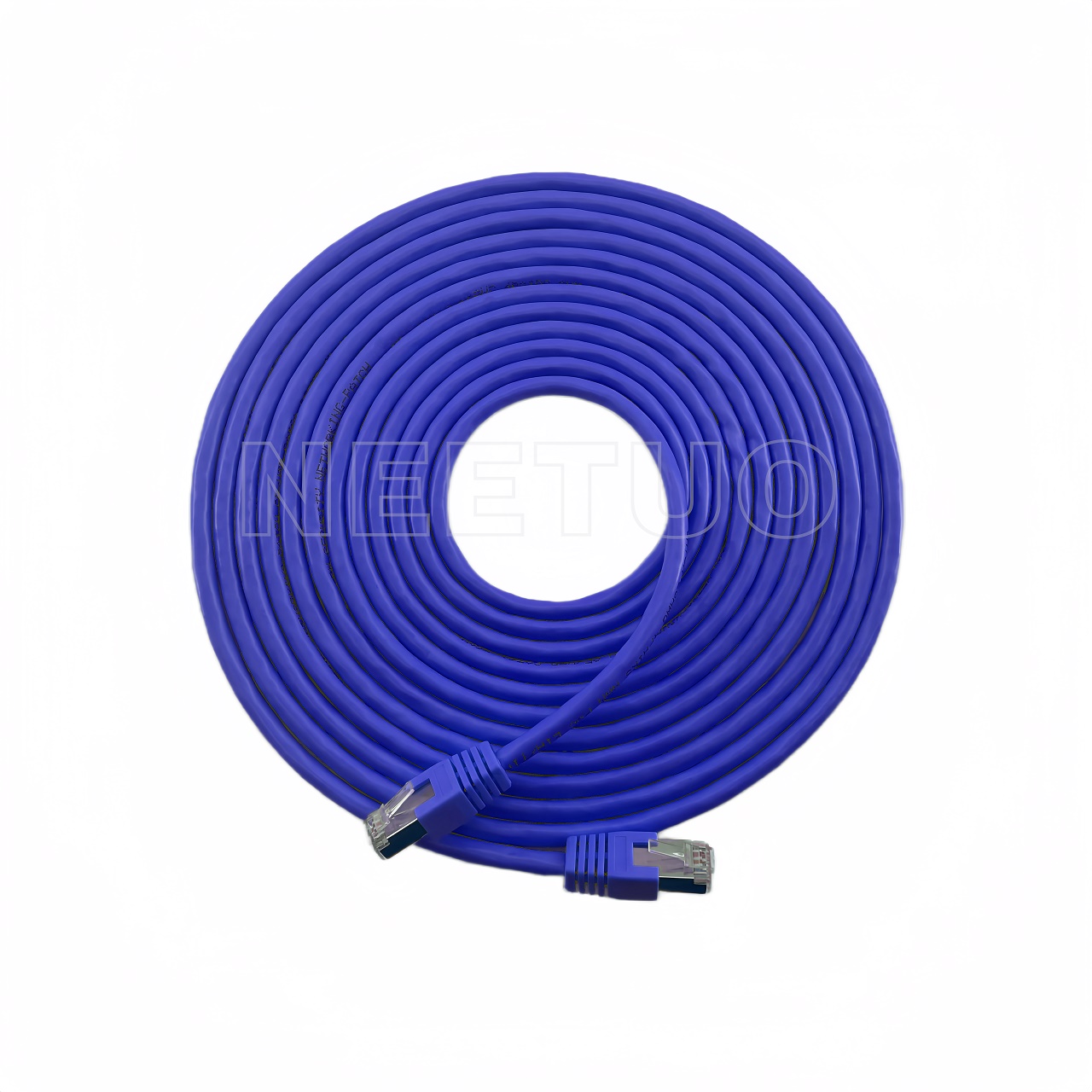

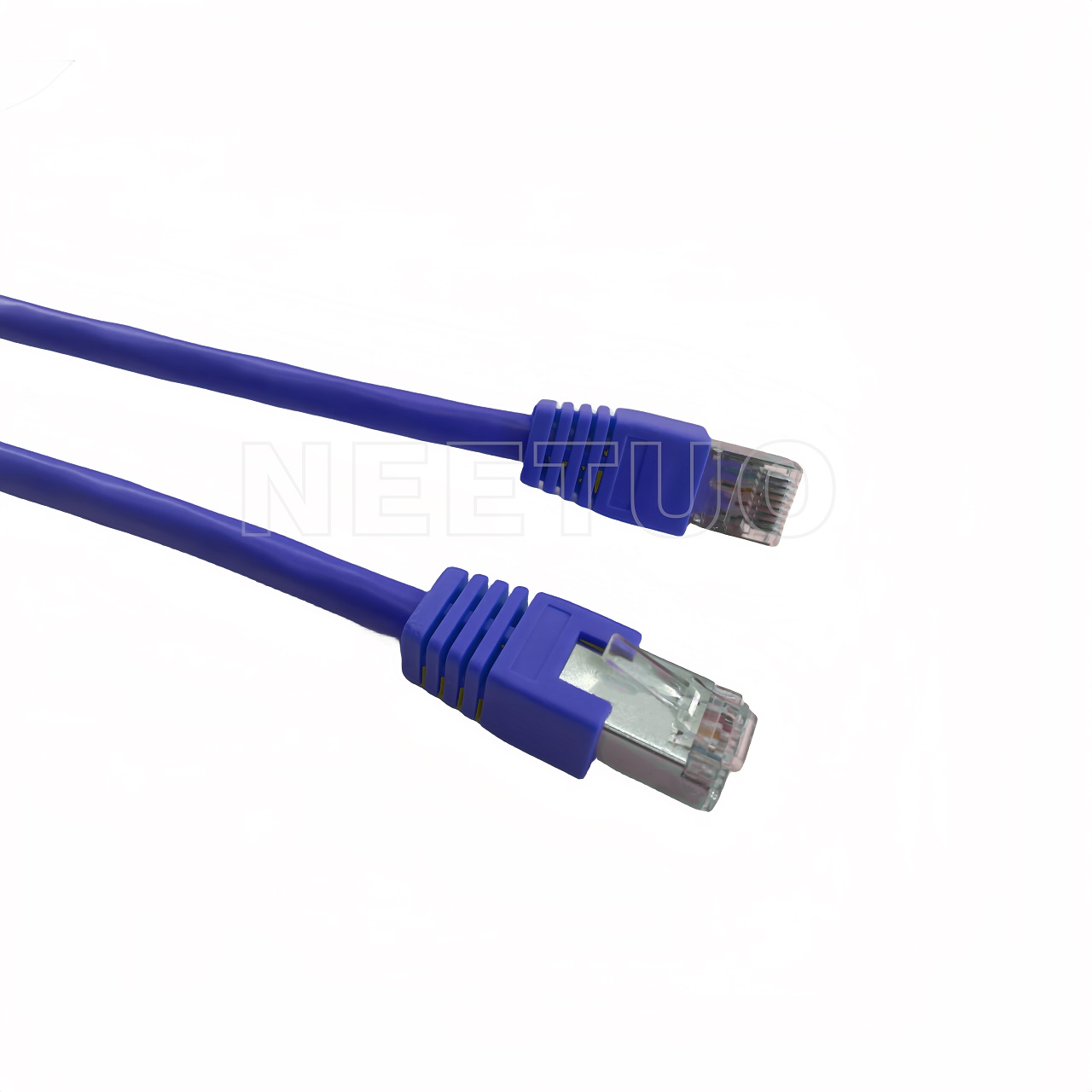

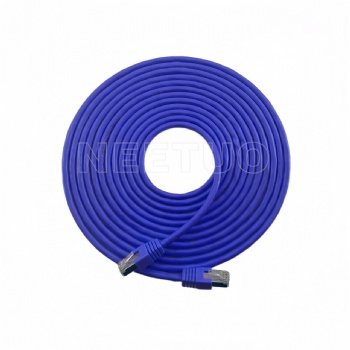

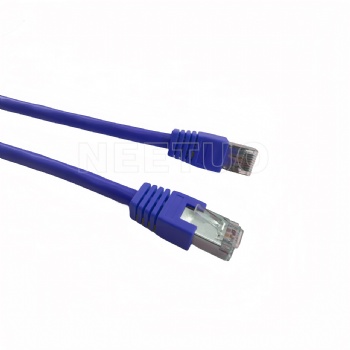

CAT7 SFTP Patch Cable 26AWG Snagless Molded Boot Pure Copper

Cat7 SFTP跳线采用28AWG双屏蔽双绞绞合铜电缆,每端都有一个高性能模块化插头。无卡扣设计可保护RJ45连接器上的锁定夹在安装过程中不被损坏或折断。 它超越了Cat7以太网网线标准的性能,为室内万兆以太网数据中心应用提供了高性价比的解决方案,在100米电缆内支持高达10GBase-T和600MHz。

Overview

NEETUO premium CAT7 SFTP Patch Cable is made of 26AWG stranded pure copper conductor with shielded foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Features:

●Exceed ANSI/TIA-568-D.2 Category 7 and ISO 11801 Class F Standards

●Up to 800MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●SFTP Cable Minimizes EMI and RFI Interference

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Use in Demanding, High‑bandwidth Environments

●Support Current and Future Category 7/6a/6/5e/5 Applications

 Specification:

印字Printing Mark

NEETUO   LAN CABLE CAT7 S/FTP 26AWG Stranded COPPER TIA/EIA568.B  xx/xx/xxxx    xxxxm

规格Category

CAT7

屏蔽类型Shielding

双屏蔽SFTP

导体Conductor

26AWG多股 纯铜 26AWG Stranded  Copper Wire

绝缘Insulation

HDPE

地线Grouding Wire

纯铜/铝镁合金丝  Copper / Al-Mg Alloy Wire

撕裂线Rip Cord

Polymeter

护套Jacket

PVC CM(圆形Round

外径OD

6.2mm±0.3

接头Connector

RJ45水晶头注塑RJ45 crystal Molded Boot 50μ''

线序Wire Scheme

T568B, Straight

Operation Temperature

-20 to +75°C

Installation Temperature

-10 to +50°C

 Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)

 Compliant Network Standards:

10BASE-T                 100BASE-TX             100BASE-T4

1000BASE-T             5GBASE-T                 10GBASE-T

ATM-25                     ATM-51                    ATM-155

100VG-AnyLan         TR-4                          TR-16 Active

TR-16 Passive



Packing demo:
