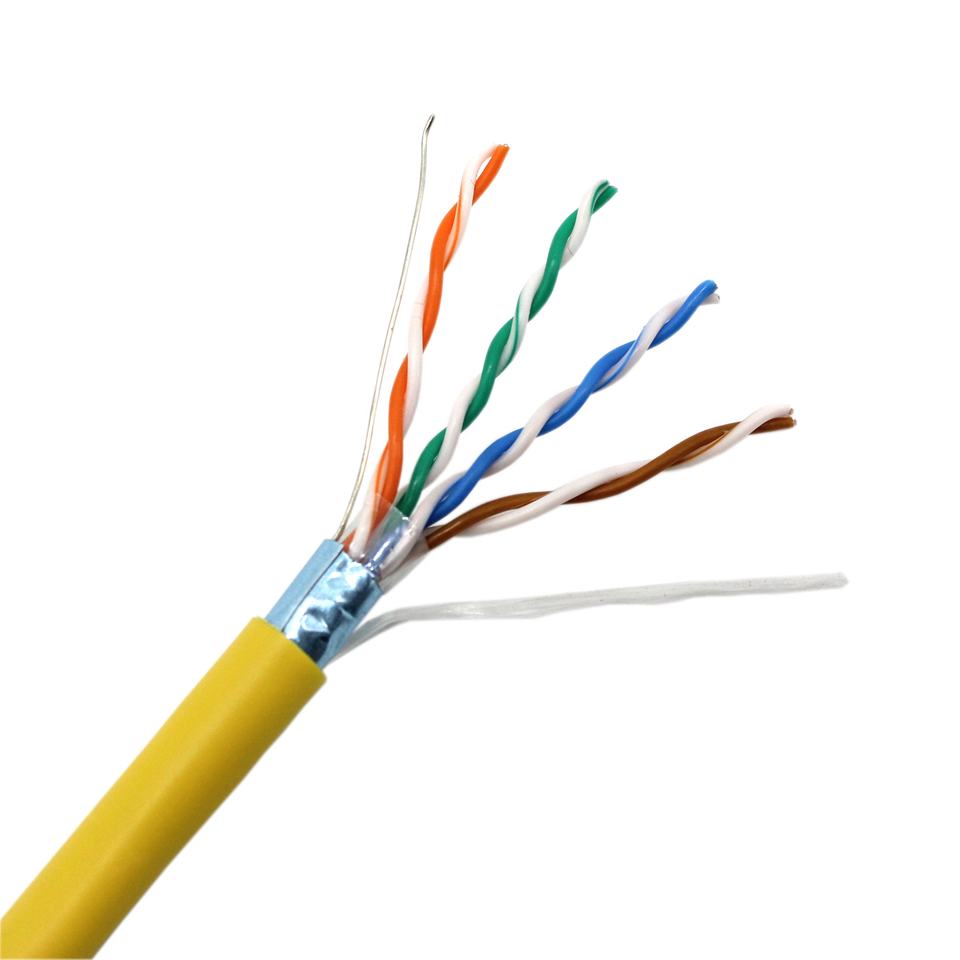

CAT5e FTP 24AWG Pure Copper PVC/LSZH

Part#: NT- LANCAT5EFTP-24CU-PVC Part#: NT- LANCAT5EFTP-24CU-LSZH Cat5e FTP Cable features overal al-foil shielding layer, the foil shielding reduces interference and improves signal quality, making it suitable for environments with high levels of electromagnetic interference. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH jacket. This cable provide 100Mhz frequency bandwidth, the transmission speed is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568,  however,Neetuo is not UL listed, we didn’t pay for the certification.


Product Brief Introduction:

Cat5e FTP Cable features overal al-foil shielding layer, the foil shielding reduces interference and improves signal quality, making it suitable for environments with high levels of electromagnetic interference. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH  jacket.  This cable provide 100Mhz frequency bandwidth, the transmission speed is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.



Neetuo LAN cable are in accordance with ISO/IEC 11801, ANSI/TIA-568.2-D and UL standards, all materails are RoHS compliant, factory fluke test makes sure the deliveried cables meet relevant  industrial standards. The transmission speed of this cable is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.




Printing Mark

NEETUO LAN CABLE CAT5E F/UTP 24AWG COPPER

Packing

305m in roll in easy-pull box

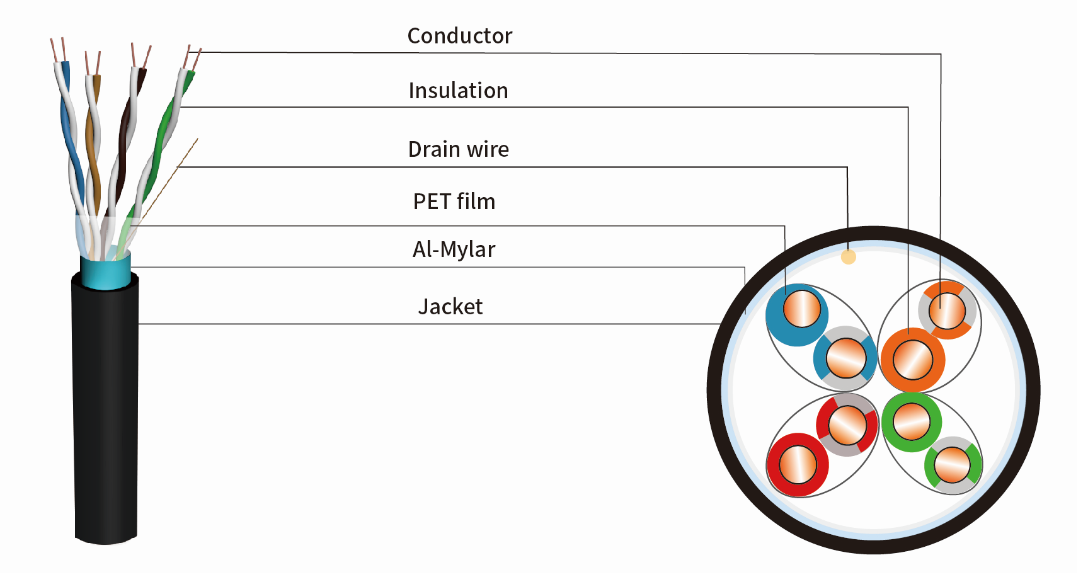

Conductor

Material

Oxgen free copper

Size

0.5mm*2*4

Insulation

Material

HDPE

OD

0.9±0.02mm

Color

(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)

Rip   Cord

Polymeter

Grouding   Wire

Material

Copper Wire

Size

0.45mm

Shielding

Type

4P twisted Cores overal

Material

Aluminium Mylar foil

Jacket

Material

PVC/LSZH/PE

Thickness

0.6mm

OD

5.0mm+0.2mm

Performance

Frequency

100Mhz

Speed

10/100/1000Base-T

Remarks:

Copper   could be replaced by CCA/CCS,or half Copper Half CCA/CCS;24AWG solid copper   could be replaced by 26AWG stranded copper,    please discuss the details with our sales
