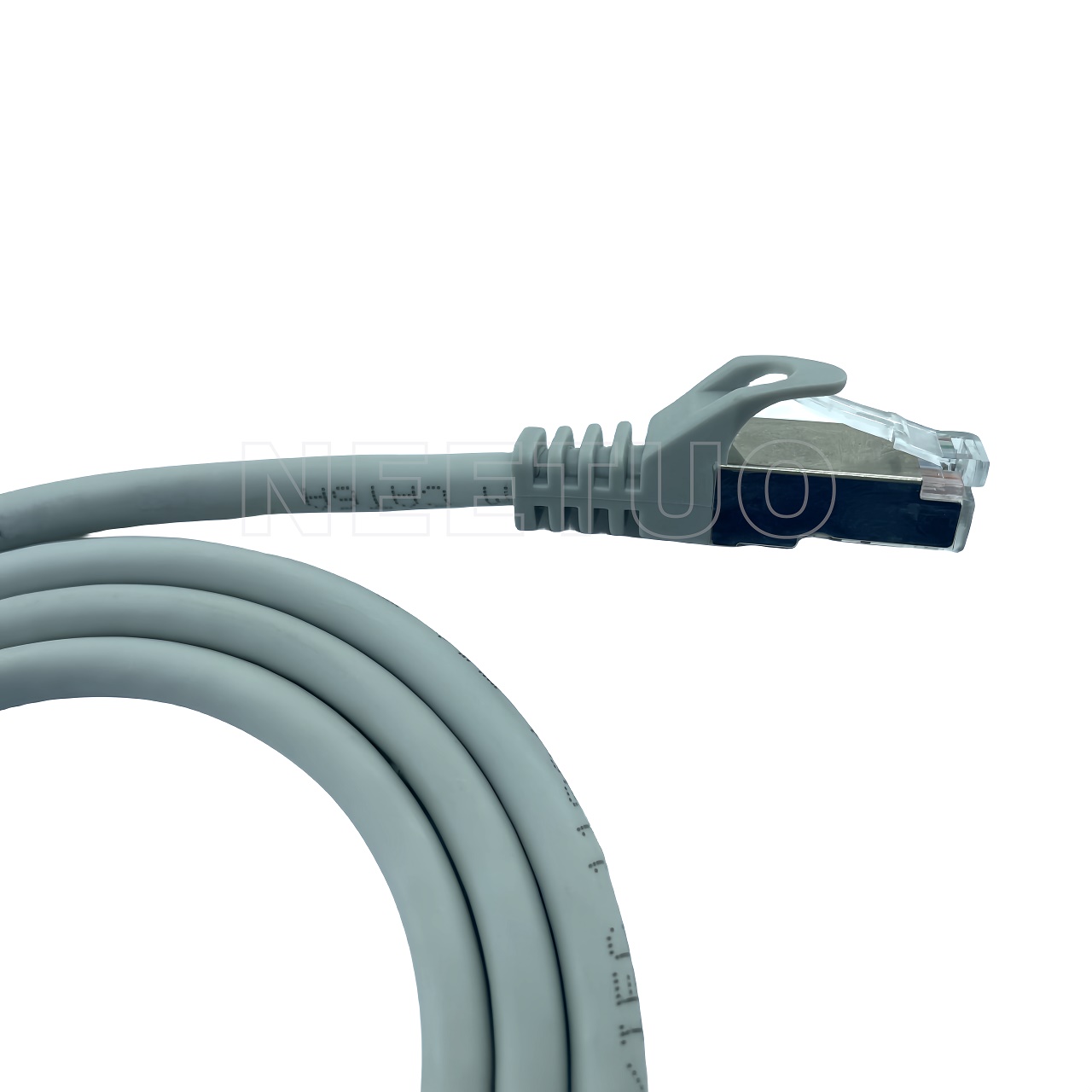

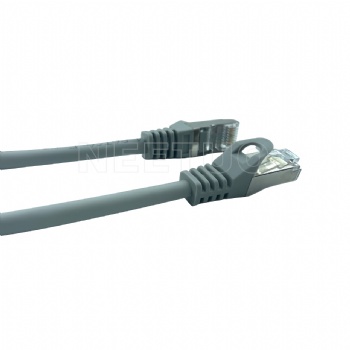

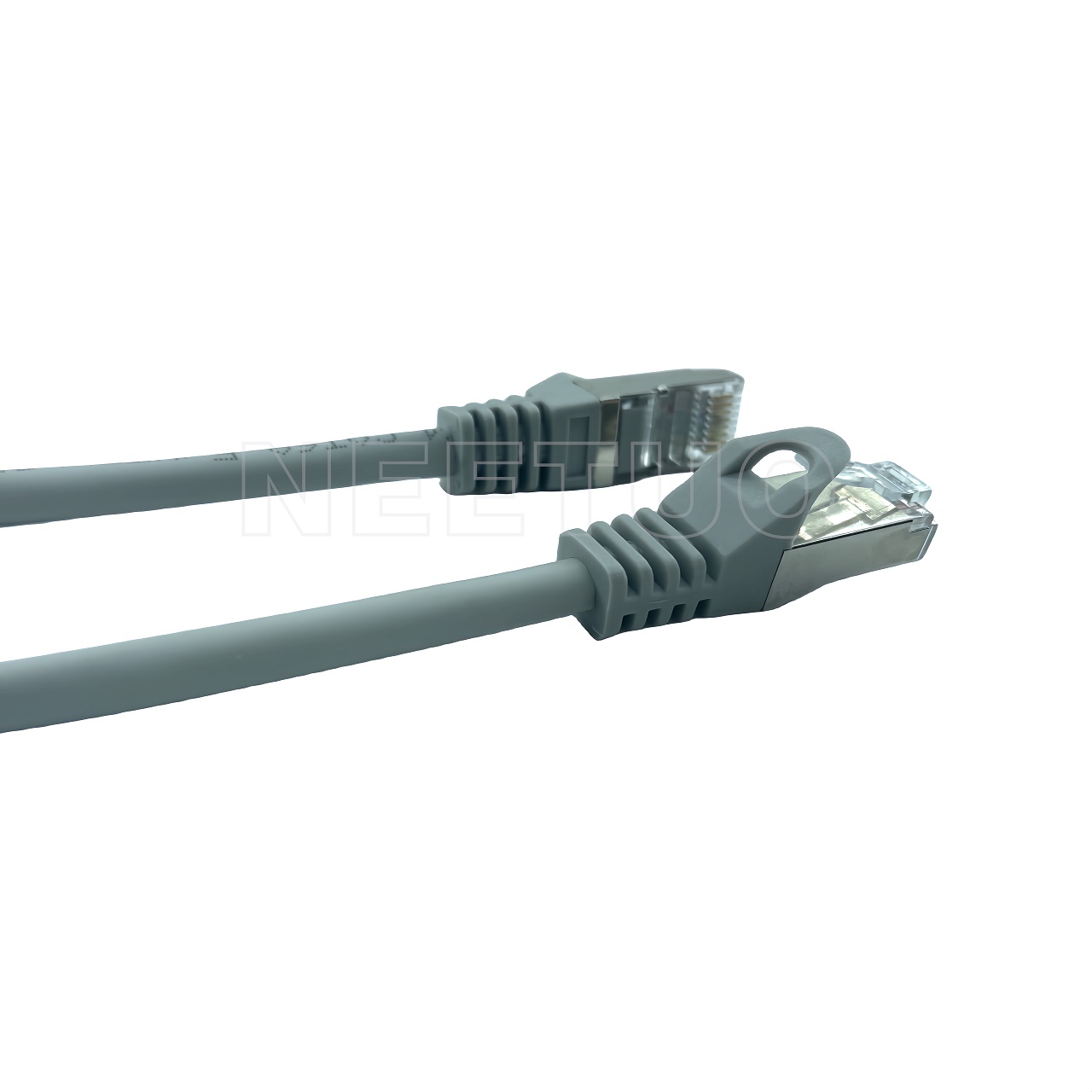

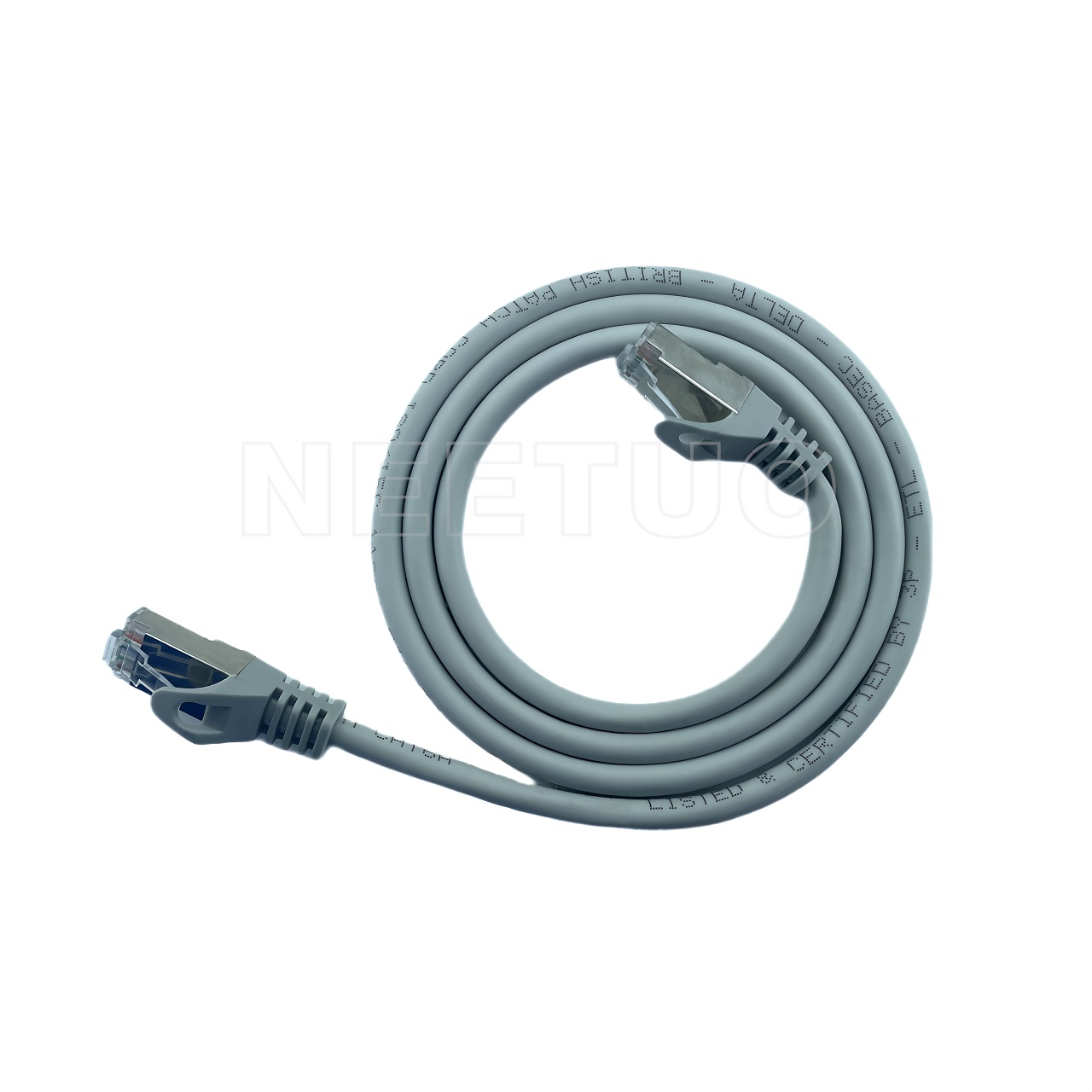

CAT6a FTP Patch Cable Snagless Molded Boot 26AWG Pure Copper

NEETUO premium CAT6a FTP Patch Cable is made of 26AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Description
Inquiry

Overview

Features:

●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards

●Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Provide superior electromagnetic interference protection and Maintain signal integrity over long distances

●Support Current and Future Category 6a/6/5e/5 Applications

Specification:

印字Printing Mark	NEETUO LAN CABLE CAT6a FTP 26AWG Stranded COPPER TIA/EIA568.B xx/xx/xxxx xxxxm
规格Category	CAT6a	屏蔽类型Shielding	铝箔屏蔽Foiled Shielding
导体Conductor	26AWG多股纯铜 26AWG Stranded Copper Wire	绝缘Insulation	HDPE
地线Grouding Wire	纯铜/铝镁合金丝 Copper/Al-Mg Alloy Wire	撕裂线Rip Cord	Polymeter
护套Jacket	PVC CM（圆形Round）	外径OD	5.6mm±0.2
接头Connector	RJ45水晶头注塑RJ45 Crystal Molded Boot 50μ''	线序Wire Scheme	T568B,Straight
Operation Temperature	-20 to +75°C	Installation Temperature	-10 to +50°C
