Brief Description:

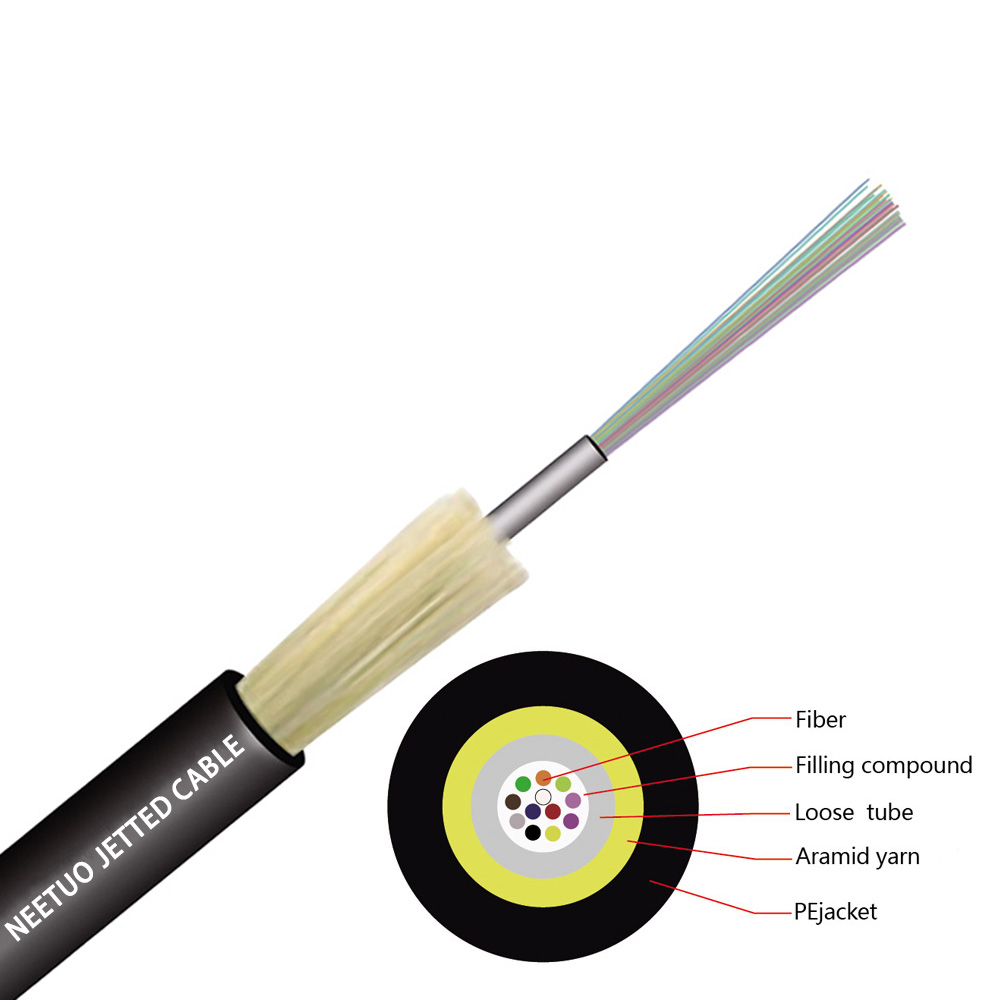

This cable has particular features comparing traditional Air Blown cable, 2-24F colored coated 250 fibers are housed in the central 2.4mm micro tube, with certain aramid yan around the tube, Black UV PE jacket makes the cable be anti-aging. The jacket could be designed grooved style. The cable can be directly terminated to MPO or other termination connectors. This cable is idea option for jetted applications in data center,office facilities where a small,highly flexibility cable is needed.

Fiber Options: SM G652D,SM G657A1,SM G657A2, MM OM1,OM2,OM3,OM4

Standard: ITU-T,IEC 60794-2-50, IEC 60794-5, IEC 60794-1-2,or YD/T 1460-2006

Main features:

•The cable design is such that cables may be installed by means of air assisted installation techniques into 8/6 mm or 8/5 mm

micro ducts.

• Cables can also be pushed in for considerable distances into suitable micro ducts (No need to use an air assisted installation

team for short distances).

• The cable is capable for up to 50m aerial installation.

• The thixotropic jell filled tube allows for excellent sustained reliability over a wide temperature range, and is engineered to

ensure the optical fibres remain stress free over the designated temperature range.

• Resistance to moisture ingress is achieved though dry water blocking aramid yarns.

• The High Density Polyethylene sheath is UV stabilised for outdoor applications.

• The fibre optic cable is a totally non-metallic construction and immune to any RF interference.
