Aerial Figure 8 GYXTC8S twisted steel wire
Aerial Figure 8 GYXTC8S twisted steel wire

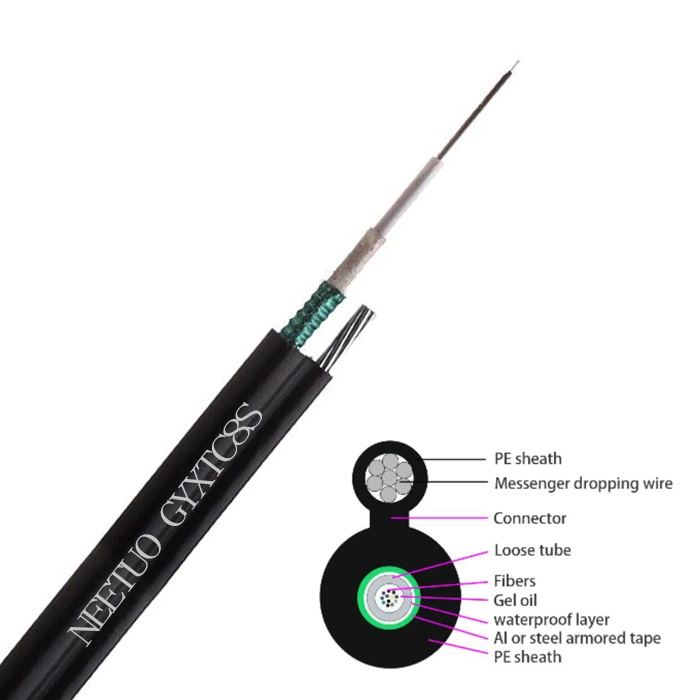

GYXTC8S Figure 8 Uni-Tube Self Supporting Fiber Cable
Characteristics:
* Independent stranded steel sire structure of figure 8 self-supporting provides high tension for the cable.
* Special gel in the tube offers critical protection for the fibers. * Small diameter and light weight make it easy to be installed.
* PE jacket itself prevents UV, and Anti-uv material can be added to perform much better.
* Good stability performance with high and low temperatures and anti-aging.
Applications:
* Aerial conduit
* FTTH
* wiring systems in shaft and buildings
Specifications:
Parameter | Values | |||||||||||||
Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | ||||||||
Central Tube | Diameter(mm) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||||||
Material | PBT | |||||||||||||
Water Blocking | Tube filling compund | |||||||||||||
Water Blocking | Material | Water Blocking tape | ||||||||||||
Ripcord Quantity(撕裂线数量) | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
Self-supporting wire | 7/1.0mm | |||||||||||||
Sheath | Material | MDPE,black | ||||||||||||
NomThickness(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||||||
Overal diameter(nom.)(mm)(±0.2) | 7.2*10.9 | 7.2*10.9 | 7.2*10.9 | 7.2*10.9 | 7.2*10.9 | 7.2*10.9 | ||||||||
Cable Weight/kg | 59 | 59 | 59 | 59 | 59 | 59 | ||||||||
Tension Strength | Short Term(N) | 600 | 600 | 600 | 600 | 600 | 600 | |||||||
Long Term(N) | 300 | 300 | 300 | 300 | 300 | 300 | ||||||||
Crush Resistance(N/100mm) | Short Term | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||||
Long Term | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | ||||||||
Min.Bending Radius(mm) | Static | 10D( D is the cable diameter) | ||||||||||||
Dynamic | 20D | |||||||||||||
Temperature Range (℃) | Storage | -30~+60 | ||||||||||||
Installation | -10~+60 | |||||||||||||
Operation | -30~+70 | |||||||||||||
