ROC Drop Cable Bend Insentive Optical Fiber G657A1 1F

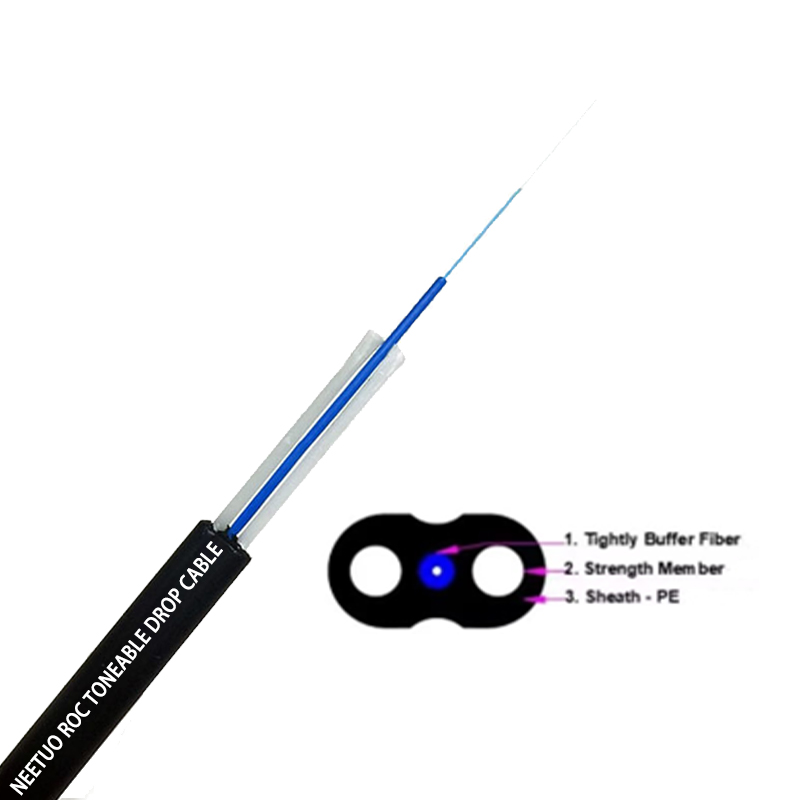

This cable is developped together with the hardened connectors, this cable adopts 0.9mm tight buffer to house the bend insentive fiber G657A1, two parrel FRP as reinforcement elements are put alongside the tube to provide tensile strength and protect the optical fiber. The cable is jacketed by UV-resistant HDPE with smooth and neat appearance. Due to small diameter and high flexibility,ROC cable is widely used in FTTH networking system,especially together with our OptiTap hardened connectors, MST box and other terminal box.

Production Brief Introduction:

This cable is customized for North American market together with the hardened connectors, this cable adopts 0.9mm tight buffer to house the bend insentive fiber G657A1, two parrel FRP as reinforcement elements are put alongside the tube to provide tensile strength and protect the optical fiber. The cable is jacketed by UV-resistant HDPE with smooth and neat appearance. Due to small diameter and high flexibility,ROC cable is widely used in FTTH networking system,especially together with our OptiTap hardened connectors, MST box and other terminal box.



Fiber G657A1 specification:

Items

Content

Value

Attenuation Coefficient

@1310nm

≤0.36dB/km

@1550nm

≤0.21dB/km

Mode field diameter

(MFD)

@1310nm

8.6±0.4μm

@1550nm

9.6±0.4μm

Cable cutoff wavelength λcc(nm)

≤1260nm


Micro bending lose(1 turn,7.5mm radius)

@1550nm

≤0.5dB

@1625nm

≤1.0dB

Geometrical characteristics

Cladding diameter

125±0.7μm

Cladding non-circularity

≤1%

Core concentricity error

≤0.5μm

Fiber diameter with coating (uncolored)

245±7μm

Cladding/coating concentricity error

≤12.0μm

Proof stress level

≥100kpsi

*G652D,G657A2 are available upon requirement

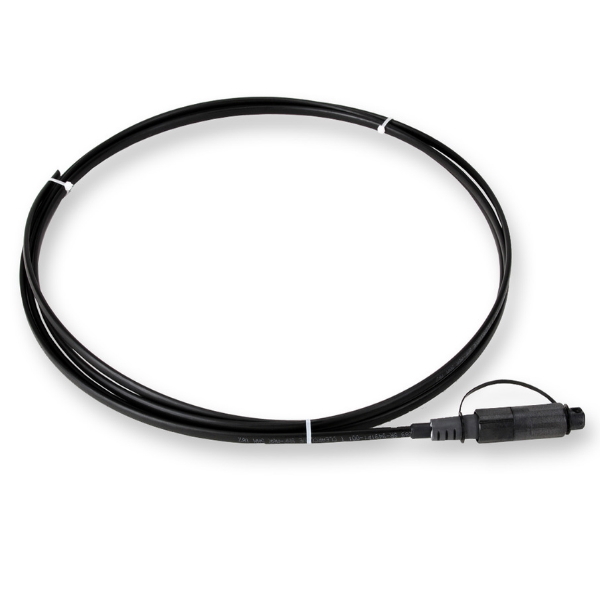

ROC Drop Cable assemblies preconnectorized with hardened connectors:



Main Features:

-    Small cross section

-    High flexibility

-    Easy installation in termination and ONT.

-    Excellent mechanical & environmental Characteristics

-    Available in pre-connectorized assemblies with hardened OptiTap connector and adatper

-    Dielectic structure.

Applications

-    FTTX

-    Direct Burial/Duct/Aerial application

-    Indoor & Outdoor application

-    Subscriber network system & Long haul communication system



Cable Specification:

Fiber Count

Copper Wire

NEETUO Part#

Diameter

Cable weight

Tensile Loading

Crush Resistance    N/100m

Bending Radius

mm

Kg/km

Long term

Short term

Long term

Short Term

1

/

NT-ROC1-01

3.0*5.4mm±0.2

16

300

800

300

1000

20D

1

24AWG

NT-ROC2-02

3.0*6.6mm±0.2

18

300

800

300

1000

20D
