Air blowing Optical Fiber Cable GCYFY Black

Air blowing Optical Fiber Cable GCYFY

Description
Inquiry

1.General Description

1.1 Brief Introduction:

This product ABF Cable has good mechanical performance and the environmental performance, weight light,

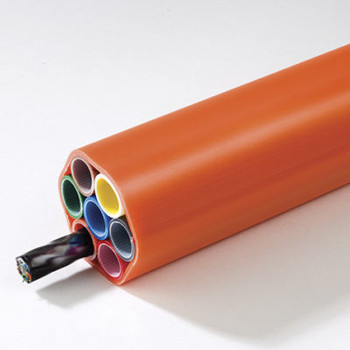

diameter is small, optical fiber capacity is big,up to 288F, sheath friction coefficient is low, it is for installation into micro-duct by blowing using air pressure using air-blowing machine. This air blowing cable is suitable for micro tube size around 14/10mm.

Air Blowing Cable with.jpg

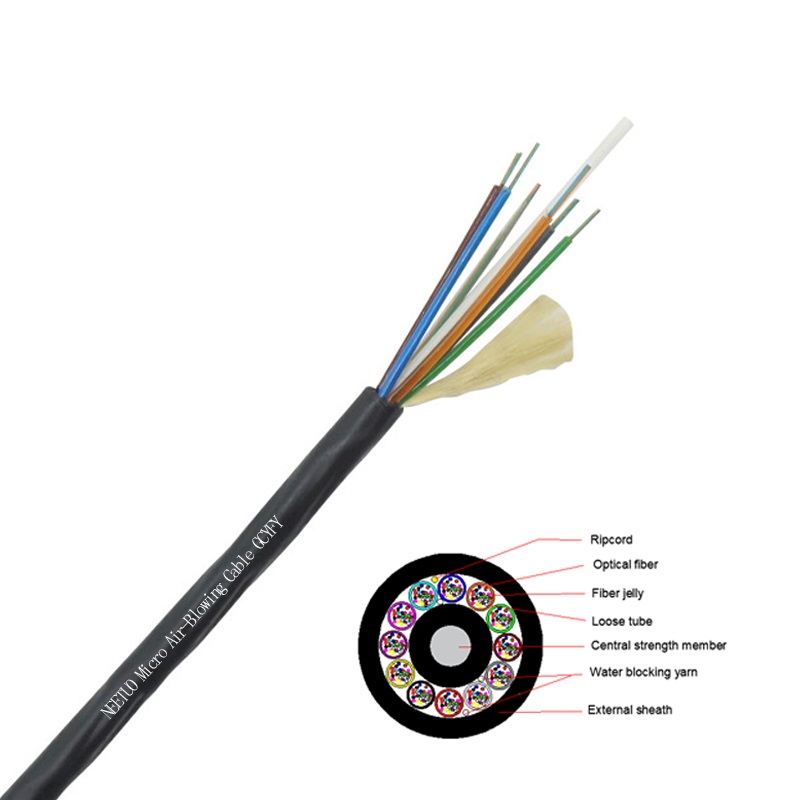

1.2 Structure description:

• Central strength member (CSM): FRP rod

• Fiber 2-288F IUT-T G652D

• Loose tube containing fibers and filled with a suitable water tightness filling compound

• Loose tubes SZ stranded around CSM

• Longitudinal water tightness: dry core with water swellable elements

• Outer Sheath: Black HDPE

• All materials are RoHS compliant

2. Specificaiton:

Parameter			Specifications
Fiber Count(F)			2-72	96	144	288
Loose Tube	Material		PBT
	Water-blocking Material		Fiber jelly
	Fiber/tube		12
Cable Core	Element		6LT	8LT	12LT	24LT
	Filler rod		0	0	0	0
	Water-blocking Material		Water-blocking yarn
Central Strength Member	Material		FRP rod(Coated with PE if needed)
Ripcord Quantity			1
Sheath		Material	HDPE,black
		Nominal Thickness(mm)	0.5mm
Overal diameter(nom.)(mm)(±0.2)			5.3	6.2	7.9	9.4
Tensile Strength(N)		Short Term	500			1000
Crush Resistance(N/100mm)		Short Term	450
Min.Bending Radius(mm)		Static	10D( D is the cable diameter)
		Dynamic	20D
Cable Attenuation(dB/km)		At 1310nm	≤0.36
		At 1550nm	≤0.22
Temperature Range (℃)		Storage	-20~+60
		Installation	-10~+40
		Operation	-30~+70
