GJXH/GJXFH INDOOR DROP CABL

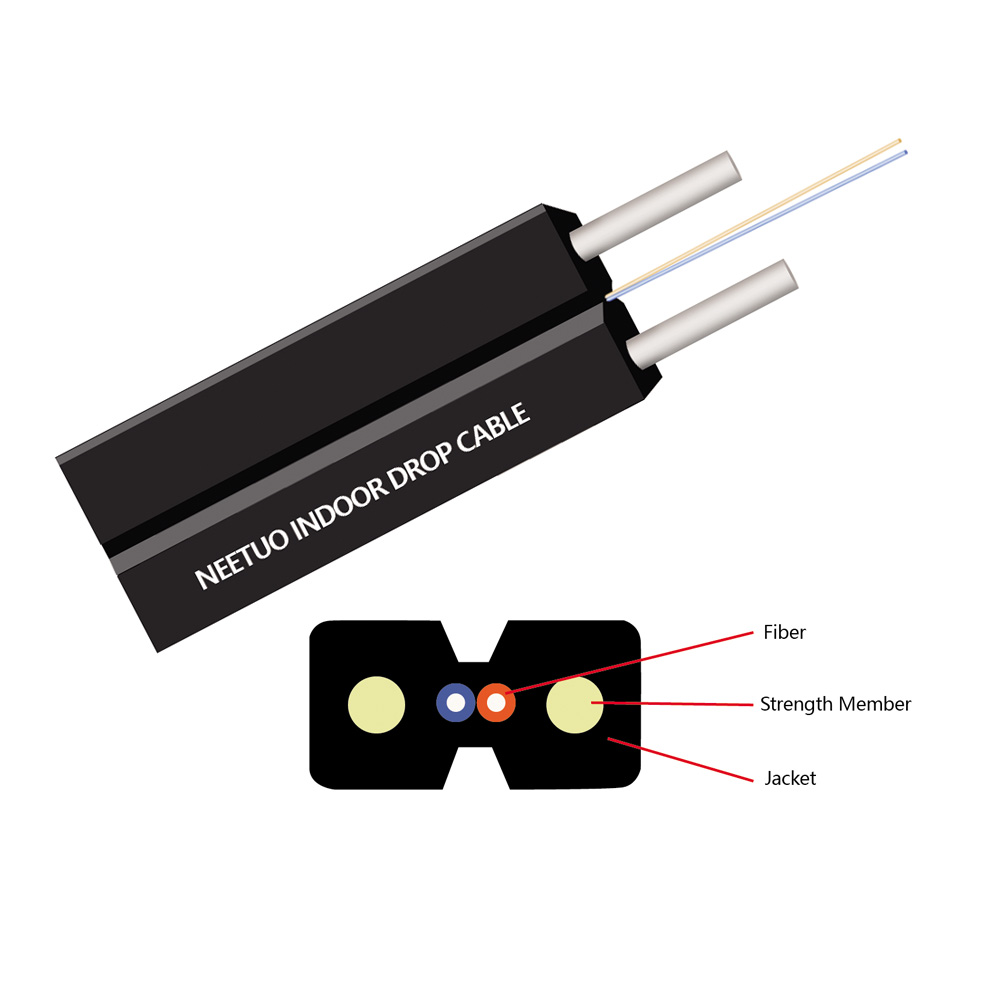

Bow tie type cross-section design, LSZH a PVC jacket protection.
Two parallel FPR or galvanized steel wire reinforcement to protect the fiber end provide adequate tension and pressure.
Rolex flex fiber, to provide greeter bandwidth and enhance network transmission characteristics.
Easily peeled off, light weight, small size, unique groove design, easy to follow the installation and maintenance.

Characteristics:
Bow tie type cross-section design, LSZH a PVC jacket protection.
Two parallel FPR or galvanized steel wire reinforcement to protect the fiber end provide adequate tension and pressure.
Rolex flex fiber, to provide greeter bandwidth and enhance network transmission characteristics.
Easily peeled off, light weight, small size, unique groove design, easy to follow the installation and maintenance.



Applications:
Room indoor wiring
FTTH optical home.User terminal
Wiring systems in shafts and buildings



Standard:
ICEA-596, GR-409,YD/T1997-2009



Ordering information:
fiber count:2-12 cores
fire types
For example:GJXFH 2cores SM/G657A1



Specification:

fiber count

(mm)parallel reinforcement specification

mmouter diameter

g/Mweight

maxNtension

Nmax crush resistance

MMbending radius

 short time

long time

short time

 long time

static

 Dynamic

1-4

Φ0.45mm

3.0*2.0mm

8

50

100

300

1000

15H

30H

6

Φ0.45mm

3.5*2.0mm

9

50

100

300

1000

15H

30H

8

Φ0.45mm

4.0*2.0mm

10

50

100

300

1000

15H

30H

12

Φ0.45mm

5.0*2.0mm

11

50

100

300

1000

15H

30H





12 colors of bare fibers:

  blue

    orange

   green

    brown

   gray

   white

   red

   black

   yellow

     purple

     pink

   Aqua
