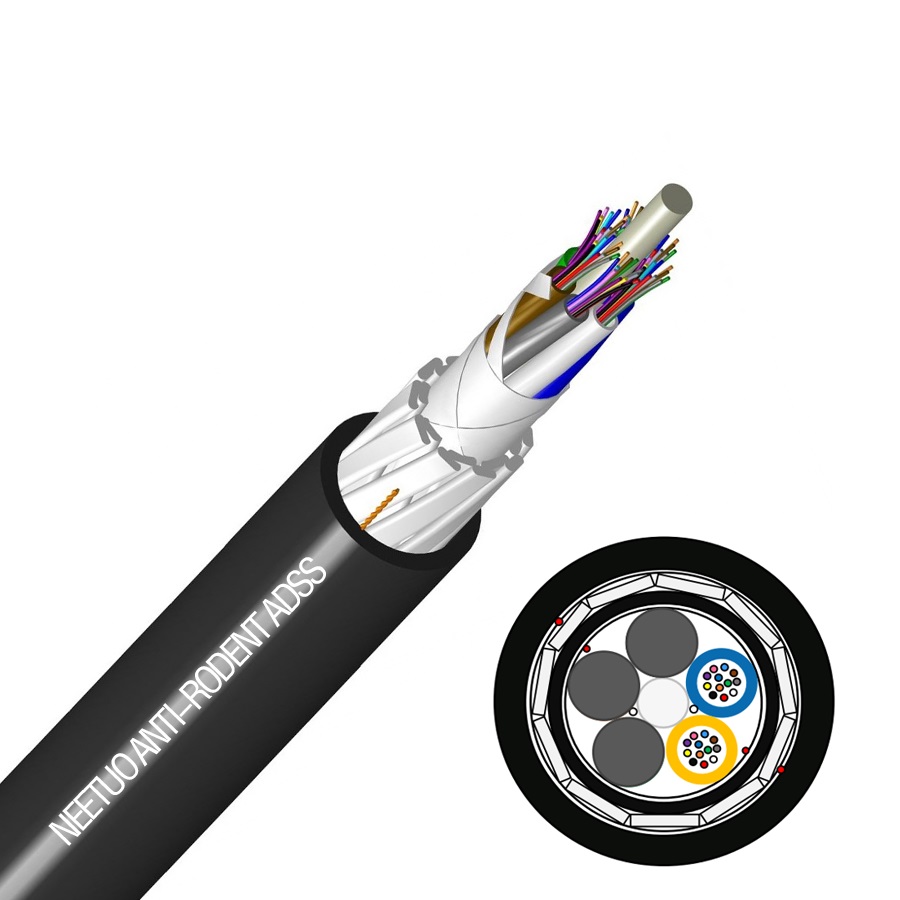

Anti-Rodent ADSS Cable 48F 400M Span
Anti-Rodent ADSS Cable 48F 400M Span
ADSS-48 G.652D Span 400m Anti-rodent, Double Jacket
Max Span: 400m Max applied voltage:110kV
Max operating weather conditions: 25m/s wind speed and no ice load

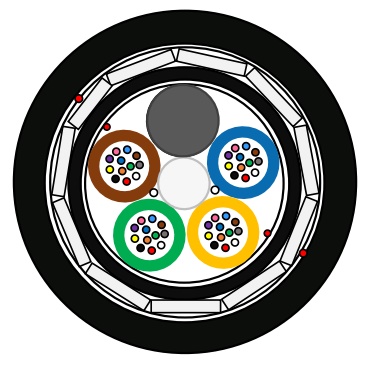

Cable Structures:
⚫ Central Strength Member (CSM): Glass fiber
reinforced plastic rod (GFRP).
⚫ Loose Tube: PBT plastic material, containing 12
fibers and filled with a suitable water tightness jelly.
⚫ Filler Elements: PP plastic rods, when needed.
⚫ Stranding: Loose tube & filler SZ stranded around
CSM.
⚫ Longitudinal Water Tightness: Dry core with water
swellable elements.
⚫ Ripcord: 2 polyester ripcords under each sheath.
⚫ Falt FRP: Flat FRP as additional strength member
and anti-rodent member.
⚫ Inner Sheath: Black MDPE.
⚫ Outer Sheath: Black HDPE.
Specifications:
Item | Value |
Cable Cores | 48F |
No.of Tubes | 4 |
Fiber count in tube | 12 |
No. of fillers | 1 |
Tube/filler mm | 2.2 |
CSM mm | 1.8 |
Inner sheath mm | 0.7 |
Outer sheath mm | 1.8 |
Cable Diameter mm | 13.4±0.5 |
Cable Weight KG/km | 150±15 |
Tension Force(MAT) N | 10000 |
Max Span m | 400 |
Install Sag % | 1.4 |
Operation Temperature ℃ | -25~+70 |
