OPWG NTOFC-OPGW-24-B1-42-54.0-9.3

OPWG NTOFC-OPGW-24-B1-42-54.0-9.3

1. Product Description:

OPGW Cable, Optical Fiber Composite Overhead Ground Wire, also known as Fiber Composite Overhead line. The optical fiber is placed in the
ground line of overhead high voltage transmission line and used to form the optical fiber communication network on the
transmission line. This structure has the double function of ground wire and communication, commonly known as OPGW optical cable.

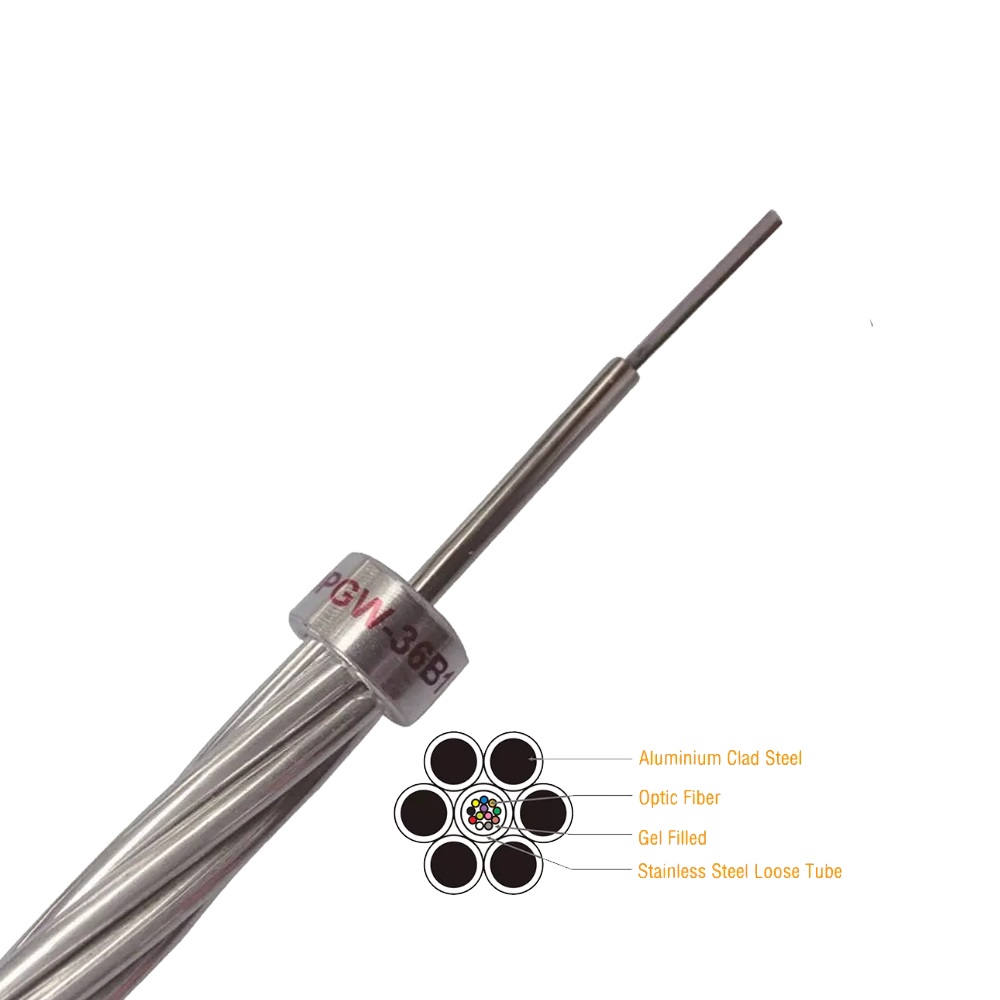

1. Central Tube Optical Ground Wire (OPGW)
Description:
The Central Tube Optical Ground Wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires
and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.


2. Structure Parameters

Item

Type

Value





Fiber

G652D

24F





Cnetral

SUS tube

1


3.0mm OD



First Layer

20.3% AS wire

6


3.0mm OD





3. Technical Specification:

Standard

IECIEEEDL/T   832-2003GB/T 7424.4-2003

Twisting

The   anti-corrosion ointment is filled between the center line and each layer, and   the outermost layer is twisted in the way of Z-twisting

OD   of the Cable

9.0mm

Weight   of the cable

304kg/km

Cross-sectional   area

42mm2

(AS   area 42.41mm2    AA area 0.00mm2)

RTS

54.0kN

E-modulus

162.0kN/mm2

Thermal   expansion coefficient

13.0×10-6/

MAT

509.2N/mm2

Every   day streeEDS) (16%~25%   RTS)

203.7~318.3N/mm2

Ultimate   special stress

891.1N/mm2

DC   Resistance

2.027Ω/km

Short   Circuit Current(0.25s, 40~200)

6.1kA

Short   circuit current capacity I2t

9.3kA2s

Min   Bending Diameter

Operation:   180mm

Working:135mm

Pull-to-weight   ratio

18.1km

Temperature   Range

Installation: -10   ~ +50

Transportation   and Working: -40 ~ +80
