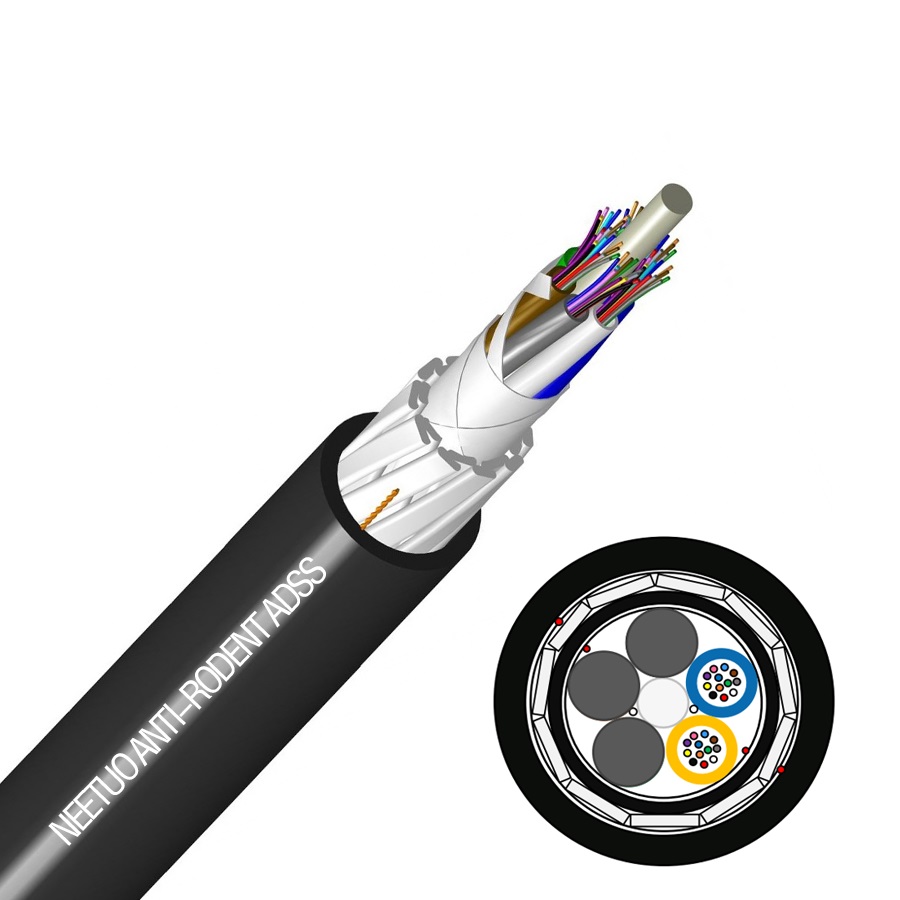

Anti-Rodent ADSS Cable 48F 200M Span
Anti-Rodent ADSS Cable 48F 200M Span
ADSS-48 G.652D Span 200m Anti-rodent, Double Jacket
Max Span: 200m Max applied voltage:110kV
Max operating weather conditions: 25m/s wind speed and no ice load

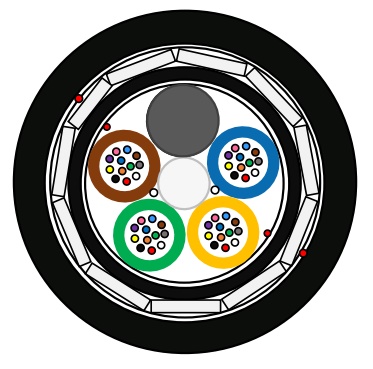

Structure：
Specification：
Item | Value |
Cable Cores | 48F |
No.of Tubes | 4 |
Fiber count in tube | 12 |
No. of fillers | 1 |
Tube/filler mm | 2.2 |
CSM mm | 1.8 |
Inner sheath mm | 0.7 |
Outer sheath mm | 1.7 |
Cable Diameter mm | 13.2±0.5 |
Cable Weight KG/km | 145±15 |
Tension Force(MAT) N | 7000 |
Max Span m | 200 |
Install Sag % | 1.0 |
Operation Temperature ℃ | -25~+70 |
