Product Description:

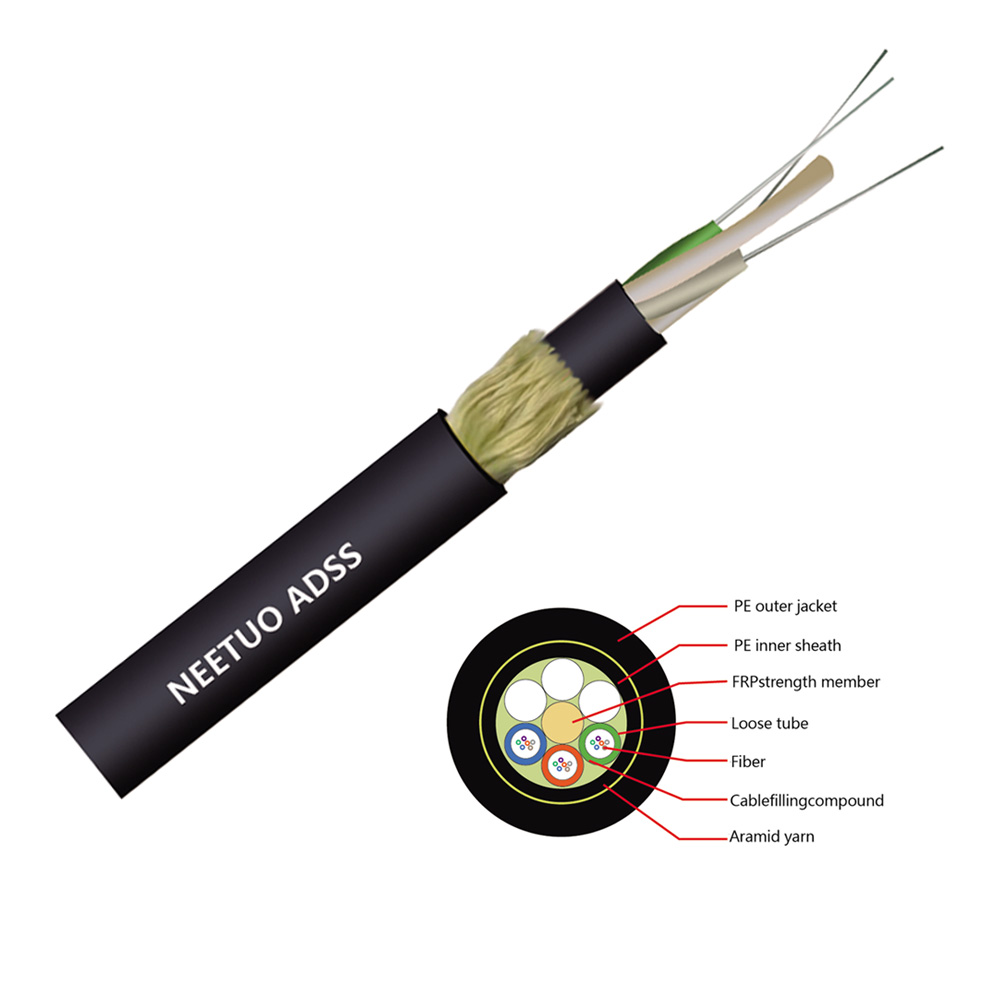

ADSS optical cable adopts loose tube layer stranded structure, the ф250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filler rope) is twisted around the non-metallic reinforcement core (FRP) into a compact cable core, and the gap of the cable core is filled with water blocking grease. The inner sheath of polyethylene (PE) is extruded outside the cable core, then the aramid fiber is twisted for reinforcement, and finally the outer sheath of polyethylene (PE) or the outer sheath of tracking resistance (AT) is extruded.

Characteristics:
·Can be erected continuously.

·Adopt AT sheath with superior tracking resistance.

·Light weight and small cable diameter reduce the impact of ice, wind and loads on towers and supports.

·With large span, the maximum span exceeds 1000m.

·Excellent tensile properties and temperature characteristics.

· Life expectancy of up to 30 years.

Applications:
The design of ADSS optical cable fully considers the actual situation of the power line and is suitable for high-voltage transmission lines of different grades. Polyethylene (PE) sheaths can be used for 10KV and 35KV power lines.

·For 110KV and 220KV power lines, the cable hanging point must be determined by calculating the electric field intensity distribution and the tracking-resistant (AT) outer sheath must be used.

·The amount of aramid fiber and the perfect stranding process are carefully designed to meet the application requirements of different spans.STANDARD:
IEEE P 1222&IEC60794-1

Ordering information:

*Pls fill as much as you can

3. Part No.:

NTOFC-ADSS-S-100-HDPE-BK-SMD-C

    1     2  3  4     5   6    7

4. Specification:
