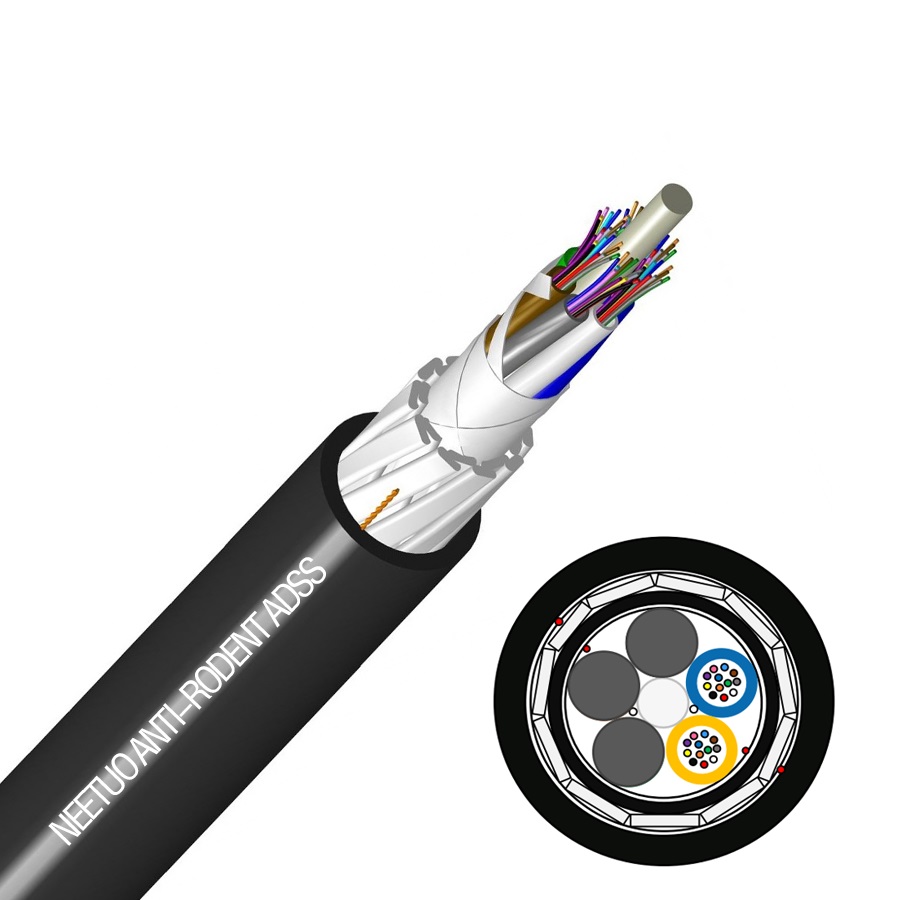

ADSS-24 G.652D Span 600m Anti-rodent, Double Jacket

Max Span: 600m Max applied voltage:110kV

Max operating weather conditions: 25m/s wind speed and no ice load

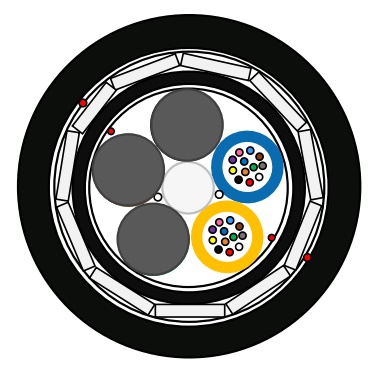

Structure:

24F 200M.jpg


Specification:

Item

Value

Cable Cores

24F

No.of Tubes

2

Fiber count in tube

12

No. of fillers

3

Tube/filler mm

2.2

CSM mm

1.8

Inner sheath mm

0.7

Outer sheath mm

1.8

Cable Diameter mm

13.9±0.5

Cable Weight KG/km

160±15

Tension Force(MAT) N

12000

Max Span m

600

Install Sag %

1.8

Operation Temperature ℃

-25~+70
