Micro Drop Cable G657A2

1.General Description
1.1 ,The fibre optic cable is a totally non-metallic structure and immune to any RF interference. The central tube is filled with thixotropic jell which allows for excellent sustained reliability over a wide temperature range, and is engineered to ensure the optical fibres remain stress free over the designated temperature range. The aramid yarn increase the tensil strength as well as for resistance to moisture ingress. The HDPE(High Density Polyethylene) sheath is UV stabilised for outdoor applications.
1.2, This cable is designed for outdoor aerial installation,or installation into micro duct. The span is up to 50m in aerial installation.
1.3, This cable has mature and stable production engineering, strict requirements of quality control, scheduled validation product performance to ensure the product reliability., the cable has up to life-span of

Description
Inquiry

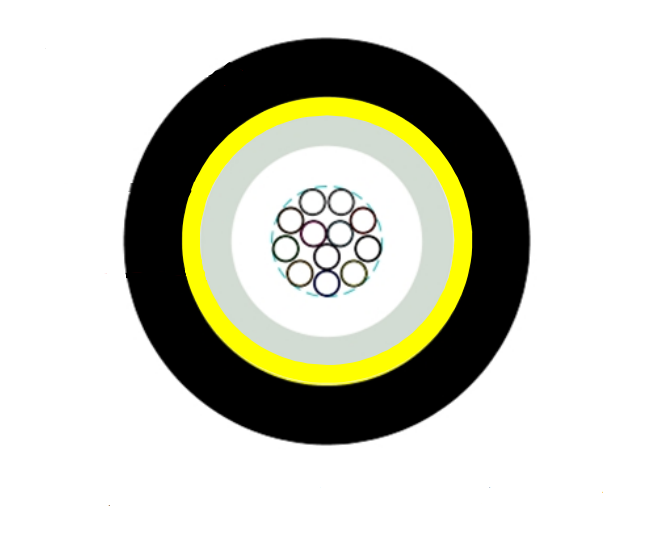

2. Cable Structure and Physical Properties:

No.	Item	Parameters
Optical Fiber	Type of fiber	G657A2
	No. of Fiber	2
	Color	Blue,Orange
Loosen tube	No. of tube	1
	Tube Diameter	2.4mm
Sheath	Material	HDPE
	Thickness	0.6mm
Cable Diameter(nominal)		3.8mm
Cable Weight(nominal)		12kg/km
MAX installation load( ≤ 0.25% fibre strain)		144N
Minimum bend radius (long term/short term )		30/12mm
Crush Resistance (via 100mm plates)		650N
Torsion		10 Cycles 180°apart
Repeated Bending		35 Cycles R=20xD
Temperature Performance		-10°C to +70°C
Water penetration (3m cable, 1m head of water)		No leakage
Drip test (300 mm sample of loose tube @ 80˚C)		No leakage
