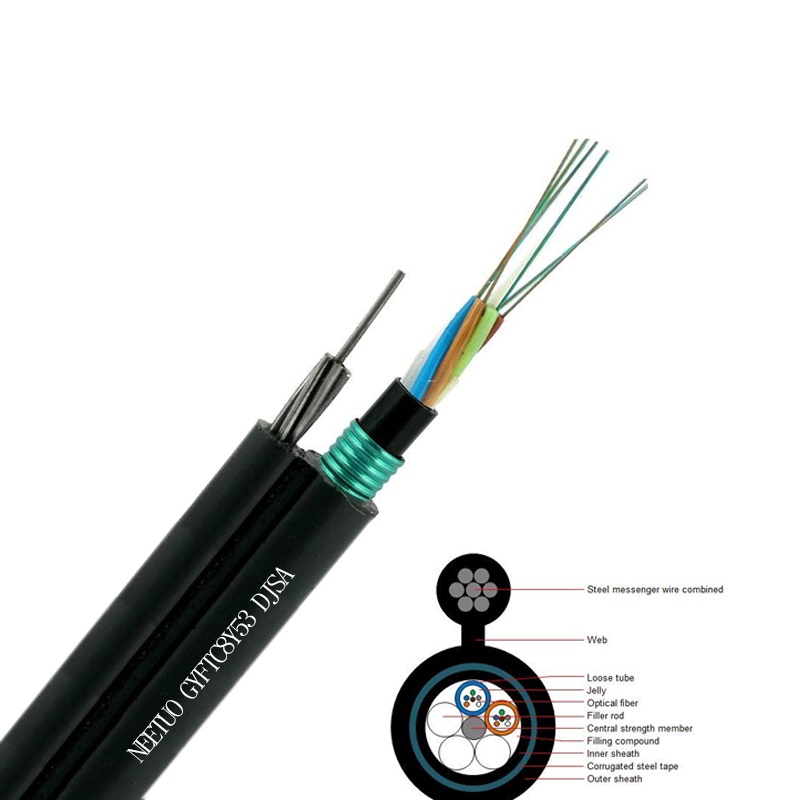

Aerial Figure 8 DJSA Fiber Optic Cable GYFTC8Y53

Aerial Figure 8 Fiber Optic Cable Double Jacket Single Armoring DJSA GYFTC8Y53

Loosen tube stranding,

metal strength member,

Flooding jelly compound,

steel tape armored ,

dual PE sheath,

"8" layer

Specification:

Parameter			Values
Fiber Count			12	24	48	96
No.of Fiber Per Tube			6	6	12	12
No. of Elements			5	5	5	8
Diameter of Tube			1.8	1.8	2.0	2.0
Central Strength Member	Diameter(mm)		1.5	1.5	1.6	2/3.5
	Material		FRP
Water Blocking	Material		Cable jelly
Thickness of Inner Sheath PE(mm)			0.8
Armoring layer			0.22mm corrugated steel tape
Outer Sheath		Material	MDPE,black
		NomThickness(mm)	1.8
Messenger Wire			7*1.0mm steel wire
Thickness of messenger sheath(mm)			1.0
Web size(Height x width) (mm) (±0.5)			2.6*1.9
Overal diameter(nom.)(mm)(±0.2)			11.5*18.9	11.5*18.9	12.0*19.4	13.9*21.3
Cable Weight/kg			190	193	205/	254
Tension Strength		Short Term(N)	6000
Crush Resistance(N/100mm)		Short Term	2000
Min.Bending Radius(mm)		Static	12.5D( D is the cable diameter)
		Dynamic	25D
Temperature Range (℃)		Storage	-40~+70
		Installation	-10~+60
		Operation	-40~+70
