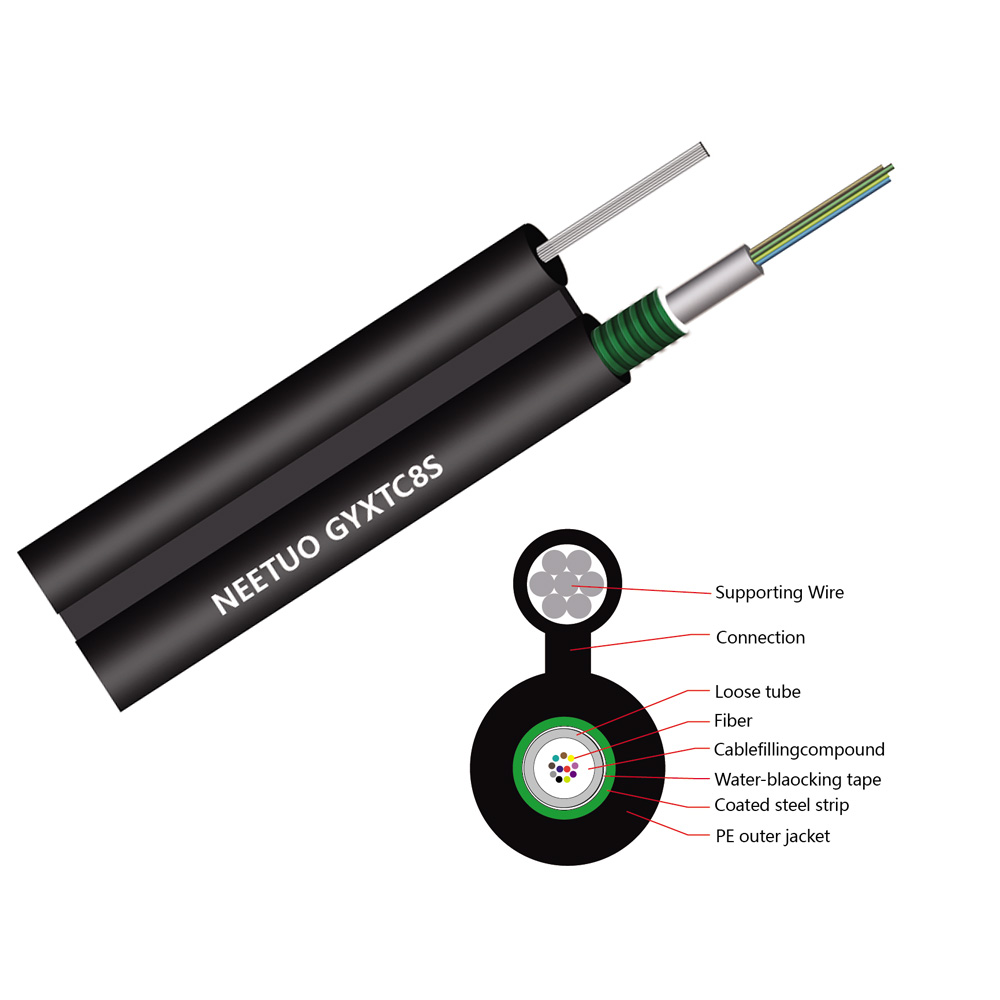

figure 8 central loose tube （GYXTC8S）
Independent stranded steel sire structure of figure 8 self-supporting provides high tension for the cable.
Special gel in the tube offers critical protection for the fibers.
Small diameter and light weight make it easy to be installed.
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.
Characteristics:
Independent stranded steel sire structure of figure 8 self-supporting provides high tension for the cable.
Special gel in the tube offers critical protection for the fibers.
Small diameter and light weight make it easy to be installed.
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.
Applications:
Aerial
FTTH
wiring systems in shaft and buildings.
STANDARD:
YD/T 1155-2011&IEC60794-1
Ordering information:
fiber count:2-12 cores
fire types
For example: GYXTV8S 8 CORES SM/G652D
Specification:
fiber count | （mm） Supension wire diameter | （mm）outer diameter | （g/M）weight | max（N）tension | （N）max crush resistance | （MM）bending radius | |||
short time | long time | short time | long time | static | Dynamic | ||||
2-8 | ∮1.0*7 钢绞线 steel stranded wire | 5.5*12.0 MM D*H | 48 | 400 | 1000 | 300 | 1000 | 15H | 20H |
12 colors of bare fibers:
blue | orange | green | brown | gray | white | red | black | yellow | purple | pink | Aqua |
