Minibreakout Cable Indoor/Outdoor OM2
NEETUO develops this cable for our customer as required, it is similar to breakout cable, 2.0mm tight buffer and aramid reinforcement make the cable applicable to be factory terminated at each tight buffer core. With jacket Anti-UV FRNC(flame retardant LSZH), it is used for both indoor and outdoor application, the glass yarn armored layer make this cable be anti-rodent. The small and light weight make this cable be easy for installation.
Production Brief Introduction:
NEETUO develops this cable for our customer as required, it is similar to breakout cable, 2.0mm tight buffer and aramid reinforcement make the cable applicable to be factory terminated at each tight buffer core. With jacket Anti-UV FRNC(flame retardant LSZH), it is used for both indoor and outdoor application, the glass yarn armored layer make this cable be anti-rodent. The small and light weight make this cable be easy for installation.

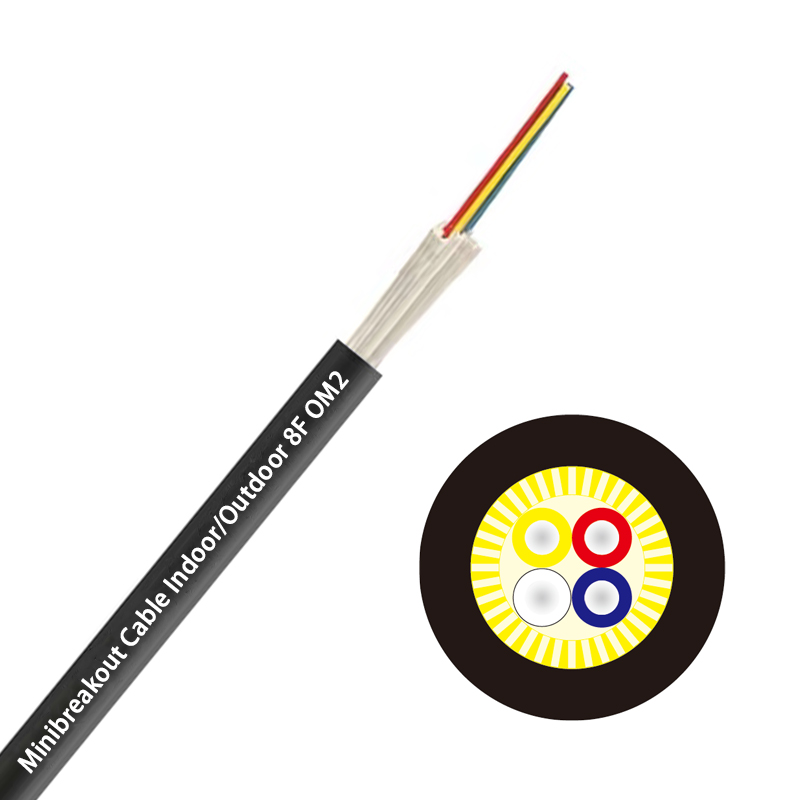

Cable Structure:
Core type: tight buffer
Reinforcement element: aramid yarn
Armoring: Glass yanrs
Jacket: FRNC
Color:Black

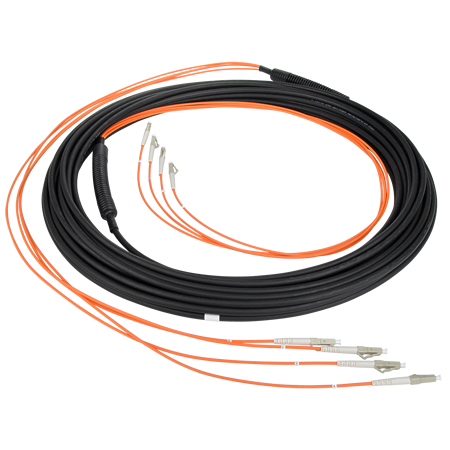

Cable assemblies preconnectorized with LC connectors:
Fiber Count | Fiber type | OD app.mm | Max Tensil strength N | Min stat.bending radius mm | Weight kg/Km |
4 | OM2 50/125 | 6.1 | 2000 | 90.0 | 40 |
4 | OM1 62.5/125 | 6.1 | 2000 | 90.0 | 40 |
4 | G652D E9/125 | 6.1 | 2000 | 90.0 | 40 |
6 | OM2 50/125 | 6.6 | 2000 | 100.0 | 47 |
6 | OM1 62.5/125 | 6.6 | 2000 | 100.0 | 47 |
6 | G652D E9/125 | 6.6 | 2000 | 100.0 | 47 |
8 | OM2 50/125 | 6.6 | 2000 | 100.0 | 51 |
8 | OM1 62.5/125 | 6.6 | 2000 | 100.0 | 51 |
8 | G652D E9/125 | 6.6 | 2000 | 100.0 | 51 |
10 | OM2 50/125 | 8.0 | 2000 | 120 | 65 |
