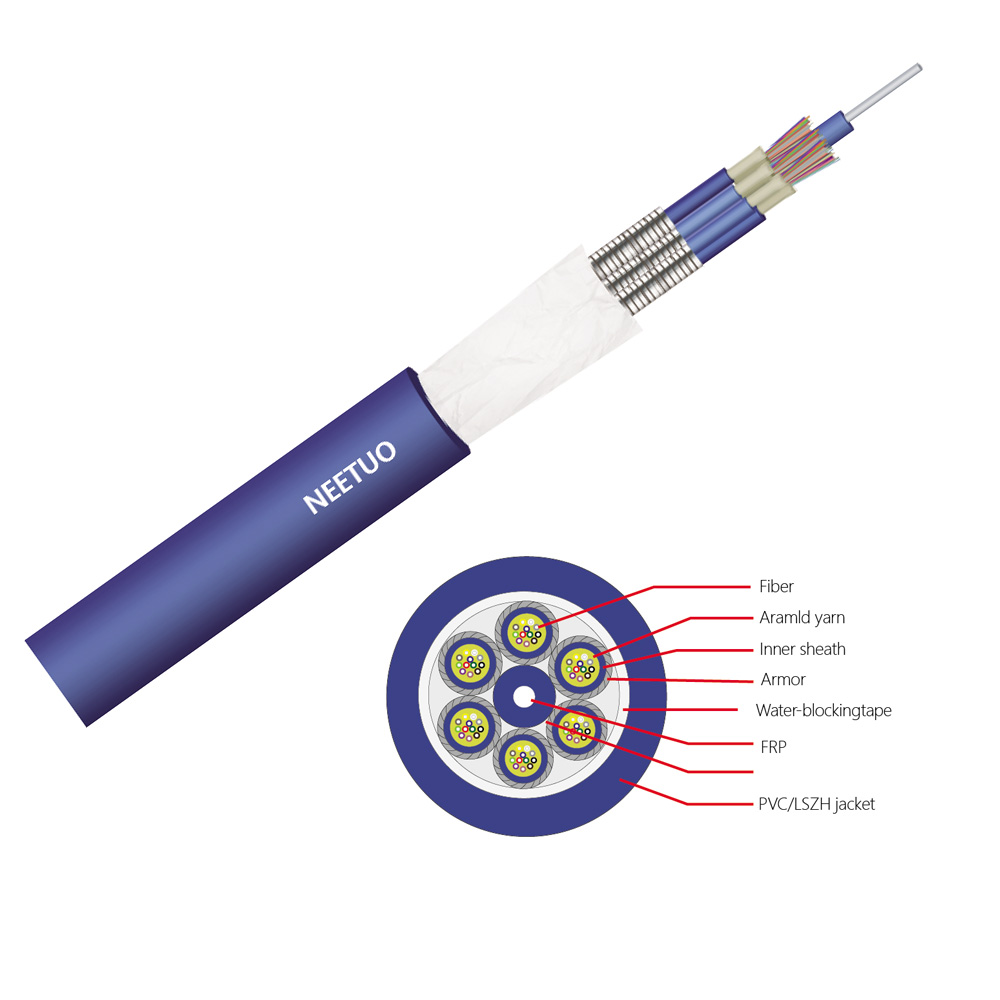

Multi-cores Breakout Armored cable (GJSFJV) with Armor on Sub-Units

LSZH or PVC jacket.
It is the construction stainless steel tube with Dupont aramid yarn provide the cable enough tensile strength and pressure strength.
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.
Circular section design. convenient line grooves. pipes Small volume.good bending radius,easy to stripping, convenient for operation.

Characteristics:
LSZH or PVC jacket.
It is the construction stainless steel tube with Dupont aramid yarn provide the cable enough tensile strength and pressure strength.
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.
Circular section design. convenient line grooves. pipes Small volume.good bending radius,easy to stripping, convenient for operation.



Applications:
Room indoor wiring.
FTTH optical home, user terminal.
Shaft, building wiring.



Ordering Information:
1.Fiber type in details
For example: GJSFJV 48core SM/G657A2
Standard:
ICEA-596, GR-409, YD/ T2488-2013
2.Fiber type in details:
For example: GJSF JV 48core SM/G657 A2



Specifications:

fiber count

(mm}

 Inner cable diameter



Inner

 (mmouter diameter

g/Mweight

Nmax.tension

Nmax. Crush resistance

MMbending radius











short time

long time

short time

long time

static

 Dynamic

2-4

Φ2.0mm

single fiber

2-4

Φ7.0mm

65

500

1200

500

2000

10D

20D

12-24

Φ3.0mm

 Mini multi-core

1

Φ5.0mm

45

350

800

500

2000

10D

20D

12-24

Φ3.0mm

 Mini multi-core

1

Φ10.0mm

100

500

1200

500

2000

10D

20D

24-48

Φ3.0mm

 Mini multi-core

4

Φ10.0mm

110

500

1200

500

2000

10D

20D

48-72

Φ3.0mm

 Mini multi-core

4

Φ14.0mm

200

700

1500

500

2000

10D

20D

72-144

Φ3.0mm

 Mini multi-core

6

Φ14.0mm

220

700

1500

500

2000

10D

20D






Colors of jacket:

yellow

orange

 Aqua

purple

white

black

blue















SM单模

SM

MM千兆多模OM1,0M2

MM万兆多模OM3

MM万兆多模OM4

Customized

定制色

Customized

定制色

Customized

定制色
