Cat6A SF/UTP Copper Cable is with 4Paris twisted copper wire,All pairs are surrounded by an overal Mylar foil and tinned copper wire braided shield,and covered with PVC or LSZH jacket. Cat 6A is a 500MHz cabling system that allows 10Gb/s application speeds up to 100 meter. The cable has improved alien crosstalk characteristics compared to its predecessor Cat 6.
Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, however,Neetuo is not UL listed, we didn’t pay for the certification.
Product Brief Introduction:

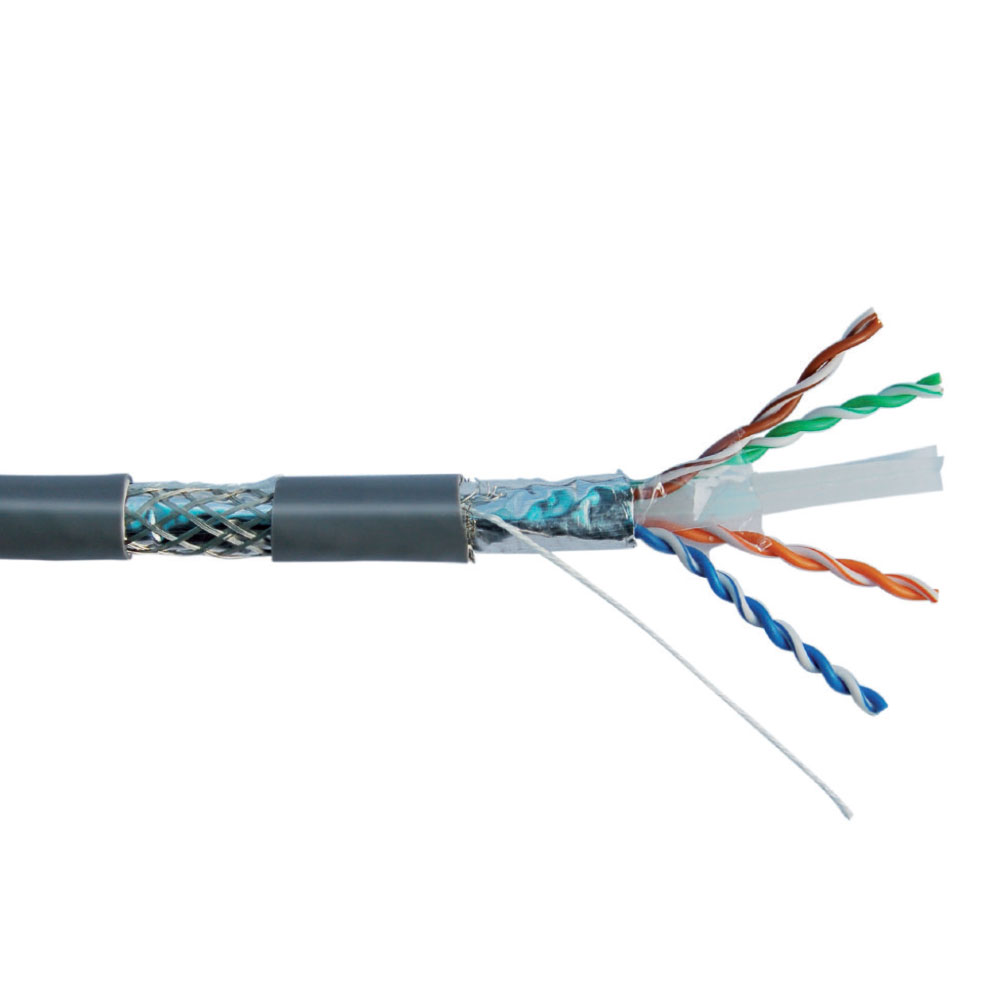

Cat6A SF/UTP Copper Cable is with 4Paris twisted copper wire,All pairs are surrounded by an overal Mylar foil and tinned copper wire braided shield,and covered with PVC or LSZH jacket. Cat 6A is a 500MHz cabling system that allows 10Gb/s application speeds up to 100 meter. The cable has improved alien crosstalk characteristics compared to its predecessor
Cat 6.
The extra performance is ideal for Power over Ethernet (PoE) and Voice Over Internet Protocol (VoIP) applications where data loss is audibly and visually seen and heard. The latest draft declares a new measurement for Power-Sum Alien Crosstalk to ensure neighboring pairs do not cause disturbance to the other cables. The cable center isolator maintains strict pair separation optimizing NEXT performance.
Neetuo Cat6a bulk cable tested for compliance with all ANSI/TIA-568.2-D Category 6a specifications.All materials are RoHS compliant, we can offer the CAT6A cables with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Printing Mark | NEETUO LAN CABLE CAT6A SF/UTP 23AWG COPPER |
Packing | 305m in roll in easy-pull box or in drum |
Standard:
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568

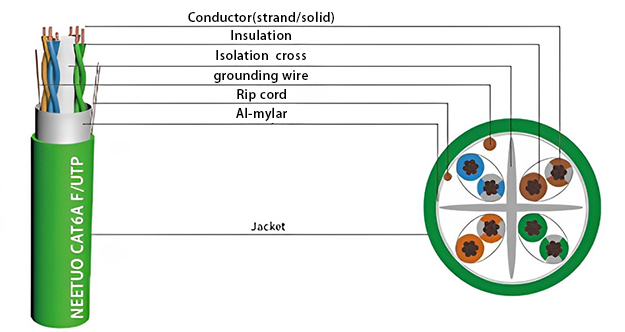

Construction | |
Conductor | |
Conductor material | Oxgen free copper (99.97% purity) |
Conductor structure | Solid 0.575mm±0.02mm |
Insulation | |
Insulation material | HDPE |
Average insulation thickness | 0.22 |
Insulation OD ±0.0mm | 0.98 |
Color | (Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown) |
Grounding Wire | |
Material | Oxgen free copper (99.97% purity) |
Size | 0.45 |
Shielding | |
Pair shielding | / |
Overall Foil | Al-mylar |
Braiding | Tinned Copper Wire or Al-mg alloy wire ,above 85% coverage |
Rip Cord | |
Material | Polymeter |
Size | 500D |
Sheath | |
Sheath material | PVC |
Average thickness of sheath | 1.0mm |
Overall outer diameter | 7.2mm±0.2mm |
Color | Differrent colores are available |
Electrical Characteristics | |
SingleConductor resistance | ≤9.38Ω/100m |
Min Insulation Resistance | 5000MΩ.KM |
Max DCR Unbulance | 3% |
Max Mutual Capacitance | 5.8PF/M |
Max Capacitance Unbalance | 30 PF/100M |
Characteristic Impedance@1-100MHZ | 100±Ω |
Max Propagation delay skew | 18NS/100M |
Max DC ResistanceUnbalance | 2%(pair intra),4%(pair inter) |
Dielectric Strength | No breakdown with 1kv DC for 1min |
Rated voltage | 30V |
Withstand voltage | 500V |
Temperature | 80℃ |
Mechanical | |
Tensile strength | Jacket≥17MPa,Insulation≥16MPa |
Elongation at Break | Sheath≥150%,Insulation≥300% |
Installation Bending Radius | >8times of OD |
Conductor Elongation at Break | ≥10% |
Transmission | |
Characteristics Impedance | 100±15Ω |
Near End Cross Talk | ≥34.82dB/500 m@500MHZ |
Max Attenuation | ≤42.7dB/500 m@500MHZ |
Return Lose | ≥17.3dB/500 m@500MHZ |
Temperature | |
Operation Temperature | -20℃ to + 60℃ |
Installation Temperature | 0℃ to + 50℃ |
Storage Temperature | -10℃ to + 40℃ |
