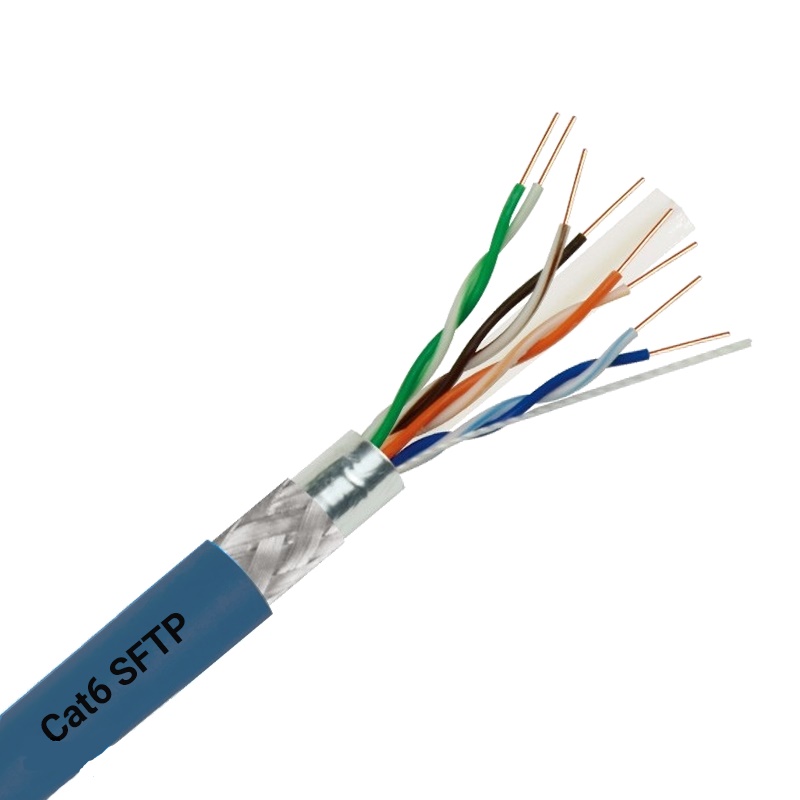

CAT6 SF/UTP 23AWG Pure Copper PVC/LSZH

Part#: NT- LANCAT6SFTP-23CU-PVC Part#: NT- LANCAT6SFTP-23CU-LSZH The Cable SF/UTP Cat6 is a high-quality networking cable designed for use in high-speed Ethernet applications. With a frequency bandwidth of up to 250 MHz, this cable is capable of supporting Gigabit Ethernet networks, making it an excellent choice for those looking to upgrade their network infrastructure.

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568,  however,Neetuo is not UL listed, we didn’t pay for the certification.


Product Brief Introduction:

The Cable SF/UTP Cat6 is a high-quality networking cable designed for use in high-speed Ethernet applications. With a frequency bandwidth of up to 250 MHz, this cable is capable of supporting Gigabit Ethernet networks, making it an excellent choice for those looking to upgrade their network infrastructure.



One of the key features of this cable is its advanced shielding design. The overall shield of the cable is constructed from aluminum foil and tin-plated copper braid, providing excellent shielding against electromagnetic interference (EMI) and radio frequency interference (RFI).



In addition, the cable features a cross-divider design to increase the distance between each pair of wires, reducing crosstalk and other forms of interference between them. This ensures that data is transmitted accurately and reliably, even in environments with high levels of electrical noise.



The cable comes in 305m boxes or 500m drums, making it easy to install and handle, even for large-scale network installations. Additionally, the meter marks are printed on the cable, allowing for precise measurements and easy installation.



Neetuo LAN cable are in accordance with ISO/IEC 11801, ANSI/TIA-568.2-D and UL standards, all materails are RoHS compliant, factory fluke test makes sure the deliveried cables meet relevant  industrial standards. It is easy to install, available in various colors, and environmentally friendly.




Printing Mark

NEETUO LAN CABLE CAT6 SF/UTP 23AWG COPPER

Packing

305m in roll in easy-pull box

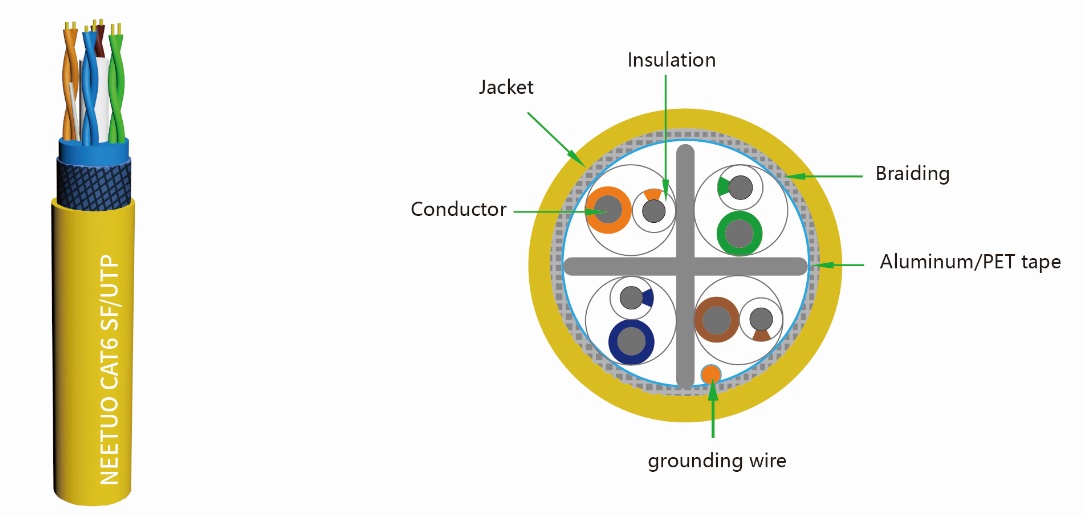

Construction

Conductor

Conductor   material

Oxgen free copper (99.97%   purity)

Conductor   structure

Solid 0.56mm±0.02mm

Insulation

Insulation   material

HDPE

Average   insulation thickness

0.22

Insulation   OD     ±0.0mm

0.98

Color

(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)

Grounding Wire

Material

Oxgen free copper (99.97% purity)

Size

0.45mm

Shielding

Pair   shielding

/

Overall   Foil

Al-foil

Braiding

Al-mg Wire Coverage>80%

Rip Cord

Material

Polymeter

Size

500D

Sheath

Sheath material

PVC

Average   thickness of sheath

0.8mm

Overall outer diameter

6.8mm±0.2mm

Color

Differrent colores are available

Electrical Characteristics

SingleConductor resistance

9.5Ω/100m

Min Insulation Resistance

5000MΩ.KM

Max DC ResistanceUnbalance

2%(pair intra),4%(pair inter)

Dielectric Strength

No breakdown with 1kv DC for 1min

Rated voltage

30V

Withstand voltage

500V

Temperature

80

Mechanical

Tensile strength

Jacket17MPaInsulation16MPa

Elongation at Break

Sheath150%,Insulation300%

Installation Bending Radius

>8times of OD

Conductor Elongation at   Break

10%

Transmission

Characteristics Impedance

100±15Ω

Near End Cross Talk

≥29.33dB/250 m@250MHZ

Attenuation

≤32.84dB/250 m@250MHZ

Return Lose

≥17.32dB/250 m@250MHZ

Temperature

Operation Temperature

-20 to + 60

Installation Temperature

0 to + 50

Storage Temperature

-20 to + 40
