NEETUO premium CAT6a SFTP Patch Cable is made of 28AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Overview
NEETUO premium CAT6a SFTP Patch Cable is made of 28AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
Features:
●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards
●Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
●Performance Tested with Fluke and Wired T568B
●SFTP Cable Minimizes EMI and RFI Interference
●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
●Provide superior electromagnetic interference protection and Maintain signal integrity over long distances
●Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center
Specification:
印字Printing Mark | NEETUO LAN CABLE CAT6a S/FTP 26AWG Stranded COPPER TIA/EIA568.B xx/xx/xxxx xxxxm | ||
规格Category | CAT6a | 屏蔽类型Shielding | 双屏蔽SFTP |
导体Conductor | 26AWG多股 纯铜 26AWG Stranded Pure Copper | 绝缘Insulation | HDPE |
地线Grouding Wire | 纯铜/铝镁合金丝 Copper/Al-Mg Alloy Wire | 撕裂线Rip Cord | Polymeter |
护套Jacket | PVC CM(圆形Round) | 外径OD | 5.2mm±0.2 |
接头Connector | RJ45水晶头注塑RJ45 Crystal Molded Boot 50μ'' | 线序Wire Scheme | T568B,Straight |
Operation Temperature | -20 to +75°C | Installation Temperature | -10 to +50°C |
Standards:
ANSI/TIA-568-D.2
ISO/IEC 11801
ANSI/TIA-1096-A (FCC Part 68)
EN50173-1:2011
UL1863
EU Directive 2011/65/EU (RoHS-2)
Compliant Network Standards:
10BASE-T 100BASE-TX 100BASE-T4
1000BASE-T 5GBASE-T 10GBASE-T
ATM-25 ATM-51 ATM-155
100VG-AnyLan TR-4 TR-16 Active
TR-16 Passive
Pass Fluke Test:
Packing demo:

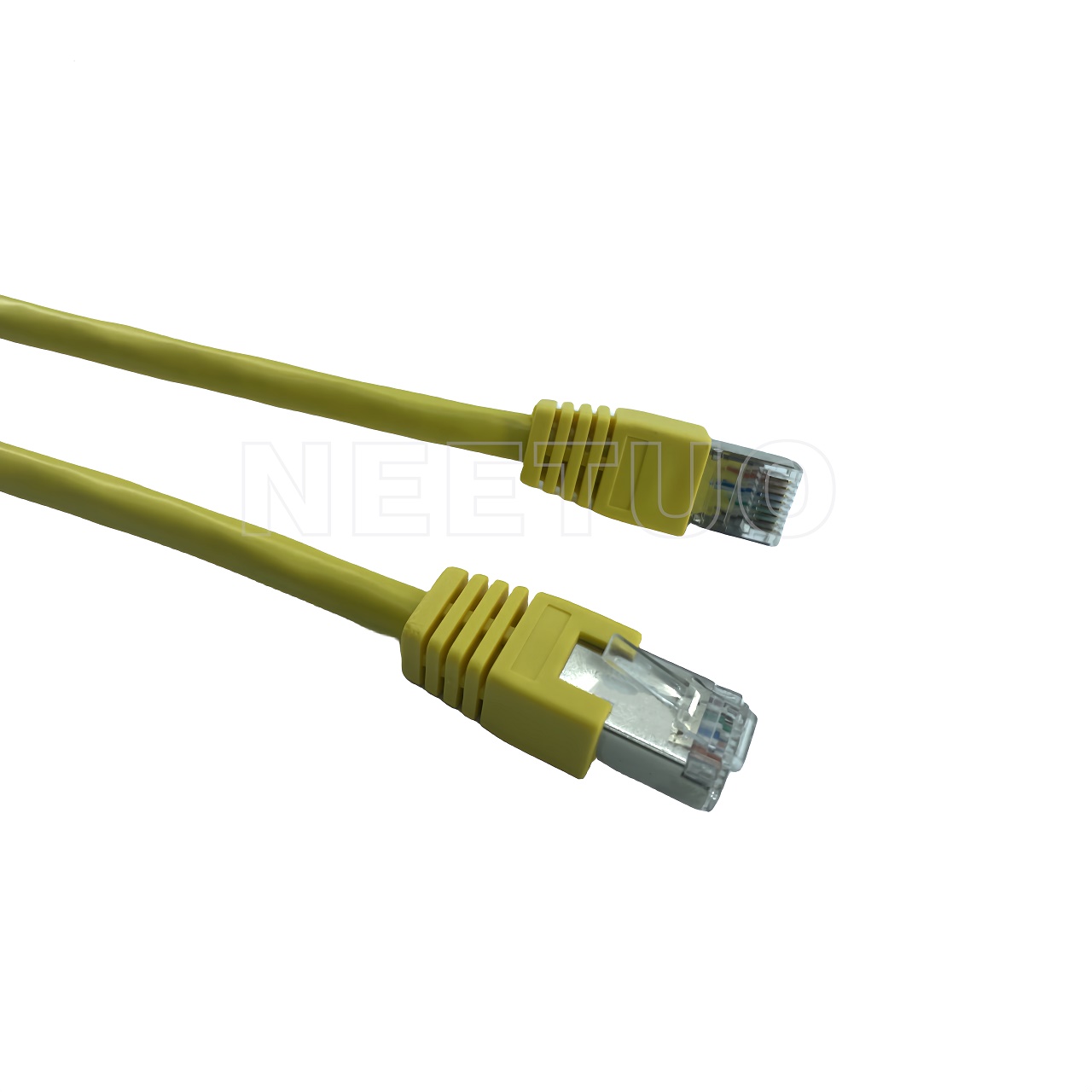

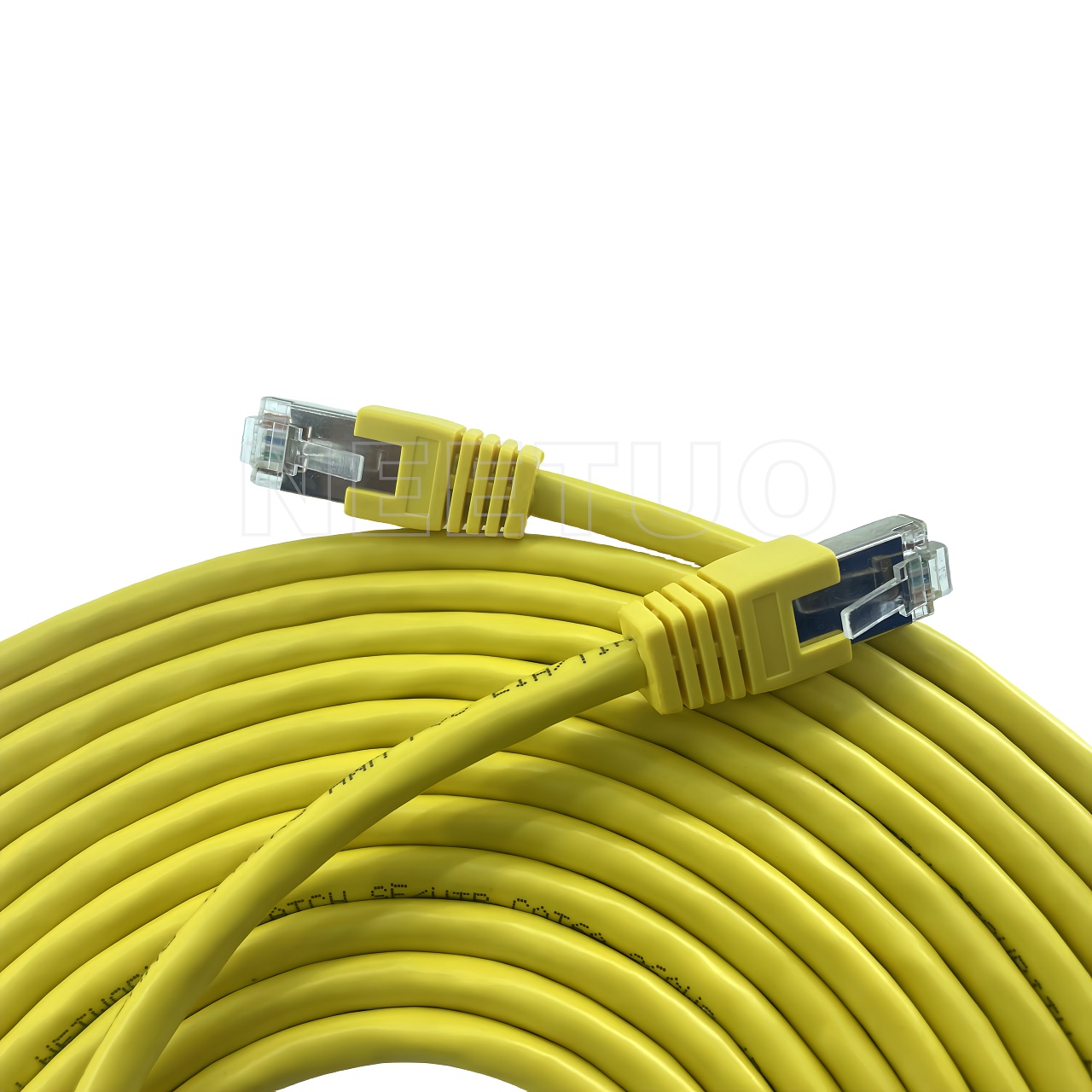

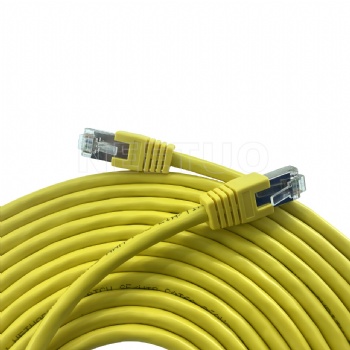

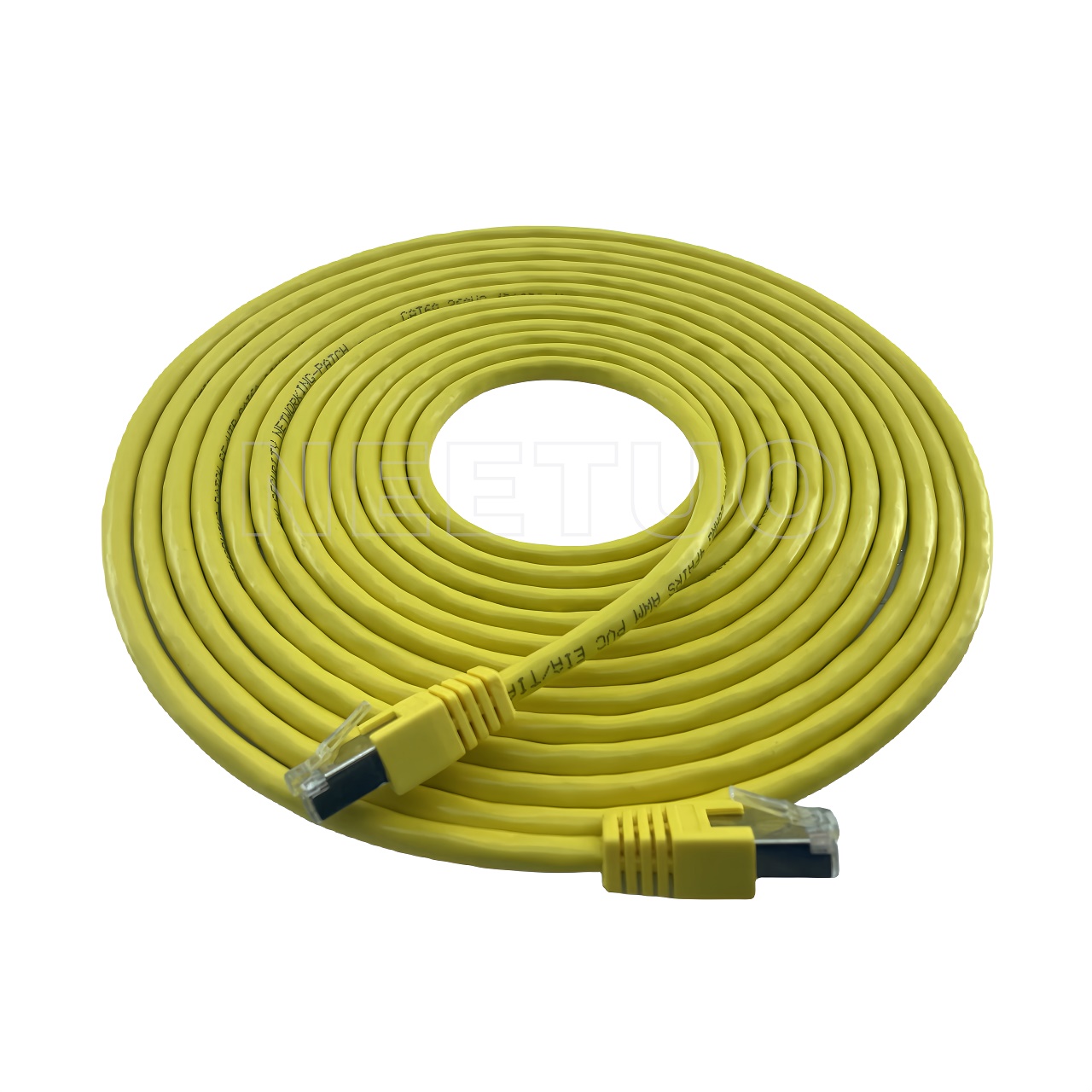

Network Patch Cord samples photos:
