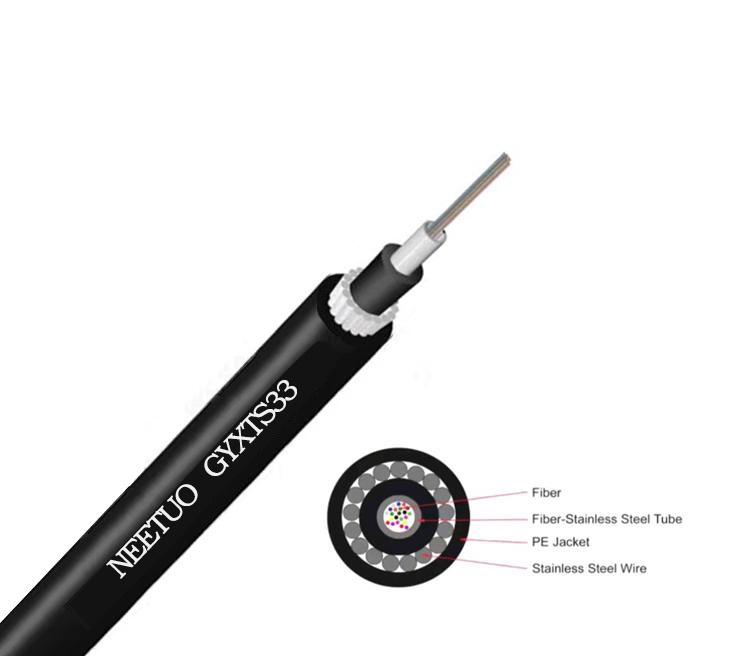

Structure&ParaFmeter

Fiber

No.

24

Cable O.D

mm

14.3

Weight in air

Kg/km

385

Weight in seawater

KgK/M

220

Nominal Specification

Minimum Breaking Load,(UTS)

kN

40

Nominal Transient Tensile   Load(NTTS)

kN

28

Nominal Operating Tensile Load,(NOTS)

kN

14

Nominal Permanent Tensile   Load(NPTS)

kN

9

Minimum Bending Radius.＜NPTS

m

0.5

Minimum Bending Radius.＞NPTS

m

1.0

Operating Temperature Range

℃

-10 to +40

Handling Temperature Range

℃

-10 to +45

Storage Temperature Range

℃

-30 to +60

Cladding Diameter

μm

125

1

Cladding-Core Concentricity Error

μm

≤0.6

-

Cladding Non-circularity

%

≤

-

Coating Diameter(uncolored)

μm

245

10

Coating-Cladding Concentricity   Error

μm

≤12

-

Mode Field Diameter.MFD @1310

μm

9.2

0.4

^{Mode Field Diameter，MFD   @1550nm}

^μm

^10.4

^0.5

Attenuation @ 1310nm

Db/km

≤0.36

-

Attenuation @ 1550nm

dB/km

≤0.22

-

Zero Dispersion Wavelength

nm

1300-1324

-

Zero Dispersion Slope

Ps/nm²-km

≤0.092

-

Chromatic Dispersion @ 1310nm

Ps/nm²-km

≤3.5

-

Chromatic Dispersion @ 1550nm

Ps/nm²-km

≤18

-

Cable Cut-off wavelength

nm

≤1260

Proof Test Level

kpsi

100

ISO 9001

Quality management systems-requirements

ISO 14001

Enviromental management systems

ITU-T G652D

Characteristics of a single-mode   optical fiber and cable

IEC 60793-1

Optical fiber part 1 : Generic   specifications

IEC 60793-02

Optical Fiber part 2: Product specificaitons

IEC 60794-1-2

Generic specification-Basic   optical cable test procedures

ITU-T G.976

Test methods applicable to   optical fiber submarine cable systems

EIA/TIA 598

Optical Fiber Cable Color Coding

ASTM E29-13

Standard practice for using   significant digits in test data to determine

conformance with specifications
