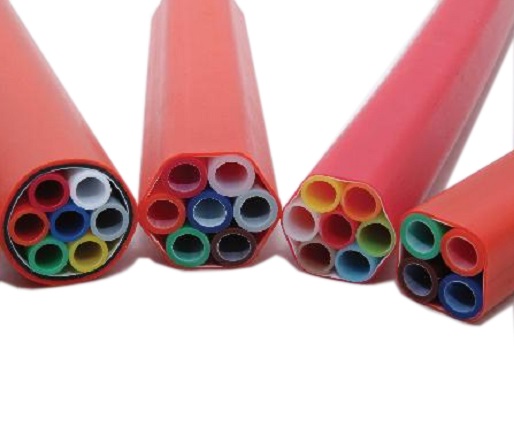

HDPE Tube Bundle ,with flexible combination of micro tube holes,conventional and different shapes,can meet the needs of trunk and FTTX nextwork layout.

Features:

1,Suitable for direct-burried and direct-installation applications;

2,Standard specification of 2,4,7,12,19 and 24 ways bundles,which can be customized according to customer’s design;

LSZH bundles can meet the flame retardant requirements of buildings,metro and other enviroments;

Can be laid by excavation,directional drill,overhead and trench;

Suitable for long-distance trunk lines, WAN,LAN,etc,with flexible scalable upgrade potential.

Direct Burried(DB) Tube Bundle

The bundle with two layers of outer sheath layers has strong compressive resistance and can be directly buried underground without additional pipeline protection, Can be directly buried,directional drilling and other ways of laying.

Direct Installation (DI) tube bundle

With a single layer outer sheath,the tubes are suitable for laying into existing pipeline or optical cable grooves.
