Product Description:

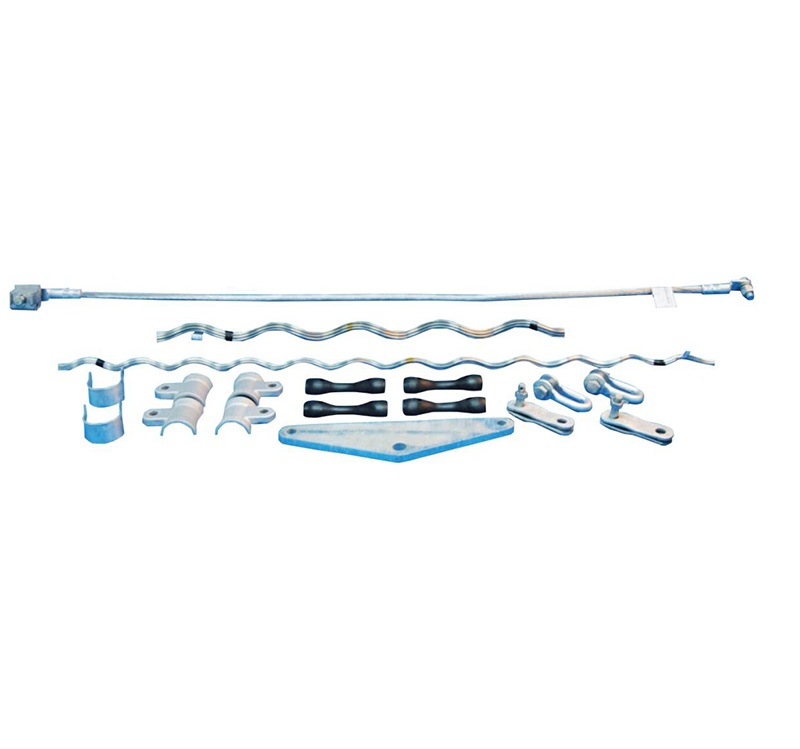

OPGW Double Suspension Set is adopted design proposal of dual suspension housings,the whole set is composed of Armor Rods,Outer rods,two sets of suspension housing ,Grounding wire Clamps and mated link fittings.it is mainly used for OPGW installation and supporting on straight pole and tower with high falling head,large span length,and line angle is larger than 30°.

Product Specification:

Type	Available Dia. of Cable(mm)		Length of Structural Reinforcing Rods(mm)	Length of Outer Rods(mm)
Type	Min.(mm)	Max.(mm)	Length of Structural Reinforcing Rods(mm)	Length of Outer Rods(mm)
OXS-0800	7.4	8	2100	1600
OXS-0870	8.1	8.7	2100	1600
OXS-0940	8.8	9.4	2200	1600
OXS-1010	9.5	10.1	2200	1600
OXS-1080	10.2	10.8	2200	1600
OXS-1150	10.9	11.5	2200	1600
OXS-1220	11.6	12.2	2300	1700
OXS-1290	12.3	12.9	2300	1700
OXS-1360	13	13.6	2300	1700
OXS-1430	13.7	14.3	2400	1800
OXS-1500	14.4	15	2400	1800
OXS-1570	15.1	15.7	2600	2000
OXS-1640	15.8	16.4	2600	2000
OXS-1710	16.5	17.1	2600	2000
OXS-1780	17.2	17.8	2800	2200
OXS-1850	17.9	18.5	2800	2200
OXS-1920	18.6	19.2	3000	2400
OXS-1990	19.3	19.9	3000	2400
