Spiral Vibration Damper

 It is made of engineering plastic which is high strength,aging resistance and high elastic;it will not cause any mechanical damage to the optical fiber caber.

 Product Description:

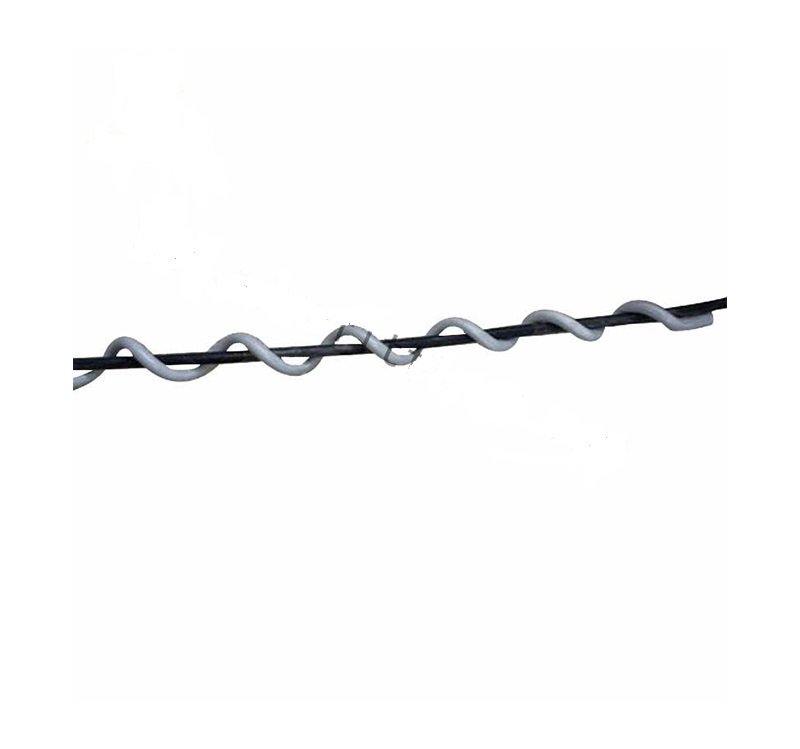

It is made of engineering plastic which is high strength,aging resistance and high elastic;it will not cause any mechanical damage to the optical fiber caber. It is widely used in ADSS cable installation.Each Spiral Vibration Damper is composed of a short part of grip section and a long vibration attenuation section.the grip section can affective close upon the cable to make sure the spiral vibration damper is firmly fixed on the cable; the vibration attenuation section create damping effect through mutual crash with the cable,to consume the cable vibration energy,so that the Aeolian vibration on the cable can be weaken.





Product Specification:

     Model

           Dia Range(mm)

          Length

              Note

            FTL 1170 130

8.30-11.7

1300

0.28

         FTL 1430 135

11.71-14.30

1350

0.3

        FTL 1930 160

14.31-19.30

1670

0.66



Note:Recommand Allocation number of spiral vibration damper

                 Span(mm)

                  Recommend Qty/Span

<100

0

100-250

2

250-400

4

400-800

6

800-1000

8
