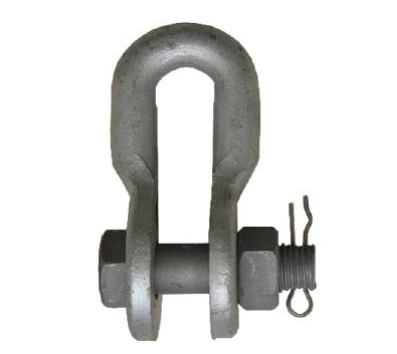

U-Anchor Shackle

Modle:U-6,U-7,U-10,U-12,U-16,UL-7
Failing Load(KN):60,70,100,120,160,70,100
Weight(kg):0.4,0.5,0.6,1,1.5,0.7,0.9

Description
Inquiry

Product Feature:

The shackle of our The U-Anchor Shackle can be used to connect the anchor and the anchor chain. It is characterized in that the horizontal pins and bolts do not protrude beyond the ring body and can pass various anchor equipment smoothly. There are various kinds of model options, thus to provide more choices to meet need.

Product Description:

The U-Anchor Shackle adopts advanced process, which has longer service life for use and there is no special need of maintaining. In addition, it can be an ideal material widely used for connection tool. Due to the high performance, it can also be used to connect a variety of cables, chains, connect anchors and anchor chains, fixed to the ropes, chains and other devices on the deck eye ring. As a new type of marine rigging, our U-Anchor Shackle is specifically designed to connect the anchor chain and the sinker. Due to the proper size and compact design, it is really easy for installation.

Production Specification:

Model	Dimension(mm)					Failing Load(KN)	Weight(kg)
Model	c	d	D	H	R	60	0.4
U-6	22	14	16	75	12	70	0.5
U-7	20	16	16	80	10	100	0.6
U-10	22	18	18	85	11	120	1
U-12	24	22	20	90	12	160	1.5
U-16	26	24	22	95	13	70	0.7
UL-7	20	16	16	120	22	100	0.9
