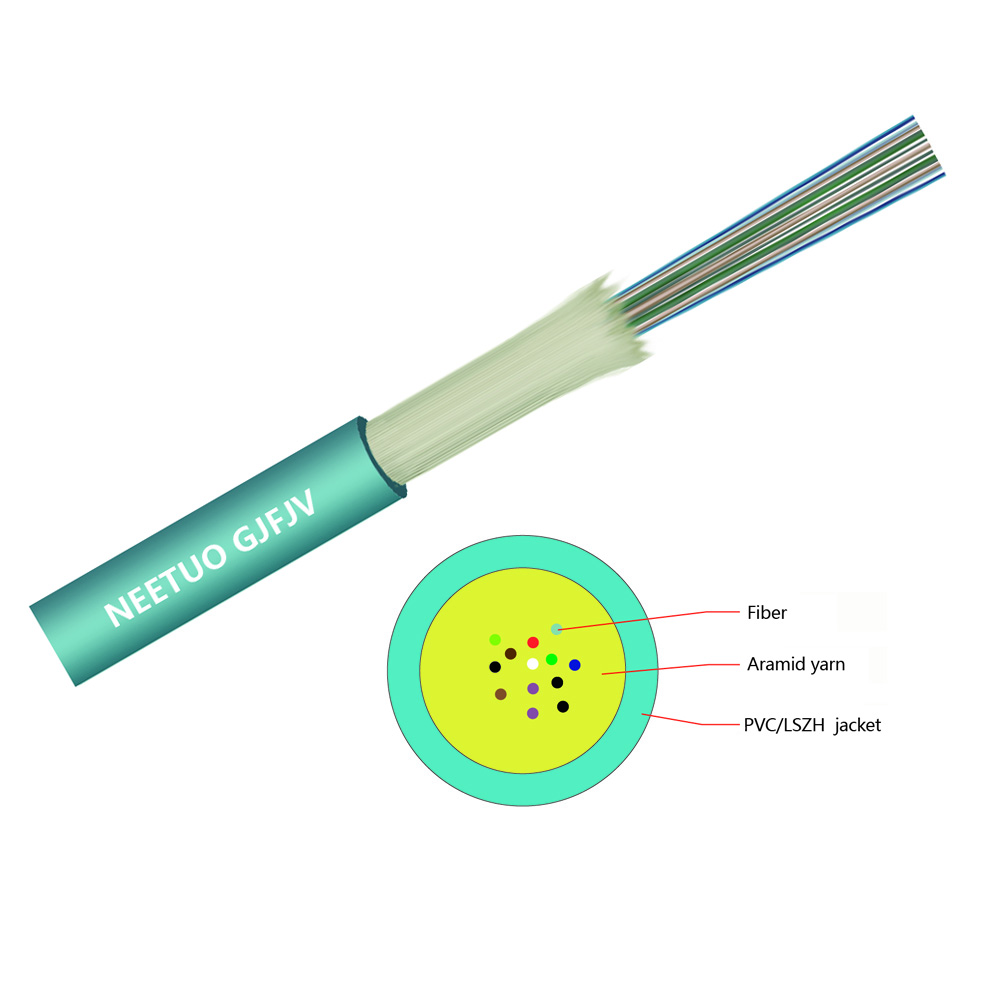

GJFJV Indoor multi-cores Mini round cable
Multi-cores in one tube and are lined with color numbers
Lined fibers with different colors make it easy for installation
High strength aramid yarn offers high tensile strength.
Flame-retardant.
Good stability performance with high and low temperatures
Characteristics:
Multi-cores in one tube and are lined with color numbers
Lined fibers with different colors make it easy for installation
High strength aramid yarn offers high tensile strength.
Flame-retardant.
Good stability performance with high and low temperatures
Applications:
Indoor pipe wiring systems.
MPO/MTP high density wiring system.
Connecting for indoor equipment
Temperatures：
PVC：A:-20℃~ +70 ℃ B:-20℃ ~+90℃
Hytrel: -40℃~+120℃
LSZH：-20℃~+70℃
Nylon：-40℃~+120℃
Specification:
fiber count | （mm）outer diameter | （g/M）weight | （N）tension | （MM）MIn.bending radius | （N/100mm2） crush resistance | ||
long time | short time | static | Dynamic | ||||
4 | 3.5*2.5 | 12.0 | 200 | 80 | 35H | 25H | 500 |
6 | 3.8*2.5 | 13.0 | 200 | 200 | 35H | 25H | 500 |
8 | 4.5*2.5 | 15.0 | 200 | 200 | 35H | 25H | 500 |
12 | 5.0*2.5 | 17.0 | 200 | 200 | 35H | 25H | 500 |
12 colors of bare fibers:
blue | orange | green | brown | gray | white | red | black | yellow | purple | pink | Aqua |
Color of the jacket:
yellow | orange | Aqua | Purple | white | black | blue |
|
|
|
|
|
|
|
SM单模 SM | MM 千兆多模 OM1,OM2 MM（OM1/OM2） | MM万兆多模OM3 OM3 | MM万兆多模OM4 OM4 | 订制色 customized | 订制色 customized | 订制色 customized |
