CAT6 FTP 23AWG Pure Copper PVC/LSZH

Description
Inquiry

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, however,Neetuo is not UL listed, we didn’t pay for the certification.

Product Brief Introduction:

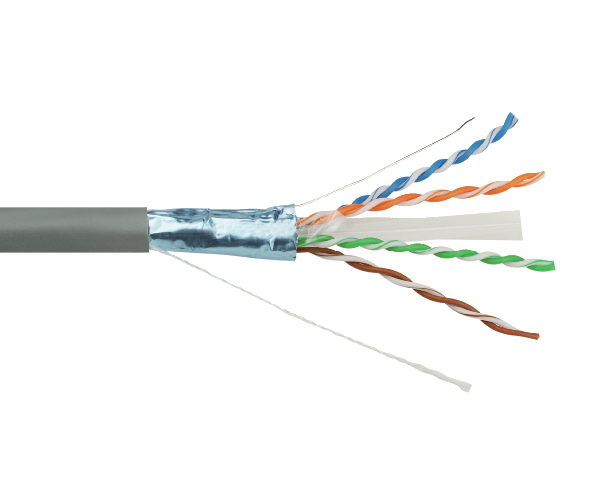

Cat6 FTP Cable features overal al-foil shielding layer, the foil shielding reduces interference and improves signal quality, making it suitable for environments with high levels of electromagnetic interference. The conductors are four twisted pairs of 23 AWG(0.56mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH jacket. This cable provide 250Mhz frequency bandwidth, the transmission speed is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.

Neetuo LAN cable are in accordance with ISO/IEC 11801, ANSI/TIA-568.2-D and UL standards, all materails are RoHS compliant, factory fluke test makes sure the deliveried cables meet relevant industrial standards. It is easy to install, available in various colors, and environmentally friendly.

Printing Mark	NEETUO LAN CABLE CAT6 F/UTP 23AWG COPPER
Packing	305m in roll in easy-pull box

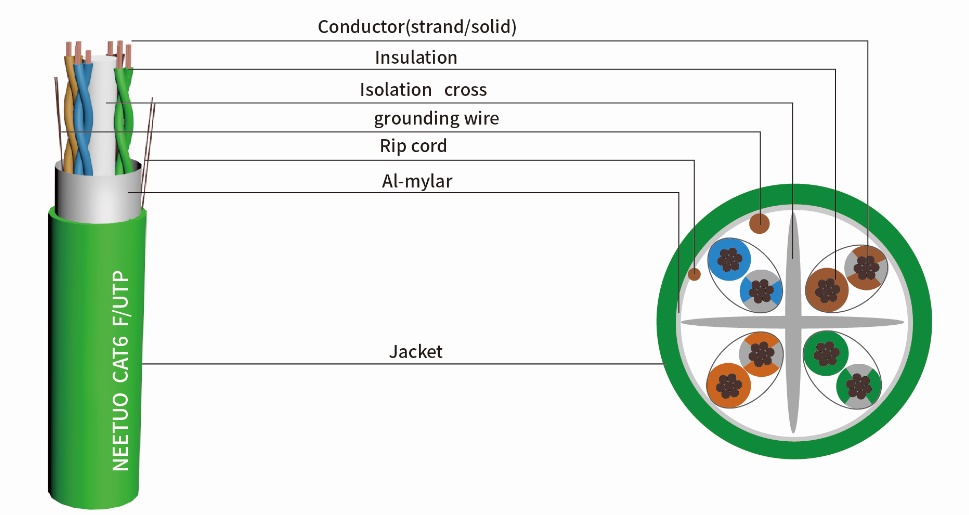

Construction
Conductor
Conductor material	Oxgen free copper (99.97% purity)
Conductor structure	Solid 0.56mm±0.02mm
Insulation
Insulation material	HDPE
Average insulation thickness	0.22
Insulation OD ±0.0mm	0.98
Color	(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)
Grounding Wire
Material	Oxgen free copper (99.97% purity)
Size	0.45mm
Shielding
Pair shielding	/
Overall Foil	Al-foil
Braiding	/
Rip Cord
Material	Polymeter
Size	500D
Sheath
Sheath material	PVC
Average thickness of sheath	0.55mm
Overall outer diameter	6.2mm±0.2mm
Color	Differrent colores are available
Electrical Characteristics
SingleConductor resistance	≤9.5Ω/100m
Min Insulation Resistance	5000MΩ.KM
Max DC ResistanceUnbalance	2%(pair intra),4%(pair inter)
Dielectric Strength	No breakdown with 1kv DC for 1min
Rated voltage	30V
Withstand voltage	500V
Temperature	80℃
Mechanical
Tensile strength	Jacket≥17MPa，Insulation≥16MPa
Elongation at Break	Sheath≥150%,Insulation≥300%
Installation Bending Radius	>8times of OD
Conductor Elongation at Break	≥10%
Transmission
Characteristics Impedance	100±15Ω
Near End Cross Talk	≥29.33dB/250 m@250MHZ
Attenuation	≤32.84dB/250 m@250MHZ
Return Lose	≥17.32dB/250 m@250MHZ
Temperature
Operation Temperature	-20℃ to + 60℃
Installation Temperature	0℃ to + 50℃
Storage Temperature	-10℃ to + 40℃
