CAT6 UTP 23AWG Pure Copper Bulk Cable

Part#: NT- LANCAT6-23CU-PVC Cat6 UTP Cable is an ideal option for high-speed data transmission in both residential and commercial Ethernet networking applications.

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568,  however,Neetuo is not UL listed, we didn’t pay for the certification.


Product Brief Introduction:

Cat6 UTP Cable is an ideal option for high-speed data transmission in both residential and commercial Ethernet networking applications. The conductors are four twisted pairs of 23AWG(0.55mm) copper wires, which are insulated with HDPE material and protected by a durable PVC/LSZH  jacket. Neetuo cables are all RoHS compliant, The transmission speed of this cable is up to 1 Gigabit per second. It is easy to install, available in various colors, and environmentally friendly.




Printing Mark

NEETUO LAN CABLE CAT6 U/UTP 23AWG COPPER

Packing

305m in roll in easy-pull box

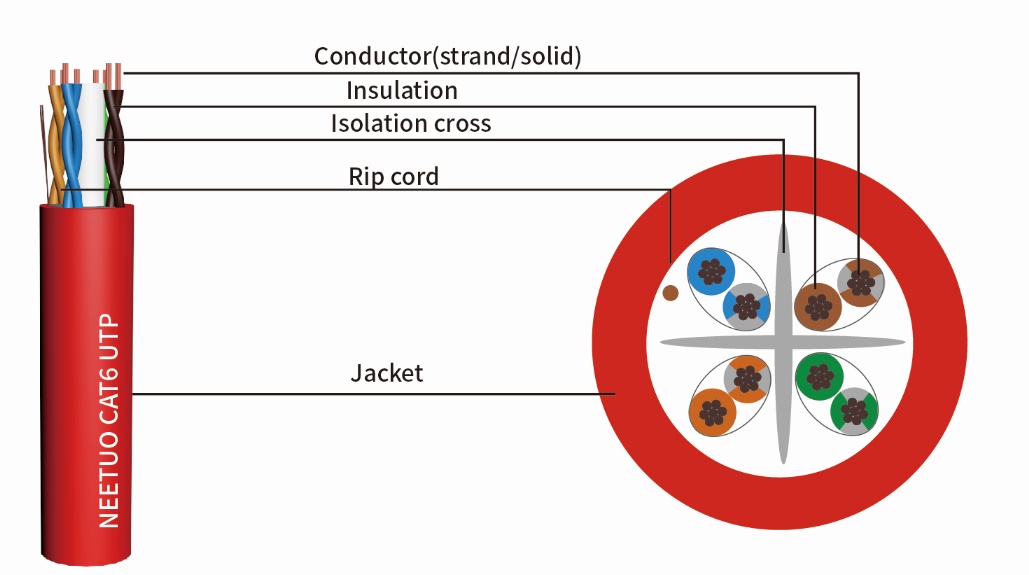

Construction

Conductor

Conductor   material

Oxgen free copper (99.97%   purity)

Conductor   structure

Solid 0.575mm±0.02mm

Insulation

Insulation   material

HDPE

Average   insulation thickness

0.22

Insulation   OD     ±0.0mm

0.98

Color

(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)

Grounding Wire

Material

/

Size

/

Shielding

Pair   shielding

/

Overall   Foil

/

Braiding

/

Rip Cord

Material

Polymeter

Size

500D

Sheath

Sheath material

PVC

Average   thickness of sheath

0.55mm

Overall outer diameter

6.0mm±0.2mm

Color

Differrent colores are available

Electrical Characteristics

SingleConductor resistance

9.5Ω/100m

Min Insulation Resistance

5000MΩ.KM

Max DC ResistanceUnbalance

2%(pair intra),4%(pair inter)

Dielectric Strength

No breakdown with 1kv DC for 1min

Rated voltage

30V

Withstand voltage

500V

Temperature

80

Mechanical

Tensile strength

Jacket17MPaInsulation16MPa

Elongation at Break

Sheath150%,Insulation300%

Installation Bending Radius

>8times of OD

Conductor Elongation at   Break

10%

Transmission

Characteristics Impedance

100±15Ω

Near End Cross Talk

≥29.33dB/250 m@250MHZ

Attenuation

≤32.84dB/250 m@250MHZ

Return Lose

≥17.32dB/250 m@250MHZ

Temperature

Operation Temperature

-20 to + 60

Installation Temperature

0 to + 50

Storage Temperature

-10 to + 40
