CAT5e UTP Outdoor Dual-Jacket 24AWG Pure Copper

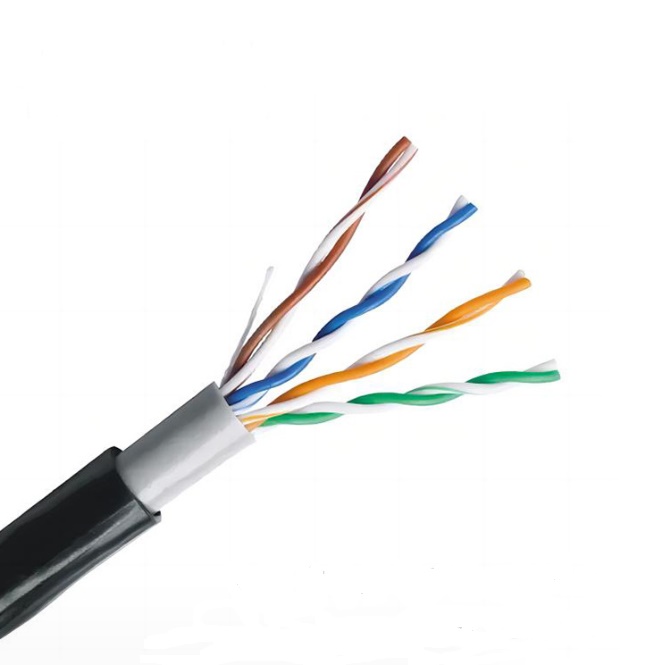

Part#: NT- LANCAT5EUTPO-24CU Cat5e UTP Outdoor waterproof Cable is designed for outdoor cabling with double jacket, it expands networking connection even in the worst environment. The windproof double-layer sheath also allows underground installation while protecting the cable from various external factors. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material, PVC inner jacket and PE outer jacket This cable provide 100Mhz frequency bandwidth, the transmission speed is up to 1 Gigabit per second. It is easy to install, available in various colors.

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568,  however,Neetuo is not UL listed, we didn’t pay for the certification.


Product Brief Introduction:

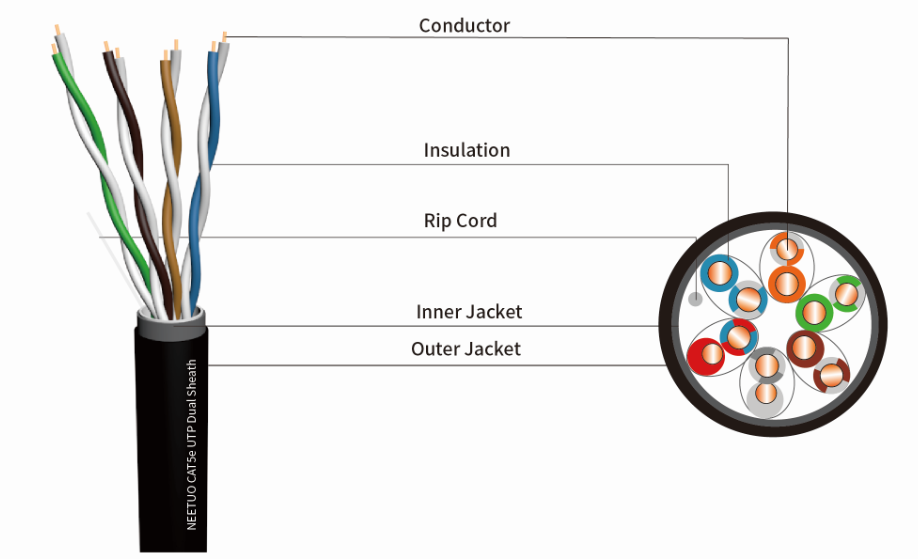

Cat5e UTP Outdoor waterproof Cable is designed for outdoor cabling with double jacket, it expands  networking connection even in the worst environment. The windproof double-layer sheath also allows underground installation while protecting the cable from various external factors. The conductors are four twisted pairs of 24 AWG(0.5mm) copper wires, which are insulated with HDPE material, PVC inner jacket and PE outer jacket This cable provide 100Mhz frequency bandwidth, the transmission speed is up to 1 Gigabit per second. It is easy to install, available in various colors.



Neetuo LAN cable are in accordance with ISO/IEC 11801, ANSI/TIA-568.2-D and UL standards, all materails are RoHS compliant, factory fluke test makes sure the deliveried cables meet relevant  industrial standards. The transmission speed of this cable is up to 1 Gigabit per second. It is easy to install, available in various colors.




Printing Mark

NEETUO LAN CABLE CAT5E UTP Outdoor 24AWG   COPPER

Packing

305m in roll in easy-pull box



Conductor

Material

Oxgen free copper

Size

0.5mm*2*4

Insulation

Material

HDPE

OD

0.9±0.02mm

Color

(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)

Rip   Cord

Polymeter

Grouding   Wire

Material

Copper Wire

Size

0.45mm

Shielding

Type

4P twisted Cores overal

Material

Aluminium Mylar foil

Inner Jacket

PVC

Jacket

Material

PE

Thickness

0.6mm

OD

5.6mm+0.2mm

Performance

Frequency

100Mhz

Speed

10/100/1000Base-T

Remarks:

FTP   outdoor CAT5e is available, please inquiry our sales for details;

Packing   can be customized.
