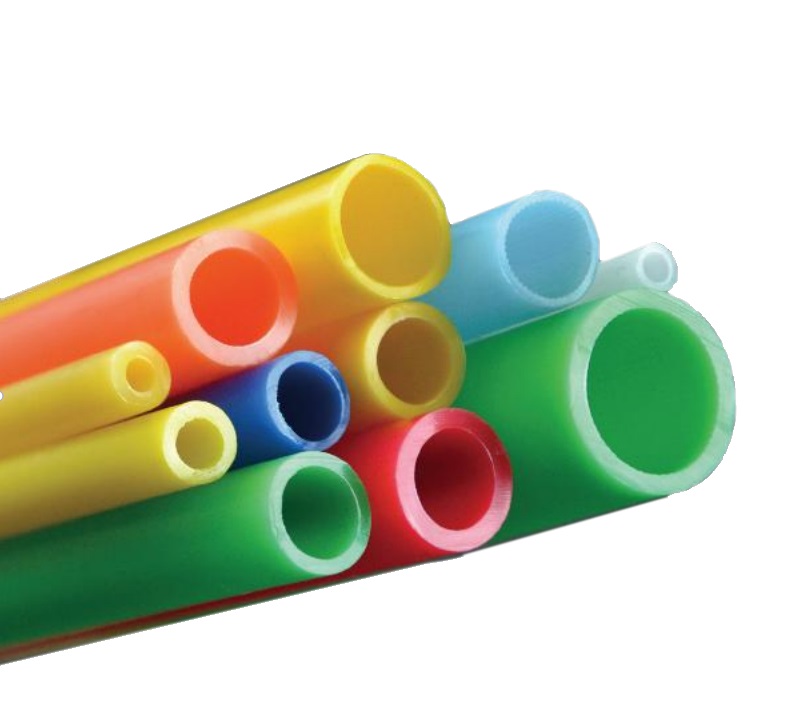

Micro duct fiber cable protection system is the best choice for telecom operators,backbone networks,WAN and enterprise internets.
Advantages:
1. The outer diameter of micro duct is from 5mm to 18mm
2. The inner wall is a smooth structure with silicon layer or a longitudinal ribs structure,which can reduce the inner wall friction coefficient so as to be eneficial to cable blowing.
3. Can be used to enclarge the capacity of existing pipeline and realize the maximization of pipeline capacity.
4. LSZH micro duct can meet the flame retardant requirement of buildings,metro and other enviroments.
Spec | Wall Thickness/mm | SDR | Nom.Mass kg/km | Min Bend Rad. | Max.Pull | Drum Length |
5/3.5mm | 0.75 | 6.7 | 10 | 60 | 185 | 3000 |
7/3.5mm | 1.75 | 4 | 28 | 84 | 520 | 3000 |
8/6mm | 1.0 | 8 | 22 | 95 | 385 | 3000 |
10/8mm | 1.0 | 10 | 28 | 120 | 520 | 3000 |
12/10mm | 1.0 | 12 | 34 | 144 | 620 | 2000 |
14/10mm | 2.0 | 7 | 73 | 168 | 1350 | 2000 |
16/12mm | 2.0 | 8 | 84 | 192 | 1600 | 2000 |
18/14mm | 2.0 | 9 | 98 | 252 | 1800 | 2000 |
