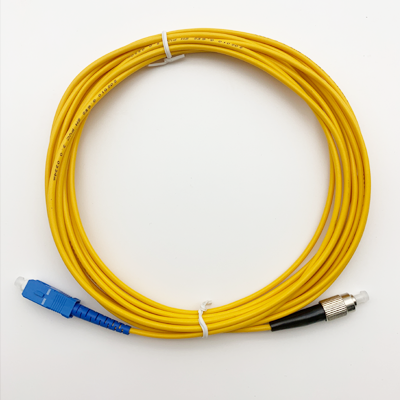

Optical Fiber Patch Cord FC/UPC-SC/UPC SM SIMPLEX

Product name: Optical Fiber Patch Cord FC/UPC-SC/UPC SM SIMPLEX
Part # : NT-OFPC-SM-DX-FCU-SCU-SM-3
Brand: NEETUO
Length：3m

Description
Inquiry

Description:
Mannually assemblied with FC/UPC connector at one end,SC/UPC at the othe end, this patch cord adopts SM G657A1 fiber and LSZH of RoHS compliance, with simplex configuration, utilize ceramic ferrules for precision and durability.

Advantages:

	NeeTuo	Some other factories
Fiber type	G657A	G652D
Sheath	LSZH of RoHS compliance	Recyled PVC material or LSZH
Ferrule	High grade ceramic	Lower grade ferrules
Test	100% test,end,IL,RL, high re-polishing rate	Casual inspection(5% around), ultimately low re-polishing rate

Specification:
Fiber Counts: 1 Fiber
Cable OD: 3.0mm
Sheath: LSZH
Fiber Type: Singlemode 9/125 micrometer
Attenuation: 0.35/0.20 dB/km at 1310/1550 nm
Loading: 50N min
Impact Cycle: 1500
Ferrule: Zirconia
Insertion Loss: 0.2 dB Typical, 0.3 dB max
Return Loss: 55 dB min
UPC Polish
Compliance:
ANSI/TIA-568-C.3
Length XX: 01,02, 05, 07, 10,20,30,50meters
Color: YL-Yellow
