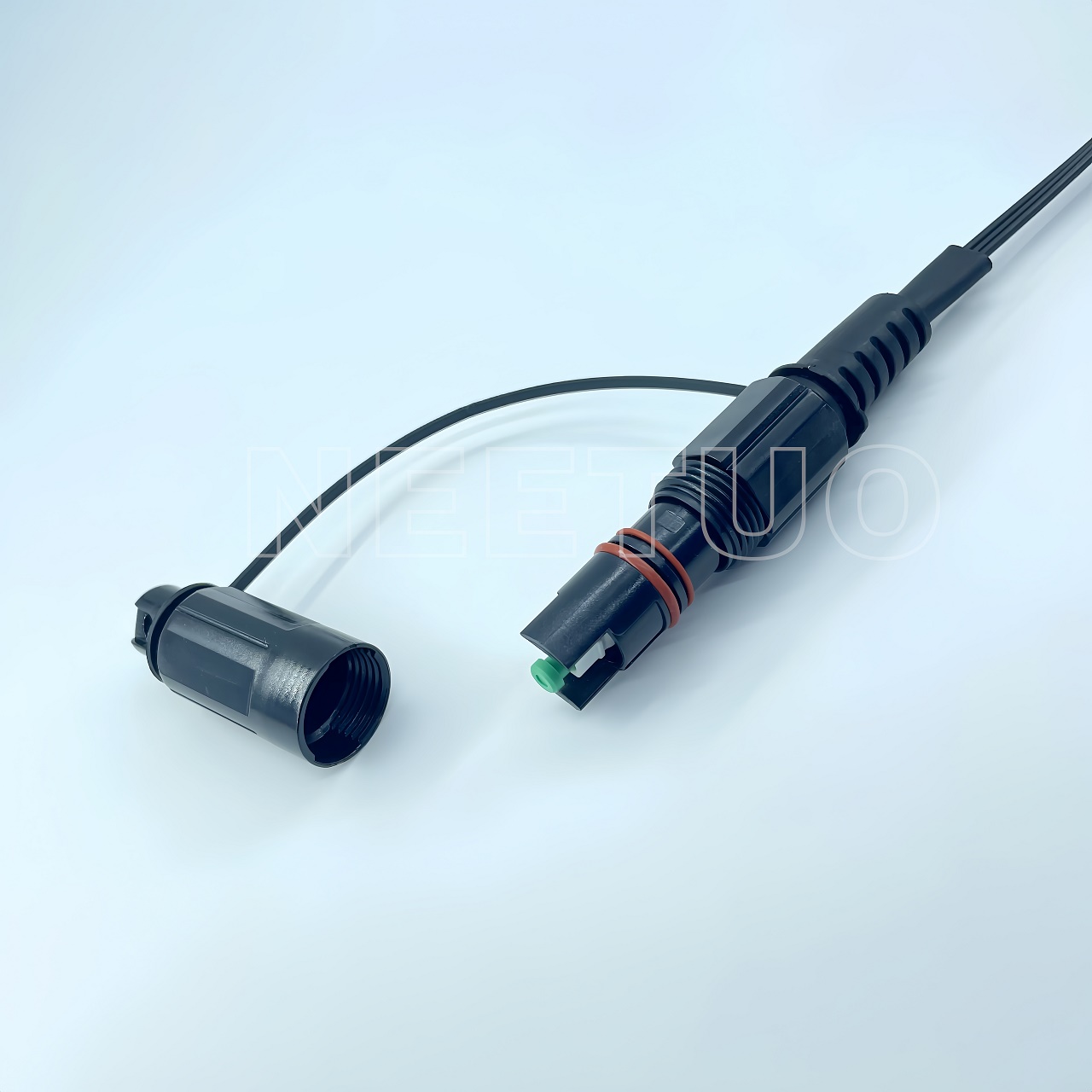

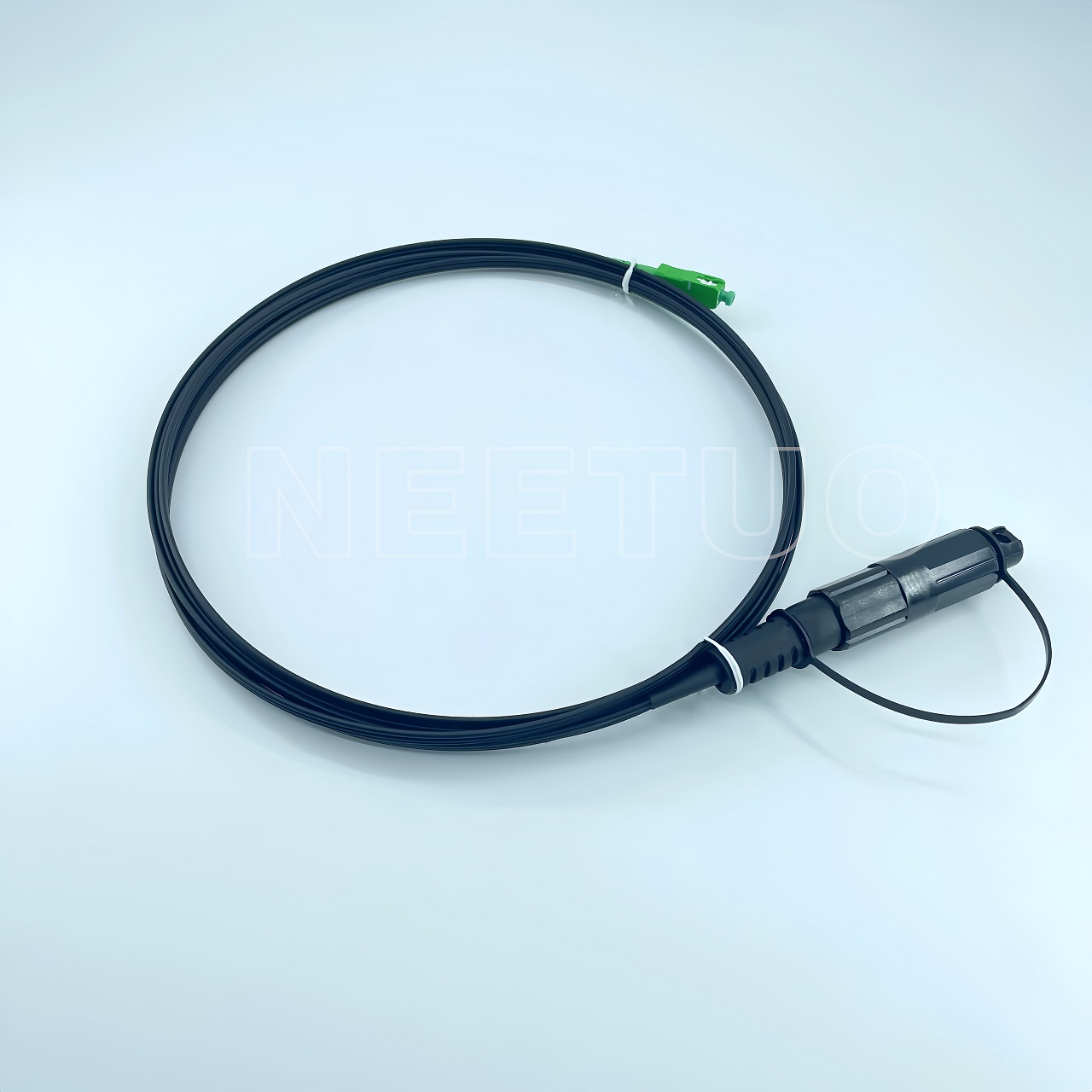

OptiTap Hardened connector SC/APC preconnectorized with 2*5mm Drop Cable

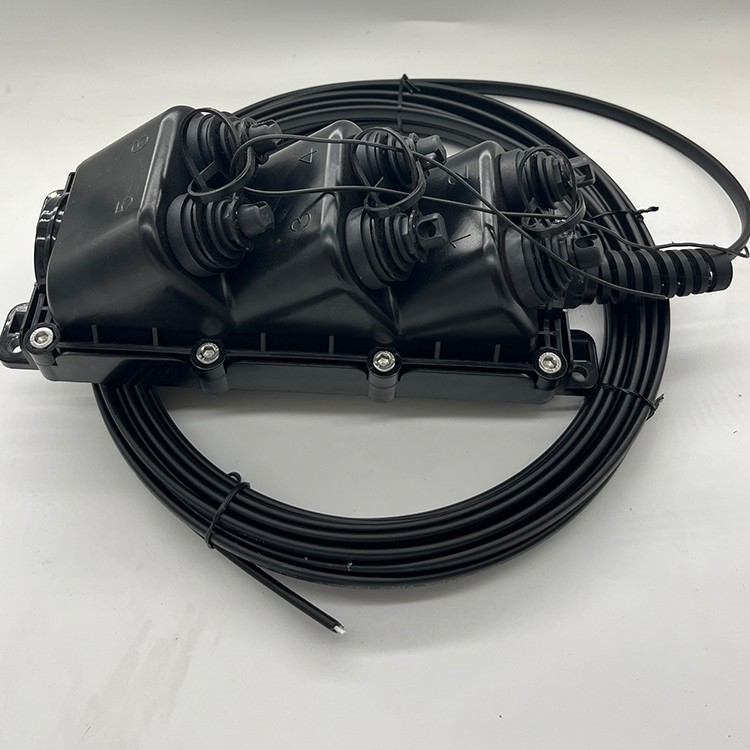

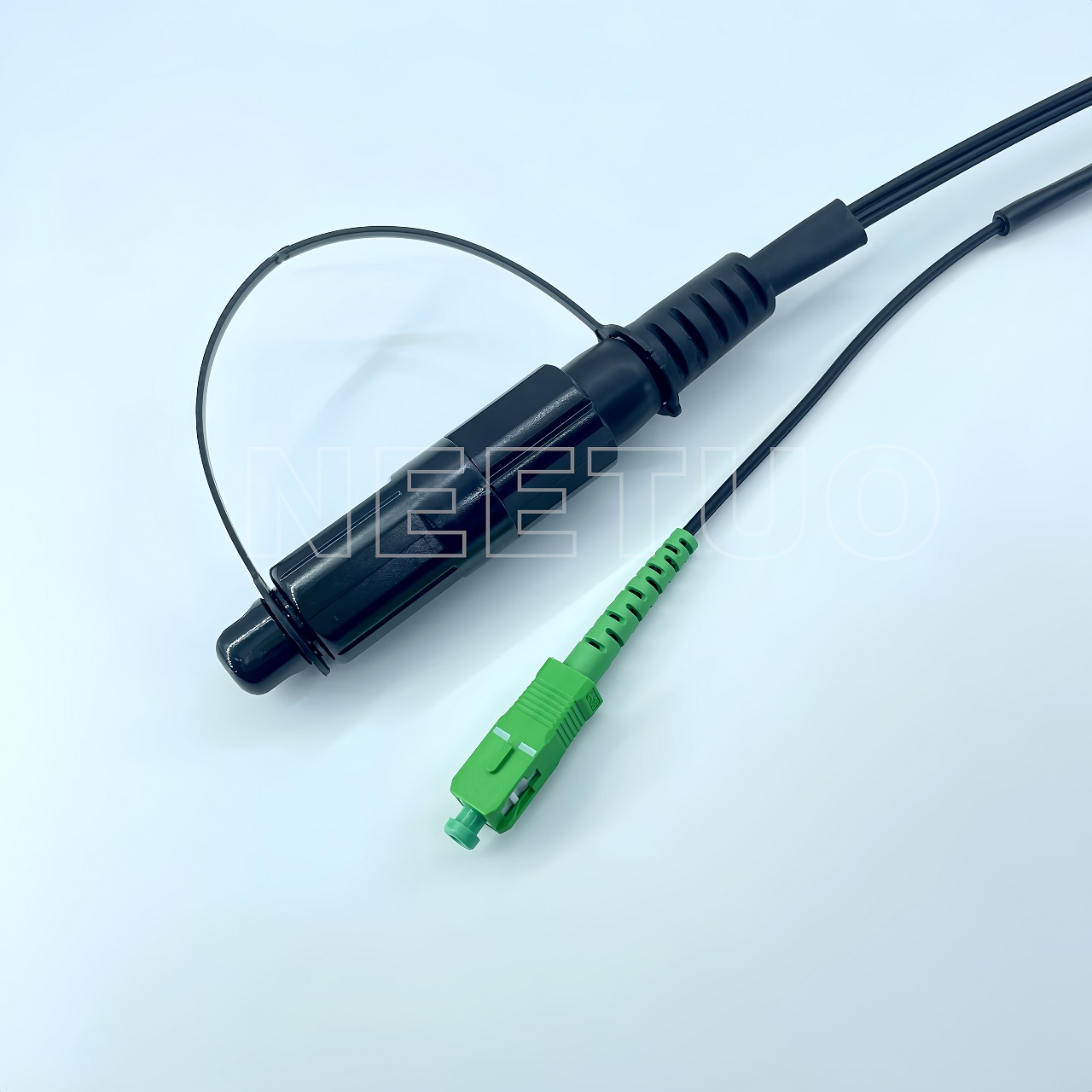

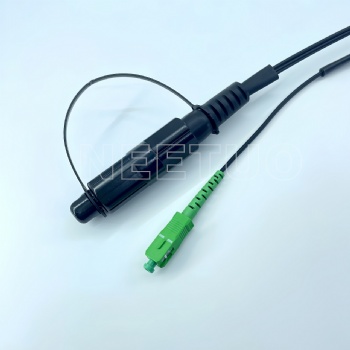

The water-proof assemblies are regular 2*5mm FTTH drop cable preconnectorized with OptiTap hardened connector, it is generally used outside integrally with hardened OptiTap adapters in the MST box or enclosure, it could be OptiTap SC/APC to stub end, or OptiTap SC/APC to regular SC/APC end with armored branch.This drop assemblies have excellent environment adaptability.

Description
Inquiry

Production Brief Introduction:

Connector

	Insertion Lose/dB typical	Reflectance Lose/dB typical
OptiTap End	＜0.25dB	＞60
Regular SC/APC	＜0.25dB	＞60

Specification of Fiber G657A1:

Items	Content	Value
Attenuation Coefficient	@1310nm	≤0.36dB/km
Attenuation Coefficient	@1550nm	≤0.21dB/km
Mode field diameter (MFD)	@1310nm	8.6±0.4μm
Mode field diameter (MFD)	@1550nm	9.6±0.4μm
Cable cutoff wavelength λcc(nm)	≤1260nm
Micro bending lose(1 turn,7.5mm radius)	@1550nm	≤0.5dB
Micro bending lose(1 turn,7.5mm radius)	@1625nm	≤1.0dB
Geometrical characteristics
Cladding diameter	125±0.7μm
Cladding non-circularity	≤1%
Core concentricity error	≤0.5μm
Fiber diameter with coating (uncolored)	245±7μm
Cladding/coating concentricity error	≤12.0μm
Proof stress level	≥100kpsi

*G652D,G657A2 are available upon requirement

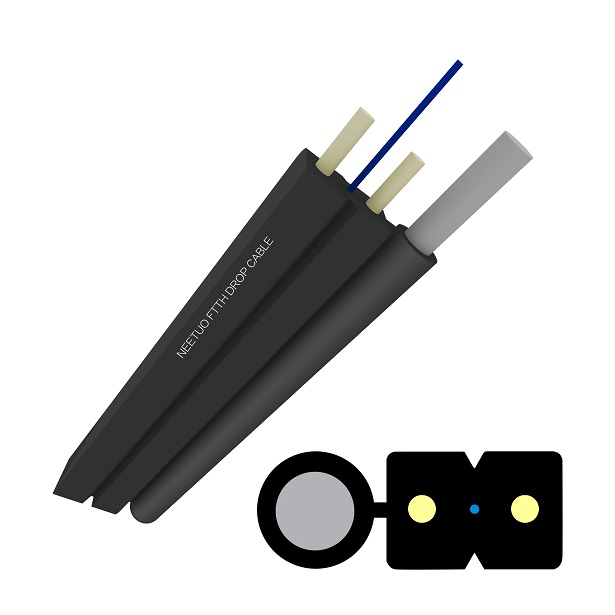

Specification of Cable:

Fiber Count	Copper Wire	NEETUO Part#	Diameter	Cable weight	Tensile Loading /N		Crush Resistance N/100m		Bending Radius
Fiber Count	Copper Wire	NEETUO Part#	mm	Kg/km	Long term	Short term	Long term	Short Term	Bending Radius
1	/	NT-OptiFlat-25-SCAPC-1	2*5.0mm±0.2	20	600	300	2000	2000	20D
2	/	NT-OptiFlat-25-SCAPC-1	2*5.0mm±0.2	20	600	300	1000	2000	20D
