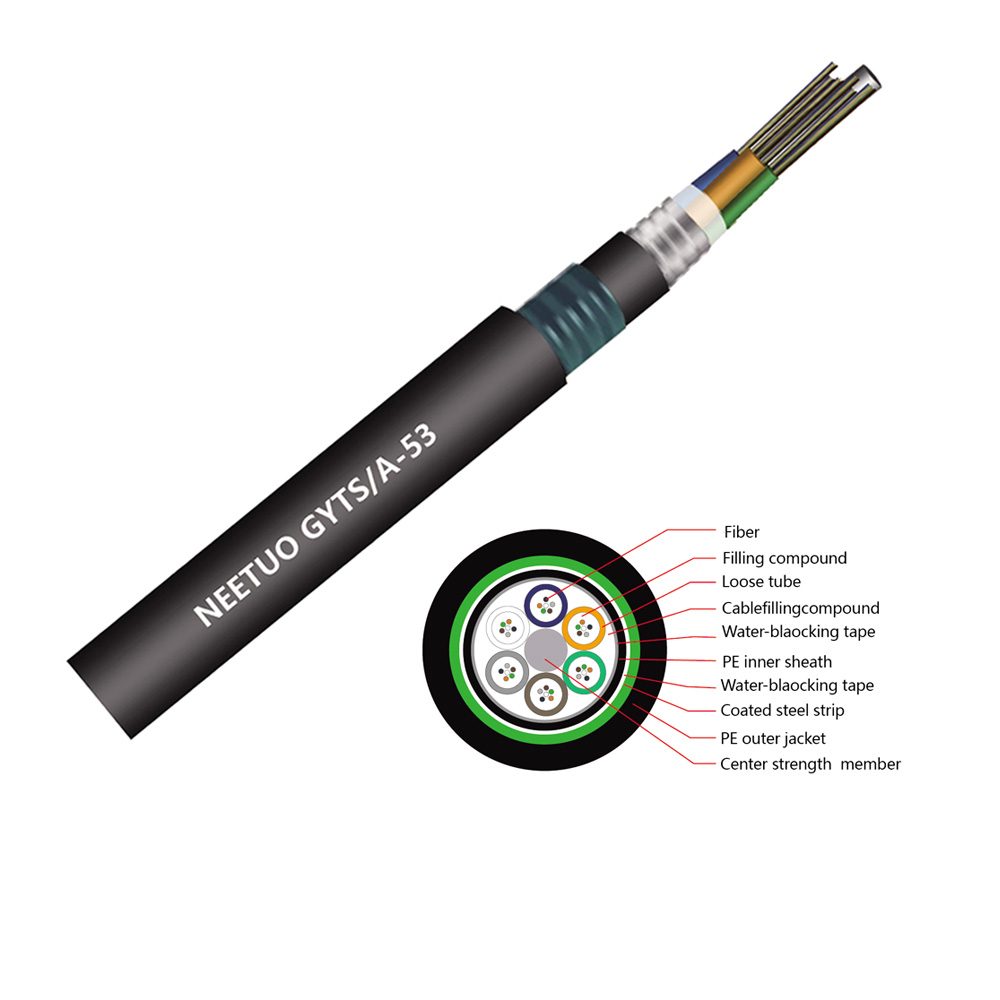

standard double jacket armored cable (GYTS/A-53)

 Double armored jackets of steel + aluminum Aluminum offer high tension and crush resistance.
Special gel in the tube offers critical protection for the fibers.
With steel central strength member
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.

Characteristics:
Double armored jackets of steel + aluminum Aluminum offer high tension and crush resistance.
Special gel in the tube offers critical protection for the fibers.
With steel central strength member
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging



Applications:
Aerial conduit
Connecting communication equipments.
Multi-cores wiring systems in data centers.



STANDARD:
YD/T 901-2009&IEC60794-1



Ordering information:
fiber count:12-144 cores
fire types
For example: GYTS/A 53 144 CORES SM/G652D



Specification:

fiber count

 (mmouter diameter

g/Mweight

(QTY of tube)

maxNtension

Nmax crush resistance

MMbending radius

 short time

 long time

 short time

 long time

 static

 Dynamic

2-60

12.5

160

6

1000

3000

1000

3000

15D

30D

62-72

13.5

200

6

1000

3000

1000

3000

15D

30D

74-96

15.0

240

8

1000

3000

1000

3000

15D

30D

98-120

16.0

280

10

1000

3000

1000

3000

15D

30D

122-144

18.0

300

12

1000

3000

1000

3000

15D

30D



12 colors of bare fibers:

   blue

    orange

    green

   brown

   gray

   white

   red

   black

   yellow

   purple

    pink

    Aqua
