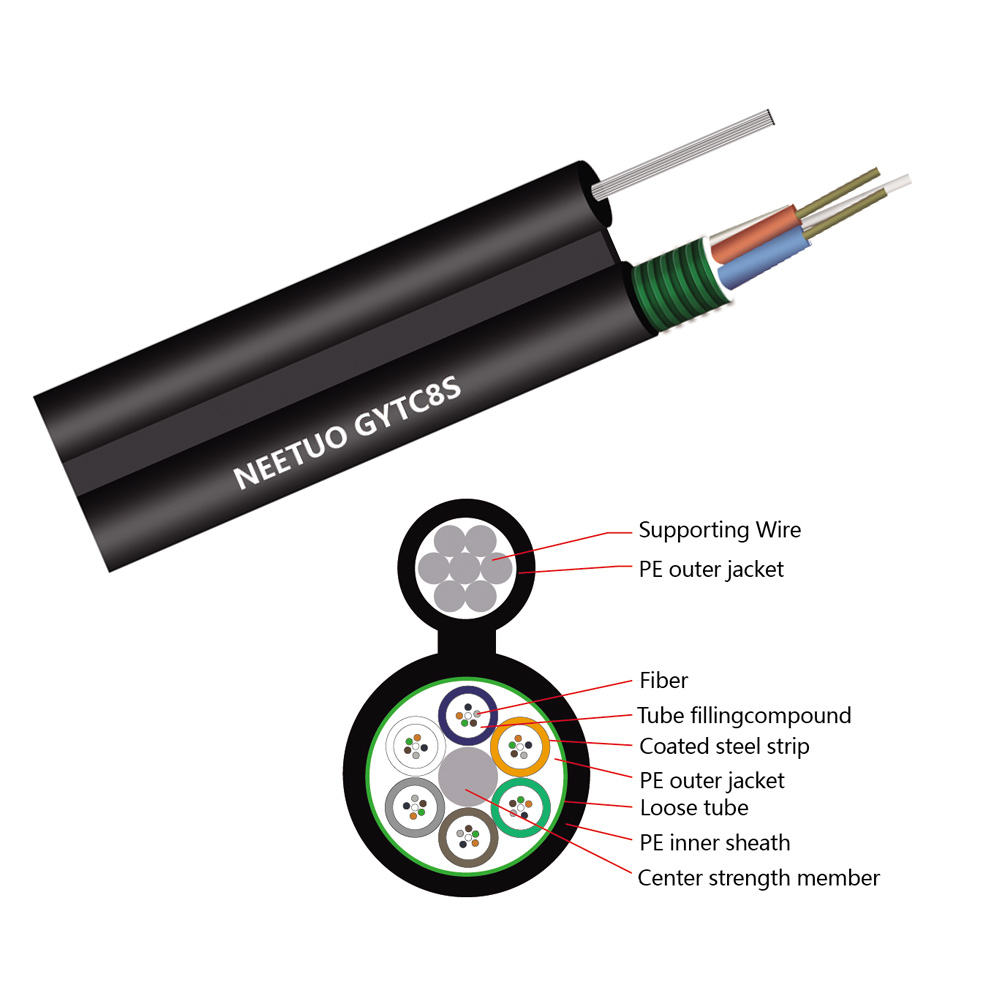

figure 8 self supporting （GYTC8S）

Independent stranded steel sire structure of figure 8 self-supporting provides high tension for the cable.
Special gel in the tube offers critical protection for the fibers.
Small diameter and light weight make it easy to be installed.
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.

Description
Inquiry

Characteristics:
Independent stranded steel sire structure of figure 8 self-supporting provides high tension for the cable.
Special gel in the tube offers critical protection for the fibers.
Small diameter and light weight make it easy to be installed.
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.

Applications:
Aerial
FTTH
wiring systems in shaft and buildings.

STANDARD:
YD/T 1155-2011&IEC60794-1

Ordering information:
fiber count:2-72 cores
fire types
For example: GYTC8S 72 CORES SM/G652D

Specification:

fiber count	（mm） Supension wire diameter	（mm）outer diameter	（g/M）weight	max（N）tension		（N）max crush resistance		（MM）bending radius
fiber count	（mm） Supension wire diameter	（mm）outer diameter	（g/M）weight	short time	long time	short time	long time	static	Dynamic
12-42	∮1.0*7 钢绞线 steel stranded wire	7.014.5 MM DH	180	1000	3000	300	1000	10H	20H
48-72	∮ 1.0*7 钢绞线 steel stranded wire	7.015.5 MM DH	215	1000	3000	300	1000	10H	20H
