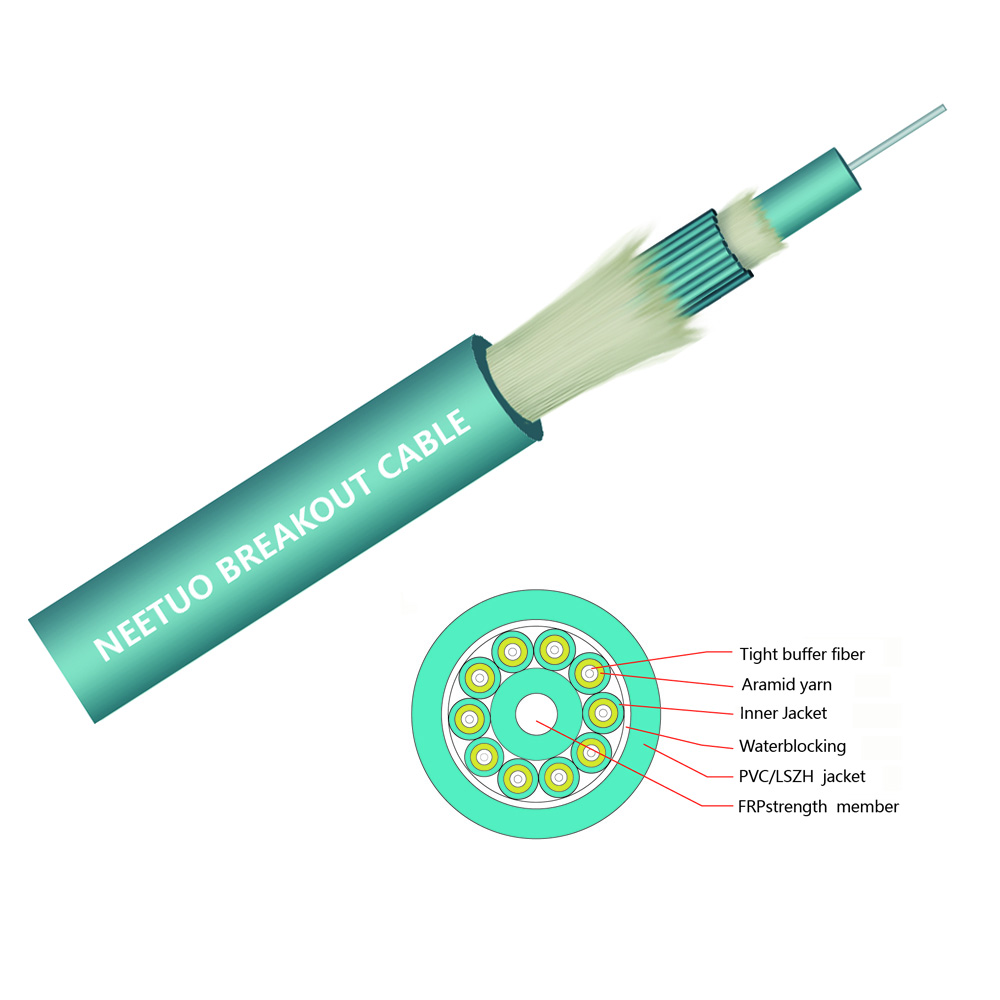

GJFJV Indoor multi-cores Mini round cable I
Aramid yarn in each simplex cable offers high tensile strength
With independent simplex cables.it’s easier to install and maintain.
Flame-retardant.
Good stability performance with high and low temperatures.
Characteristics:
Aramid yarn in each simplex cable offers high tensile strength
With independent simplex cables.it’s easier to install and maintain.
Flame-retardant.
Good stability performance with high and low temperatures.
Applications:
Indoor cablings.
Vertical cabling for building and lan networks.
Wiring systems with long distance indoor.
Temperatures：
PVC：A:-20℃~ +70 ℃ B:-20℃ ~+90℃
Hytrel: -40℃~+120℃
LSZH：-20℃~+70℃
Nylon：-40℃~+120℃
Specification:
fiber count | （mm）outer diameter | （g/M）weight | （N）tension | （MM）MIn.bending radius | （N/100mm2） crush resistance | ||
long time | short time | static | Dynamic | ||||
4 | 7.5±0.5 | 51 | 660 | 200 | 20D | 10D | 1000 |
6 | 9.0±0.5 | 68 | 700 | 200 | 20D | 10D | 1000 |
8 | 10.5±0.5 | 88 | 800 | 250 | 20D | 10D | 1000 |
12 | 12.5±0.5 | 128 | 1200 | 400 | 20D | 10D | 1000 |
16 | 14.0±0.5 | 168 | 1200 | 400 | 20D | 10D | 1000 |
24 | 15.5±0.5 | 198 | 1200 | 400 | 20D | 10D | 1000 |
48 | 20.5±0.5 | 246 | 1800 | 600 | 20D | 10D | 1000 |
12 colors of bare fibers:
blue | orange | green | brown | gray | white | red | black | yellow | purple | pink | Aqua |
Color of the jacket:
yellow | orange | Aqua | Purple | white | black | blue |
|
|
|
|
|
|
|
SM单模 SM | MM 千兆多模 OM1,OM2 MM（OM1/OM2） | MM万兆多模OM3 OM3 | MM万兆多模OM4 OM4 | 订制色 customized | 订制色 customized | 订制色 customized |
