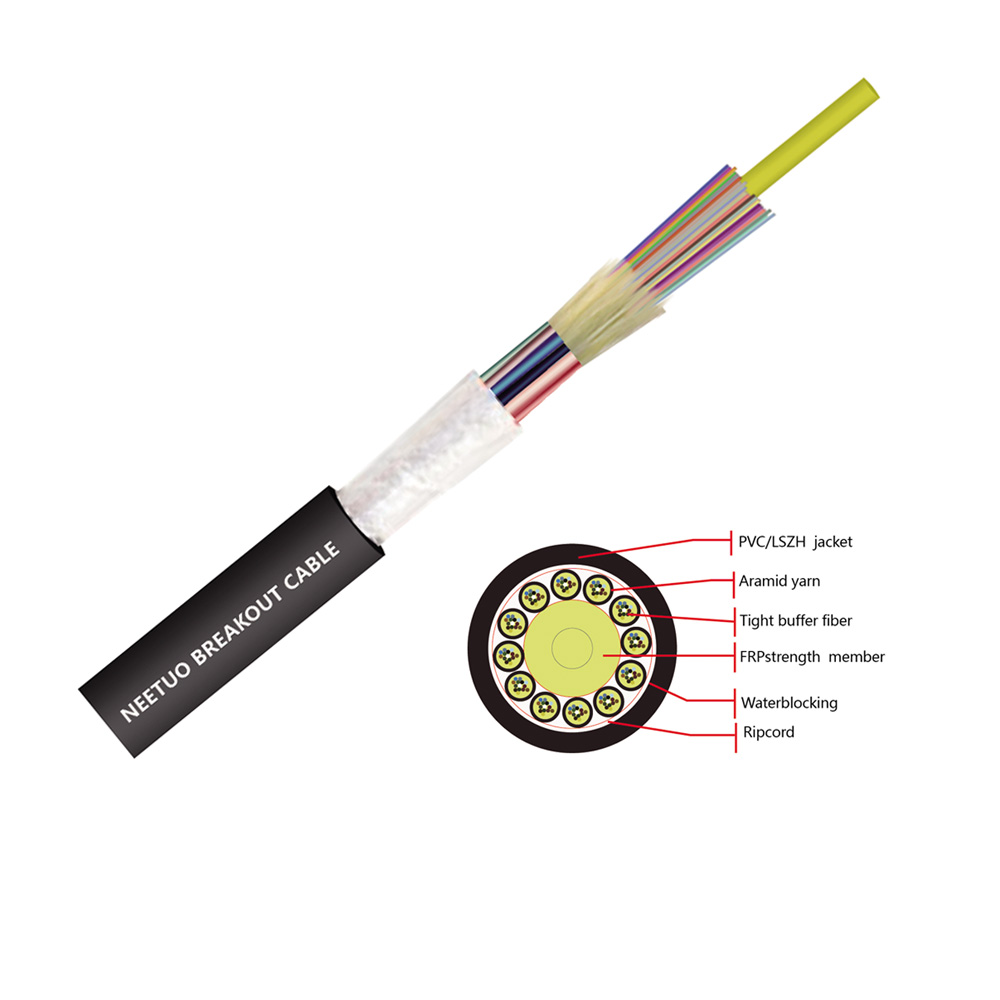

GJFJV Indoor multi-cores fan-out cable （with multi-core cables）III
It’s easier to be installed and maintained wit one tube for multi-cores.
It’s soft with small bending ratio and easily to be stripped.
High strength aramid yarn offers high tensile strength
Flame-retardant.
Good stability performance with high and low temperatures
Characteristics:
It’s easier to be installed and maintained wit one tube for multi-cores.
It’s soft with small bending ratio and easily to be stripped.
High strength aramid yarn offers high tensile strength
Flame-retardant.
Good stability performance with high and low temperatures.
Applications:
Indoor pipe wiring system.
MPO/MTP HIGH DENSITY WIRING SYSTEM.
Patch cords and pigtails.
Connecting for indoor equipment.
Temperatures：
PVC：A:-20℃~ +70 ℃ B:-20℃ ~+90℃
Hytrel: -40℃~+120℃
LSZH：-20℃~+70℃
Nylon：-40℃~+120℃
Specification:
fiber count | （mm）outer diameter | （g/M）weight | （N）tension | （MM）MIn.bending radius | （N/100mm2） crush resistance | ||
| long time | short time | static | Dynamic | |||
12 | 3.0±0.2 | 7.8 | 150 | 150 | 20D | 10D | 1000 |
24 | 4.2±7.6 | 31 | 300 | 300 | 20D | 10D | 1000 |
48 | 9.0±0.5 | 79 | 600 | 500 | 20D | 10D | 1000 |
72 | 11.2±0.5 | 126 | 1000 | 1000 | 20D | 10D | 1000 |
96 | 13.5±0.5 | 178 | 1000 | 1000 | 20D | 10D | 1000 |
144 | 13.5±0.5 | 285 | 1000 | 1000 | 20D | 10D | 1000 |
288 | 21.8±0.8 | 350 | 1000 | 1000 | 20D | 10D | 1000 |
12 colors of bare fibers:
blue | orange | green | brown | gray | white | red | black | yellow | purple | pink | Aqua |
Color of the jacket:
yellow | orange | Aqua | Purple | white | black | blue |
|
|
|
|
|
|
|
SM单模 SM | MM 千兆多模 OM1,OM2 MM（OM1/OM2） | MM万兆多模OM3 OM3 | MM万兆多模OM4 OM4 | 订制色 customized | 订制色 customized | 订制色 customized |
