CAT7 S/FTP Network Cable

Cat7 S/FTP cable is designed as a standard for 10 Gigabit Ethernet over 100m of copper cabling. It has a higher bandwidth of up to 600MHz and backwards compatible with traditional Cat5e, Cat6 and Cat6a Ethernet.

Description
Inquiry

Note: Neetuo produces and supplies the LAN Cable CM,CMR and CMP in accordance with the standard of ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, however,Neetuo is not UL listed, we didn’t pay for the certification.

Product Brief Introduction:

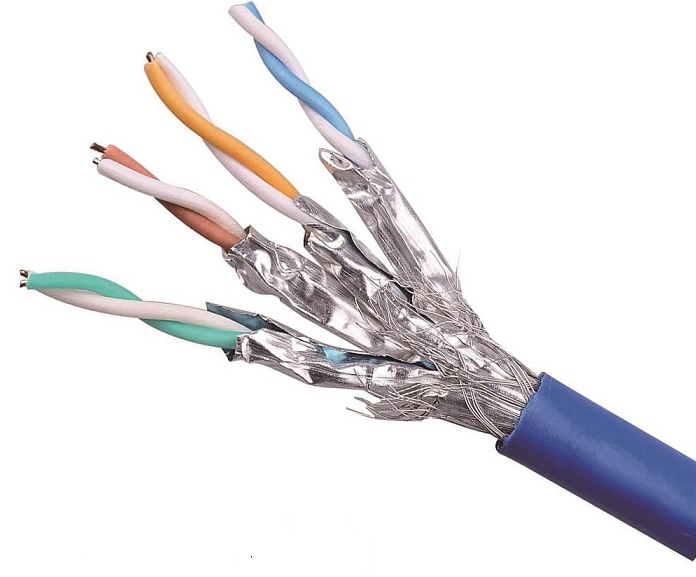

This Cable is with 4Paris twisted copper wire,every individual pair is shielded by an Mylar foil,the cores are overally shieled by tinned copper wire braiding layer,and covered with PVC or LSZH jacket.

This cable offers extensive shielding to reduce signal attenuation and is relatively stiff in comparison to previous generations of cabling. It is great for datacenters, server rooms, and telecommunications rooms.

Neetuo Cat7 S/FTP bulk cable tested for compliance with all ANSI/TIA-568.2-D Category7 specifications.All materials are RoHS compliant, we can offer the CAT7 cables with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

Printing Mark	NEETUO LAN CABLE CAT7 S/FTP 23AWG COPPER
Packing	305m in roll in drum

Standard:

ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568

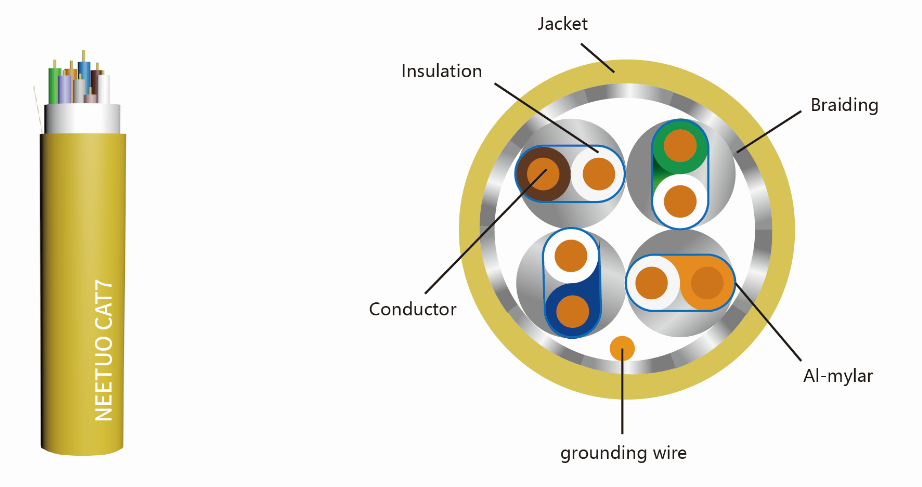

Construction
Conductor
Conductor material	Oxgen free copper (99.97% purity)
Conductor structure	Solid 0.575mm±0.02mm
Insulation
Insulation material	HDPE
Average insulation thickness	0.22
Insulation OD ±0.0mm	0.98
Color	(Blue,White/Blue),(organge,white/orange),(green,white/green),(brown,white/brown)
Grounding Wire
Material	Oxgen free copper (99.97% purity)
Size	0.45
Shielding
Pair shielding	Al-mylar
Overall Foil
Braiding	Tinned Copper Wire or Al-mg alloy wire ,above 85% coverage
Rip Cord
Material	Polymeter
Size	500D
Sheath
Sheath material	PVC/LSZH
Average thickness of sheath	1.0mm
Overall outer diameter	7.6mm±0.2mm
Color	Differrent colores are available
Electrical Characteristics
SingleConductor resistance	≤9.38Ω/100m
Min Insulation Resistance	5000MΩ.KM
Max DCR Unbulance	3%
Max Mutual Capacitance	5.8PF/M
Max Capacitance Unbalance	30 PF/100M
Characteristic Impedance@1-100MHZ	100±Ω
Max Propagation delay skew	18NS/100M
Max DC ResistanceUnbalance	2%(pair intra),4%(pair inter)
Dielectric Strength	No breakdown with 1kv DC for 1min
Rated voltage	30V
Withstand voltage	500V
Temperature	80℃
Mechanical
Tensile strength	Jacket≥17MPa，Insulation≥16MPa
Elongation at Break	Sheath≥150%,Insulation≥300%
Installation Bending Radius	>8times of OD
Conductor Elongation at Break	≥10%
Transmission
Characteristics Impedance	100±15Ω
Near End Cross Talk	≥34.82dB/500 m@500MHZ
Max Attenuation	≤42.7dB/500 m@500MHZ
Return Lose	≥17.3dB/500 m@500MHZ
Temperature
Operation Temperature	-20℃ to + 60℃
Installation Temperature	0℃ to + 50℃
Storage Temperature	-20℃ to + 50℃
