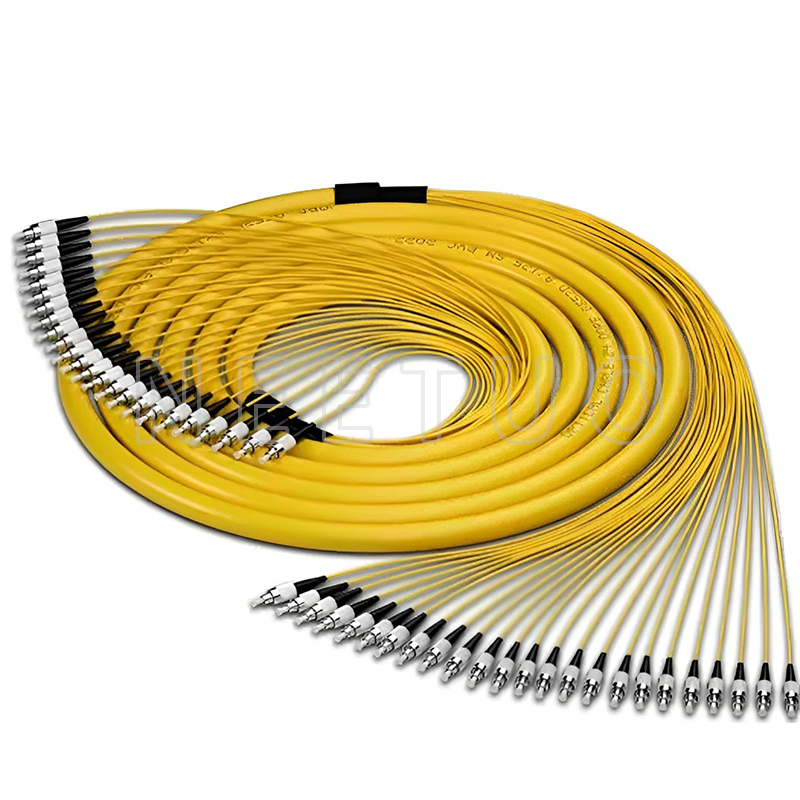

24C FC UPC-FC UPC Breakout Cable Patch Cord
Part#: NT-OFBRPC-24SMD-FCUPC-FCUPC The breakout cable consists of multiple 2.0mm sub-units bundled together, each sub-unit is with jacket wraping fiber,each fiber IS factory-terminated by connector:SC,LC,FC,ST. 4C,6C,8C,12C,24C,48C are all available.
Product Brief Introduction:
The breakout cable consists of multiple 2.0mm sub-units bundled together, each sub-unit is with jacket wraping fiber,each fiber is factory-terminated by connector:SC,LC,FC,ST. 4C,6C,8C,12C,24C,48C are all available.
Neetuo uses precision ferrules and component, our production process is strict in accordance with standard process, 5 times grindings,2times end inspections and 100% insertion lose inspection, top grade material plus standard production process make even single piece of our patch cord exceed international standard on property values.
Specification:
End A | 24PCS single mode FC/UPC | End B | 24PCS single mode FC/UPC |
Ferrule | Branded Ceramic Ferrule | Cable length | 3M-150M |
Branch Length | 50cm | OD of sub unit | 2.0mm |
Fiber Type | G652D | Wave length | 1310/1550nm |
Cable OD: | 6.0mm | Jacket | PVC / LSZH Flame retardant |
Insertion Lose | ＜0.3dB | Return Lose | ＞50dB |
Working Temperature | -40℃-+70℃ | Plug times | ＞1000 |
Other options | 4C to 48C,Jacket:PVC,OFNR,OFNP | ||
Features:
● Low Insertion Lose,Durable;
● Precision grinding;
● RoHS compliant material;
● Standard production process;
● Every piece to be tested, 100% pass before delivery.
● Singlemode or Multimode
● PVC,LSZH,OFNP,OFNR
