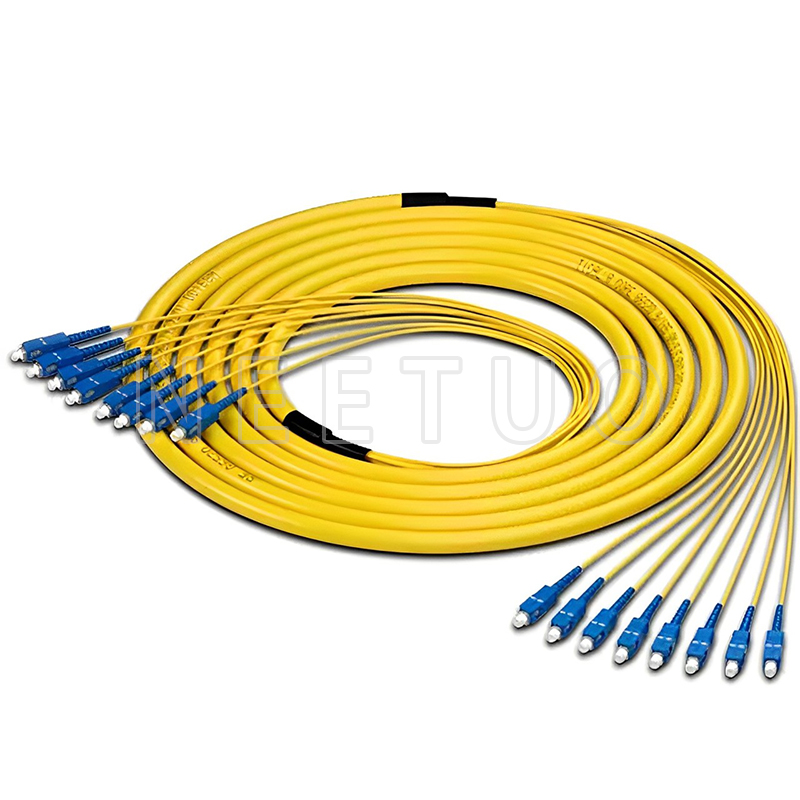

8C SC UPC-SC UPC Breakout Cable Patch Cord

Part#: NT-OFBRPC-8SMD-SCUPC-SCUPC The breakout cable consists of multiple 2.0mm sub-units bundled together, each sub-unit is with jacket wraping fiber,each fiber IS factory-terminated by connector:SC,LC,FC,ST. 4C,6C,8C,12C,24C,48C are all available.

Description
Inquiry

Product Brief Introduction:

The breakout cable consists of multiple 2.0mm sub-units bundled together, each sub-unit is with jacket wraping fiber,each fiber is factory-terminated by connector:SC,LC,FC,ST. 4C,6C,8C,12C,24C,48C are all available.


Neetuo uses precision ferrules and component, our production process is strict in accordance with standard process, 5 times grindings,2times end inspections and 100% insertion lose inspection, top grade material plus standard production process make even single piece of our patch cord exceed international standard on property values.

Specification:

End A	8PCS single mode SC/UPC	End B	8PCS single mode SC/UPC
Ferrule	Branded Ceramic Ferrule	Cable length	3M-150M
Branch Length	50cm	OD of sub unit	2.0mm
Fiber Type	G652D	Wave length	1310/1550nm
Cable OD:	6.0mm	Jacket	PVC / LSZH Flame retardant
Insertion Lose	＜0.3dB	Return Lose	＞50dB
Working Temperature	-40℃-+70℃	Plug times	＞1000
Other options	4C to 48C,Jacket:PVC,OFNR,OFNP
